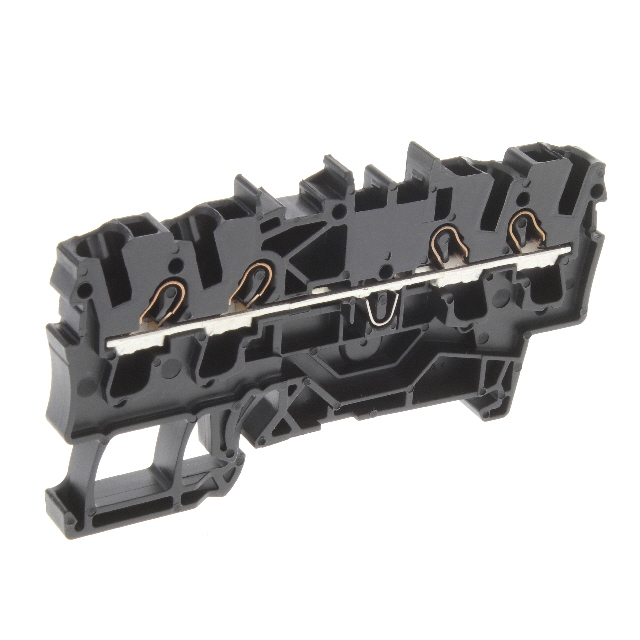

DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 22 AWG, 12 AWG, 2.5 MM², CLAMP, 24 A
Deep-Dive with AI
Search across all available documentation for this part.
2002-1405
ActiveWAGO Corporation
DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 22 AWG, 12 AWG, 2.5 MM², CLAMP, 24 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2002-1405 | 2002 Series |
|---|---|---|
| Color | Black | Gray, Green, Yellow, Blue, Black, Red |
| Current - IEC | 32 A | 6.3 - 32 A |
| Current - UL | 20 A | 6.3 - 20 A |
| Disconnect Type | - | Fuse, Lever, Removable Plug, Switch, Knife |
| Features | - | LED, LED Indicator |
| For Use With/Related Products | - | TOPJOB®S Series |
| Fuse Type | - | 20 mm |
| Fuse Type | - | 5 mm |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 | 1 - 3 |
| Number of Levels | - | Connected |
| Number of Levels | - | 3 |
| Number of Positions | 4 | 1 - 10 |
| Stripping Length [Max] | 12 mm | 12 mm |
| Stripping Length [Min] | 10 mm | 10 mm |
| Style | - | Flat Pins |
| Terminal - Width [y] | 5.2 mm | 5.2 - 6.2 mm |
| Termination Style | Push In, Spring | Push In, Spring |
| Type | Feed Through | End Plate, Feed Through, Disconnect, Terminal Block, Cross Connection, Ground, Earth, Component Plug |
| Voltage - IEC | 800 V | 250 - 800 V |
| Voltage - UL | 600 V | 30 - 600 V |
| Voltage - UL | - | 250 V |
| Voltage - UL | - | 300 V |
| Wire Gauge or Range - AWG [Max] | 18 AWG | 18 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG | 12 AWG |
| Wire Gauge or Range - mm˛ | - | 4 mm˛ |
| Wire Gauge or Range - mm˛ | - | 0.75 mm˛ |
| Wire Gauge or Range - mm² [Max] | 4 mm² | 4 mm² |
| Wire Gauge or Range - mm² [Min] | 0.75 mm² | 0.75 - 1 mm² |
2002 Series
END / INTERMEDIATE PLATE, FOR USE WITH 22 (TOPJOB S RAIL-MOUNTED TERMINAL BLOCKS), GREY
...
| Part | Color | For Use With/Related Products | Type | Material - Insulation | Current - UL | Stripping Length [Min] | Stripping Length [Max] | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Current - IEC | Termination Style | Voltage - IEC | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Number of Positions | Voltage - UL | Terminal - Width [y] | Number of Levels | Voltage - UL [custom] | Fuse Type [y] | Fuse Type [x] | Wire Gauge or Range - mm˛ [Max] | Wire Gauge or Range - mm˛ [Min] | Disconnect Type | Style | Voltage - UL [custom] | Features | Number of Levels | Number of Levels [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WAGO Corporation 2002-1291 | Gray | TOPJOB®S Series | End Plate | ||||||||||||||||||||||||||
WAGO Corporation 2002-2401 | Gray | Feed Through | Polyamide (PA66), Nylon 6/6 | 20 A | 10 mm | 12 mm | 12 AWG | 18 AWG | 28 A | Push In, Spring | 800 V | 0.75 mm² | 4 mm² | 8 | 600 V | 5.2 mm | 2 | ||||||||||||
WAGO Corporation 2002-1391 | Gray | TOPJOB®S Series | End Plate | ||||||||||||||||||||||||||
WAGO Corporation 2002-1611 | Gray | Disconnect | Polyamide (PA66), Nylon 6/6 | 6.3 A | 10 mm | 12 mm | 12 AWG | 18 AWG | 6.3 A | Push In, Spring | 250 V | 2 | 6.2 mm | 1 | 250 V | 20 mm | 5 mm | 4 mm˛ | 0.75 mm˛ | Fuse, Lever | |||||||||
WAGO Corporation 2002-6301 | Gray | Feed Through | Polyamide (PA66), Nylon 6/6 | 20 A | 10 mm | 12 mm | 12 AWG | 18 AWG | 32 A | Push In, Spring | 800 V | 0.75 mm² | 4 mm² | 600 V | 5.2 mm | 1 | |||||||||||||
WAGO Corporation 2002-493 | Gray | TOPJOB®S Series | Terminal Block, Cross Connection | 1 | Flat Pins | ||||||||||||||||||||||||
WAGO Corporation 2002-2208 | Gray | Feed Through | Polyamide (PA66), Nylon 6/6 | 20 A | 10 mm | 12 mm | 12 AWG | 18 AWG | 28 A | Push In, Spring | 500 V | 0.75 mm² | 4 mm² | 4 | 5.2 mm | 2 | 300 V | ||||||||||||
WAGO Corporation 2002-6391 | Gray | TOPJOB®S Series | End Plate | ||||||||||||||||||||||||||
WAGO Corporation 2002-992 | TOPJOB®S Series | End Plate | |||||||||||||||||||||||||||
WAGO Corporation 2002-406 | Gray | TOPJOB®S Series | Terminal Block, Cross Connection | 6 | Flat Pins |
