TPIC2060ADFDRG4
ActiveSERIAL INTERFACE CONTROLLED 9-CH MOTOR DRIVER FOR OPTICAL DISK DRIVE
Deep-Dive with AI
Search across all available documentation for this part.
TPIC2060ADFDRG4
ActiveSERIAL INTERFACE CONTROLLED 9-CH MOTOR DRIVER FOR OPTICAL DISK DRIVE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TPIC2060ADFDRG4 |
|---|---|
| Applications | Media Player |
| Current - Output | 1.7 A, 400 mA |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | SPI |
| Motor Type - AC, DC | Brushed DC, Brushless DC (BLDC) |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Output Configuration | Half Bridge (19) |

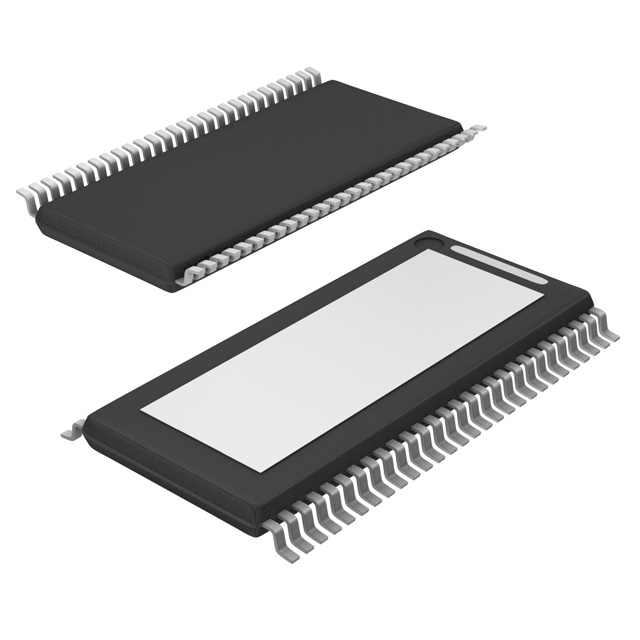

| Package / Case | 56-PowerTSSOP |
| Supplier Device Package | 56-HTSSOP |
| Technology | Power MOSFET |
| Voltage - Load | 5 VDC, 12 V |
| Voltage - Supply | 5 V, 3.3 V, 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPIC2060A Series
Serial interface controlled 9-ch motor driver for optical disk drive
| Part | Interface | Motor Type - AC, DC | Current - Output | Package / Case | Applications | Voltage - Supply | Function | Technology | Output Configuration | Supplier Device Package | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Load |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPIC2060ADFDRG4The TPIC2060A is a low-noise motor driver IC suitable for 12-V ODD. The 9-channel driver IC controlled by a serial interface is optimized for driving a spindle motor, a sled motor (stepping motor applicable), a load motor, focus / tracking / tilt actuators, and stepping motor for collimator lens.
This IC has an integrated current sense resistance that measures SPM current, which reduces drive system costs. The spindle motor driver part builds in sensorless logic, which attains low-noise operation at the start and run times. The user does not need to self-start the device using the starting circuit or perform position detection by BEMF of a motor or sensors such as a Hall device. As the output stage of all channels works in efficient PWM driving, the user can attain low-power operation by PWM control. Dead-zone-less control is possible for a focus / tracking / tilt actuator driver. In addition, the spindle part output current limiting circuit, the thermal shutdown circuit, the sled-end detection circuit, collimator-lens-end detection circuit, actuator protection, and pre-driver for a 9-V LDO are built in. The newly added, built-in thermometer measures IC temperature.
The TPIC2060A is a low-noise motor driver IC suitable for 12-V ODD. The 9-channel driver IC controlled by a serial interface is optimized for driving a spindle motor, a sled motor (stepping motor applicable), a load motor, focus / tracking / tilt actuators, and stepping motor for collimator lens.
This IC has an integrated current sense resistance that measures SPM current, which reduces drive system costs. The spindle motor driver part builds in sensorless logic, which attains low-noise operation at the start and run times. The user does not need to self-start the device using the starting circuit or perform position detection by BEMF of a motor or sensors such as a Hall device. As the output stage of all channels works in efficient PWM driving, the user can attain low-power operation by PWM control. Dead-zone-less control is possible for a focus / tracking / tilt actuator driver. In addition, the spindle part output current limiting circuit, the thermal shutdown circuit, the sled-end detection circuit, collimator-lens-end detection circuit, actuator protection, and pre-driver for a 9-V LDO are built in. The newly added, built-in thermometer measures IC temperature. | SPI | Brushed DC, Brushless DC (BLDC) | 1.7 A, 400 mA | 56-PowerTSSOP | Media Player | 3.3 V, 5 V, 12 VDC | Driver - Fully Integrated, Control and Power Stage | Power MOSFET | Half Bridge (19) | 56-HTSSOP | Surface Mount | -20 °C | 70 °C | 5 VDC, 12 V |
Description
General part information
TPIC2060A Series
The TPIC2060A is a low-noise motor driver IC suitable for 12-V ODD. The 9-channel driver IC controlled by a serial interface is optimized for driving a spindle motor, a sled motor (stepping motor applicable), a load motor, focus / tracking / tilt actuators, and stepping motor for collimator lens.
This IC has an integrated current sense resistance that measures SPM current, which reduces drive system costs. The spindle motor driver part builds in sensorless logic, which attains low-noise operation at the start and run times. The user does not need to self-start the device using the starting circuit or perform position detection by BEMF of a motor or sensors such as a Hall device. As the output stage of all channels works in efficient PWM driving, the user can attain low-power operation by PWM control. Dead-zone-less control is possible for a focus / tracking / tilt actuator driver. In addition, the spindle part output current limiting circuit, the thermal shutdown circuit, the sled-end detection circuit, collimator-lens-end detection circuit, actuator protection, and pre-driver for a 9-V LDO are built in. The newly added, built-in thermometer measures IC temperature.
The TPIC2060A is a low-noise motor driver IC suitable for 12-V ODD. The 9-channel driver IC controlled by a serial interface is optimized for driving a spindle motor, a sled motor (stepping motor applicable), a load motor, focus / tracking / tilt actuators, and stepping motor for collimator lens.
