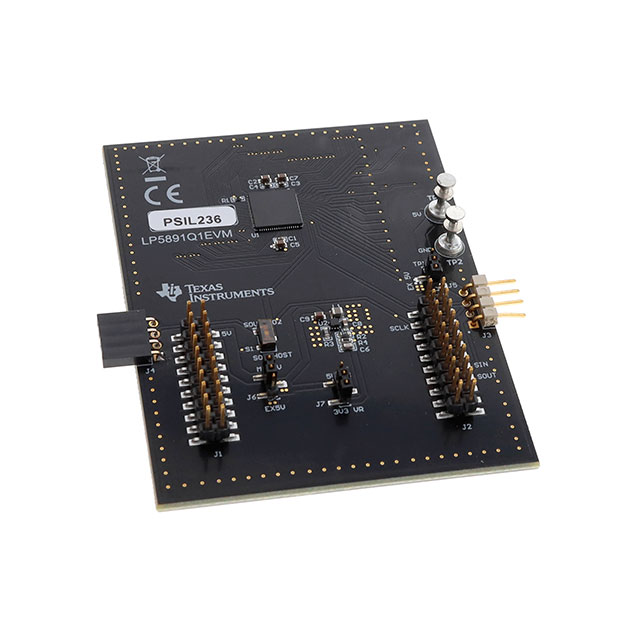

LP5891Q1EVM
ActiveTexas Instruments
EVAL BOARD FOR LP5891-Q1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LP5891Q1EVM
ActiveTexas Instruments
EVAL BOARD FOR LP5891-Q1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LP5891Q1EVM | LP5891 Series |
|---|---|---|
| - | - | |
| Applications | - | Backlight |
| Current - Output / Channel | 20 mA | 20 mA |
| Dimming | - | PWM |
| Features | Dimmable | Dimmable |
| Internal Switch(s) | - | True |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 48 |
| Operating Temperature | - | -55 - -40 C |
| Operating Temperature | - | 85 - 125 °C |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 48 | 48 |
| Package / Case | - | 76-VFQFN Exposed Pad, 96-TFBGA |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 76-VQFN (9x9), 96-NFBGA (6x6) |
| Type | - | Linear |
| Utilized IC / Part | LP5891-Q1 | LP5891-Q1 |
| Voltage - Input [Max] | 5.5 V | 5.5 V |
| Voltage - Input [Min] | 2.5 V | 2.5 V |
| Voltage - Supply (Max) | - | 5.5 V |
| Voltage - Supply (Min) | - | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
LP5891 Series
EVAL BOARD FOR LP5891-Q1
| Part | Features | Outputs and Type | Outputs and Type | Utilized IC / Part | Supplied Contents | Current - Output / Channel | Voltage - Input [Min] | Voltage - Input [Max] | Type | Voltage - Supply (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Applications | Dimming | Voltage - Supply (Min) [Min] | Package / Case | Supplier Device Package | Internal Switch(s) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Dimmable | Non-Isolated | 48 | LP5891-Q1 | Board(s) | 20 mA | 2.5 V | 5.5 V | |||||||||||||
Texas Instruments LP5891MRRFRThe LP5891 is a highly integrated, common-cathode LED matrix driver with 48 constant current sources and 16 scanning FETs. The LP5891 implements a high speed rising-edge transmission interface to support high device count daisy-chained while minimizing electrical-magnetic interference (EMI) and internal GCLK rate ranges from 40 MHz to 160 MHz. The device also implements LED open/weak-short/short detections and removals during operations.
The LP5891 is a highly integrated, common-cathode LED matrix driver with 48 constant current sources and 16 scanning FETs. The LP5891 implements a high speed rising-edge transmission interface to support high device count daisy-chained while minimizing electrical-magnetic interference (EMI) and internal GCLK rate ranges from 40 MHz to 160 MHz. The device also implements LED open/weak-short/short detections and removals during operations. | 20 mA | Linear | 5.5 V | -55 C | 125 °C | 48 | Backlight | PWM | 2.5 V | 76-VFQFN Exposed Pad | 76-VQFN (9x9) | Surface Mount | ||||||||
Texas Instruments LP5891ZXLRThe LP5891 is a highly integrated, common-cathode LED matrix driver with 48 constant current sources and 16 scanning FETs. The LP5891 implements a high speed rising-edge transmission interface to support high device count daisy-chained while minimizing electrical-magnetic interference (EMI) and internal GCLK rate ranges from 40 MHz to 160 MHz. The device also implements LED open/weak-short/short detections and removals during operations.
The LP5891 is a highly integrated, common-cathode LED matrix driver with 48 constant current sources and 16 scanning FETs. The LP5891 implements a high speed rising-edge transmission interface to support high device count daisy-chained while minimizing electrical-magnetic interference (EMI) and internal GCLK rate ranges from 40 MHz to 160 MHz. The device also implements LED open/weak-short/short detections and removals during operations. | 20 mA | Linear | 5.5 V | -40 °C | 85 °C | 48 | Backlight | PWM | 2.5 V | 96-TFBGA | 96-NFBGA (6x6) | Surface Mount |
Description
General part information
LP5891 Series
LP5891-Q1 48, Non-Isolated Outputs LED Driver Evaluation Board
