AA3528ZGCK

Active

Kingbright

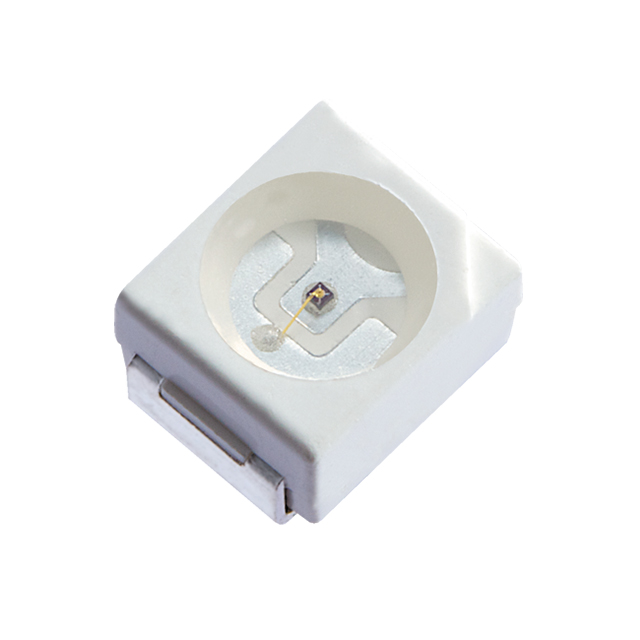

LED GREEN CLEAR 2SMD

AA3528ZGCK

Active

Kingbright

LED GREEN CLEAR 2SMD

Description Specifications Series Pricing CAD Documents

Description

General part information

AA3528 Series

Green 525nm LED Indication - Discrete 3.3V 2-PLCC

Technical Specifications

Parameters and characteristics for this part

Specification	AA3528ZGCK

Color	Green
Configuration	Independent
Current - Test	20 mA
Height (Max)	2.15 mm
Lens Color	Colorless
Lens Diameter	2.4 mm
Lens Style	Round, Flat Top
Lens Transparency	Clear
Millicandela Rating	1000 mcd
Mounting Type	Surface Mount
Package / Case	2-PLCC
Package Name	2-SMD
Size / Dimension Length	3.2 mm
Size / Dimension Width	2.8 mm
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.3 V
Wavelength - Dominant	525 nm
Wavelength - Peak	515 nm

AA3528 Series

Part	Voltage - Forward (Vf) (Typ)	Color	Mounting Type	Lens Style	Current - Test	Wavelength - Dominant	Package / Case	Lens Diameter	Viewing Angle	Configuration	Lens Transparency	Size / Dimension Width	Size / Dimension Length	Lens Color	Height (Max)	Wavelength - Peak	Package Name	Millicandela Rating	Orientation	Current - DC Forward (If) (Max)	Radiant Intensity (Ie) Min	Operating Temperature (Max)	Operating Temperature (Min)	Type	Wavelength	Current - Dark (Id) (Max)	Power - Max	Voltage - Collector Emitter Breakdown (Max)
Kingbright AA3528SRS	1.85 V	Red	Surface Mount	Flat Top Round	20 mA	640 nm	2-PLCC	2.4 mm	120 °	Standard	Clear	2.8 mm	3.2 mm	Colorless	2.1 mm	660 nm	SMD	150 mcd
Kingbright AA3528SECKT/J3	2.2 V	Red	Surface Mount	Flat Top Round	20 mA	625 nm	2-PLCC	2.4 mm	120 °	Independent	Clear	2.8 mm	3.2 mm	Colorless	2.15 mm	640 nm	2-SMD	1500 mcd
Kingbright AA3528QWC/D09			Surface Mount				2-PLCC					2.8 mm	3.2 mm				SMD
Kingbright AA3528QBS/D09	3.3 V	Blue	Bottom Entry Surface Mount	Flat Top Round	20 mA	465 nm	2-SMD Gull Wing	2.4 mm	120 °		Clear	2.8 mm	3.2 mm	Colorless	2.15 mm	460 nm	SMD	150 mcd
Kingbright AA3528ZGCKT09	3.3 V	Green	Bottom Entry Surface Mount	Flat Top Round	20 mA	525 nm	2-SMD Gull Wing	2.4 mm	120 °		Clear	2.8 mm	3.2 mm	Colorless	2.15 mm	515 nm	SMD	1000 mcd
Kingbright AA3528SF4S-R	1.3 V		Surface Mount				2-PLCC		120 °										Top View	50 mA	1.2 mW/sr	85 °C	-40 °C	Infrared (IR)	880 nm
Kingbright AA3528VRBXS/A-SC-AMT	3.3 V	Blue	Surface Mount	Flat Top Round	20 mA		2-PLCC	2.4 mm	120 °	Standard	Clear	2.8 mm	3.2 mm	Colorless	2.1 mm		2-PLCC	1300 mcd
Kingbright AA3528ZGCK	3.3 V	Green	Surface Mount	Flat Top Round	20 mA	525 nm	2-PLCC	2.4 mm	120 °	Independent	Clear	2.8 mm	3.2 mm	Colorless	2.15 mm	515 nm	2-SMD	1000 mcd
Kingbright AA3528-PZ83
Kingbright AA3528P3S			Surface Mount				2-PLCC												Top View			85 °C	-40 °C			100 nA	100 mW	30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

AA3528ZGCK | Datasheet
