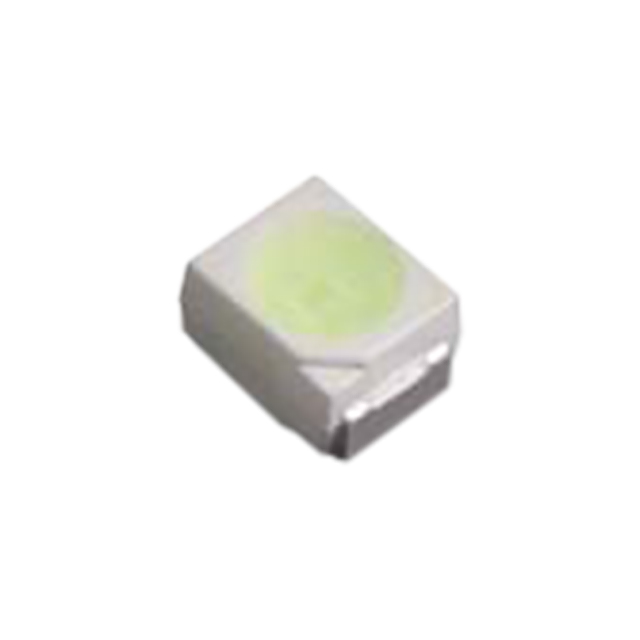

AA3528VRBXS/A-SC-AMT

Active

Kingbright

LED BLUE CLEAR 2PLCC SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AA3528VRBXS/A-SC-AMT

Color	Blue
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	2.1 mm
Lens Color	Colorless
Lens Size [diameter]	2.4 mm
Lens Transparency	Clear
Millicandela Rating	1300 mcd
Mounting Type	Surface Mount
Package / Case	2-PLCC
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	2.8 mm
Supplier Device Package	2-PLCC
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.3 V

AA3528 Series

Part	Viewing Angle	Millicandela Rating	Configuration	Mounting Type	Lens Transparency	Supplier Device Package	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Color	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Current - Test	Lens Color	Lens Size [diameter]	Wavelength - Peak	Wavelength - Dominant	Wavelength - Peak [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Dark (Id) (Max) [Max]	Orientation	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Current	Lens Type	Lens Size	Lens Size	Lens Style	Voltage Rating
Kingbright AA3528SRS	120 °	150 mcd	Standard	Surface Mount	Clear	SMD	2-PLCC	2.8 mm	3.2 mm	Red	1.85 V	2.1 mm	20 mA	Colorless	2.4 mm	660 nm	640 nm
Kingbright AA3528SECKT/J3	120 °	1500 mcd	Independent	Surface Mount	Clear	2-SMD	2-PLCC	2.8 mm	3.2 mm	Red	2.2 V	2.15 mm	20 mA	Colorless	2.4 mm		625 nm	640 nm
Kingbright AA3528QWC/D09				Surface Mount		SMD	2-PLCC	2.8 mm	3.2 mm
Kingbright AA3528ZGCKT09	120 °	1000 mcd		Surface Mount Bottom Entry	Clear	SMD	2-SMD Gull Wing	2.8 mm	3.2 mm	Green	3.3 V	2.15 mm	20 mA	Colorless	2.4 mm	515 nm	525 nm
Kingbright AA3528VRBXS/A-SC-AMT	120 °	1300 mcd	Standard	Surface Mount	Clear	2-PLCC	2-PLCC	2.8 mm	3.2 mm	Blue	3.3 V	2.1 mm	20 mA	Colorless	2.4 mm
Kingbright AA3528ZGCK	120 °	1000 mcd	Independent	Surface Mount	Clear	2-SMD	2-PLCC	2.8 mm	3.2 mm	Green	3.3 V	2.15 mm	20 mA	Colorless	2.4 mm	515 nm	525 nm
Kingbright AA3528-PZ83
Kingbright AA3528P3S				Surface Mount			2-PLCC												85 °C	-40 °C	100 nA	Top View	30 V	100 mW
Kingbright AA3528AVU/ASRS	50 °	18 mcd		Surface Mount Right Angle						Red								640 nm							10 mA	Clear	3 mm	T-1	Round with Domed Top	1.8 V
Kingbright AA3528AEC	120 °	30 mcd	Standard	Surface Mount	Clear	SMD	2-PLCC	2.8 mm	3.2 mm	Red	2 V	2.1 mm	20 mA	Colorless	2.4 mm	627 nm	625 nm
