GBSX-8
ActiveCurtis Industries

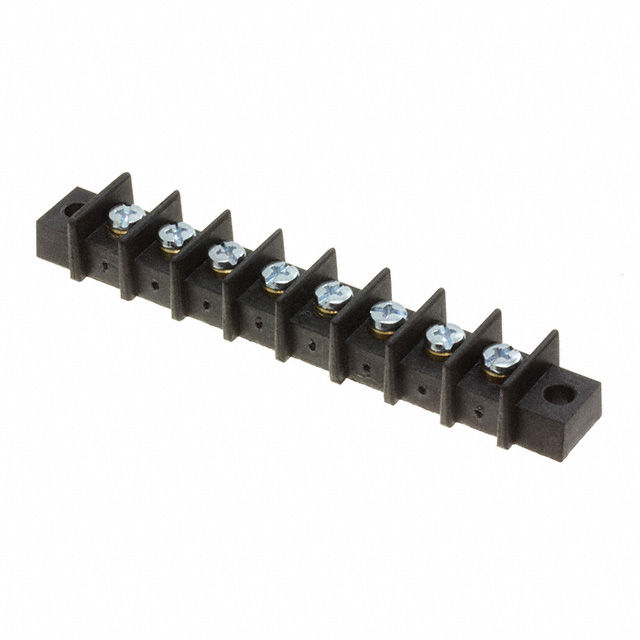

CONN BARRIER STRIP 8CIRC 0.438"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GBSX-8
ActiveCurtis Industries
CONN BARRIER STRIP 8CIRC 0.438"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | GBSX-8 | GBSX Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | Closed | Closed |
| Color | Black | Black |
| Current Rating (Amps) | 20 A | 20 A |
| Features | Flange | Flange |
| Material - Insulation | Polyphenylene Oxide (PPO) | Polyphenylene Oxide (PPO) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel, Chassis | Panel, Chassis |
| Number of Circuits | - | 1 - 26 |
| Number of Circuits [custom] | 8 | 8 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 8 | 3 - 26 |
| Number of Wire Entries | - | 1 |
| Operating Temperature | 110 °C | 110 °C |
| Pitch [x] | 11.12 mm | 11.12 mm |
| Pitch [x] | 0.438 in | 0.438 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
GBSX Series
CONN BARRIER STRP 11CIRC 0.438"
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Top Termination | Terminal Block Type | Pitch [x] | Pitch [x] | Color | Number of Circuits | Material - Insulation | Material Flammability Rating | Mounting Type | Number of Rows | Current Rating (Amps) | Bottom Termination | Operating Temperature | Number of Wire Entries | Features | Terminal Screw Material | Barrier Type | Number of Wire Entries [custom] | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries GBSX-11 | 12 AWG | 22 AWG | Screws | Barrier Block | 11.12 mm | 0.438 in | Black | 11 | Polyphenylene Oxide (PPO) | UL94 V-0 | Chassis, Panel | 1 | 20 A | Closed | 110 °C | 11 | Flange | Steel | 2 Wall (Dual) | ||
Curtis Industries GBSX-10 | 12 AWG | 22 AWG | Screws | Barrier Block | 11.12 mm | 0.438 in | Black | 10 | Polyphenylene Oxide (PPO) | UL94 V-0 | Chassis, Panel | 1 | 20 A | Closed | 110 °C | 10 | Flange | Steel | 2 Wall (Dual) | ||
Curtis Industries GBSX-1 | 12 AWG | 22 AWG | Screws | Barrier Block | Black | 1 | Polyphenylene Oxide (PPO) | UL94 V-0 | Chassis, Panel | 1 | 20 A | Closed | 110 °C | Flange | Steel | 2 Wall (Dual) | 1 | ||||
Curtis Industries GBSX-4 | 12 AWG | 22 AWG | Screws | Barrier Block | 11.12 mm | 0.438 in | Black | 4 | Polyphenylene Oxide (PPO) | UL94 V-0 | Chassis, Panel | 1 | 20 A | Closed | 110 °C | 4 | Flange | Steel | 2 Wall (Dual) | ||
Curtis Industries GBSX-8 | 12 AWG | 22 AWG | Screws | Barrier Block | 11.12 mm | 0.438 in | Black | Polyphenylene Oxide (PPO) | UL94 V-0 | Chassis, Panel | 1 | 20 A | Closed | 110 °C | 8 | Flange | Steel | 2 Wall (Dual) | 8 | ||
Curtis Industries GBSX-13 | 12 AWG | 22 AWG | Screws | Barrier Block | 11.12 mm | 0.438 in | Black | 13 | Polyphenylene Oxide (PPO) | UL94 V-0 | Chassis, Panel | 1 | 20 A | Closed | 110 °C | 13 | Flange | Steel | 2 Wall (Dual) | ||
Curtis Industries GBSX-9 | 12 AWG | 22 AWG | Screws | Barrier Block | 11.12 mm | 0.438 in | Black | Polyphenylene Oxide (PPO) | UL94 V-0 | Chassis, Panel | 1 | 20 A | Closed | 110 °C | 9 | Flange | Steel | 2 Wall (Dual) | |||
Curtis Industries GBSX-5 | 12 AWG | 22 AWG | Screws | Barrier Block | 11.12 mm | 0.438 in | Black | 5 | Polyphenylene Oxide (PPO) | UL94 V-0 | Chassis, Panel | 1 | 20 A | Closed | 110 °C | 5 | Flange | Steel | 2 Wall (Dual) | ||
Curtis Industries GBSX-7 | 12 AWG | 22 AWG | Screws | Barrier Block | 11.12 mm | 0.438 in | Black | 7 | Polyphenylene Oxide (PPO) | UL94 V-0 | Chassis, Panel | 1 | 20 A | Closed | 110 °C | 7 | Flange | Steel | 2 Wall (Dual) | ||
Curtis Industries GBSX-20 | 12 AWG | 22 AWG | Screws | Barrier Block | 11.12 mm | 0.438 in | Black | 20 | Polyphenylene Oxide (PPO) | UL94 V-0 | Chassis, Panel | 1 | 20 A | Closed | 110 °C | 20 | Flange | Steel | 2 Wall (Dual) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.03 | |
| 10 | $ 9.45 | |||
| 25 | $ 9.02 | |||
| 50 | $ 8.11 | |||
| 100 | $ 7.68 | |||
| 250 | $ 6.96 | |||
| 500 | $ 6.48 | |||
| 1000 | $ 6.12 | |||
Description
General part information
GBSX Series
8 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
