6803232222F

Active

DIALIGHT

10MM HG/G PMI-6VDC

Search across all available documentation for this part.

Active

DIALIGHT

10MM HG/G PMI-6VDC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6803232222F	6803232 Series

Current	30 mA	30 mA
Lamp Color	Green	Green
Lens Size	-	12 mm
Millicandela Rating	4070 mcd	4070 - 25000 mcd
Panel Cutout Dimensions	-	0.41 in
Panel Cutout Dimensions	-	10.41 mm
Panel Cutout Dimensions	-	10.3 mm
Panel Cutout Dimensions	-	0.41 in
Panel Cutout Dimensions [custom]	0.37 in	0.37 in
Panel Cutout Dimensions [custom]	9.4 mm	9.4 mm
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Termination Style	Solder Lug	Solder Lug
Type	LED	LED
Viewing Angle	-	30 °
Voltage	6 V	6 - 24 V
Wavelength - Peak	-	525 nm

10MM HG/G PMI-6VDC

Part	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Lamp Color	Type	Current	Millicandela Rating	Ratings	Voltage	Panel Cutout Shape	Termination Style	Viewing Angle	Wavelength - Peak	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Lens Size [diameter]	Panel Cutout Dimensions	Panel Cutout Dimensions
DIALIGHT 6803232122F	0.41 in	10.41 mm	Green	LED	30 mA	4330 mcd	DC	6 V	Round	Solder Lug
DIALIGHT 6803232232F			Green	LED	30 mA	25000 mcd	DC	12 V		Solder Lug	30 °	525 nm
DIALIGHT 6803232222F			Green	LED	30 mA	4070 mcd	DC	6 V	Round	Solder Lug			0.37 in	9.4 mm
DIALIGHT 6803232142F			Green	LED	30 mA	25000 mcd	DC	24 V	Round	Solder Lug	30 °	525 nm			12 mm	10.3 mm	0.41 in
DIALIGHT 6803232132F			Green	LED	30 mA	25000 mcd	DC	12 V	Round	Solder Lug	30 °	525 nm			12 mm	10.3 mm	0.41 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	150	$ 5.93

General part information

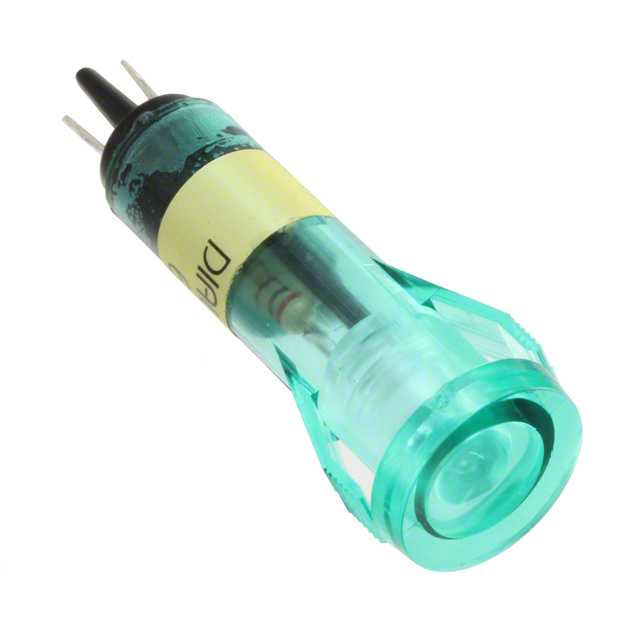

LED Panel Indicator Green 6V 30mA Solder Lug

Technical documentation and resources

No documents available
