6803232122F

Active

DIALIGHT

10MM HG/G PMI-6VDC

Search across all available documentation for this part.

Active

DIALIGHT

10MM HG/G PMI-6VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	150	$ 5.93

General part information

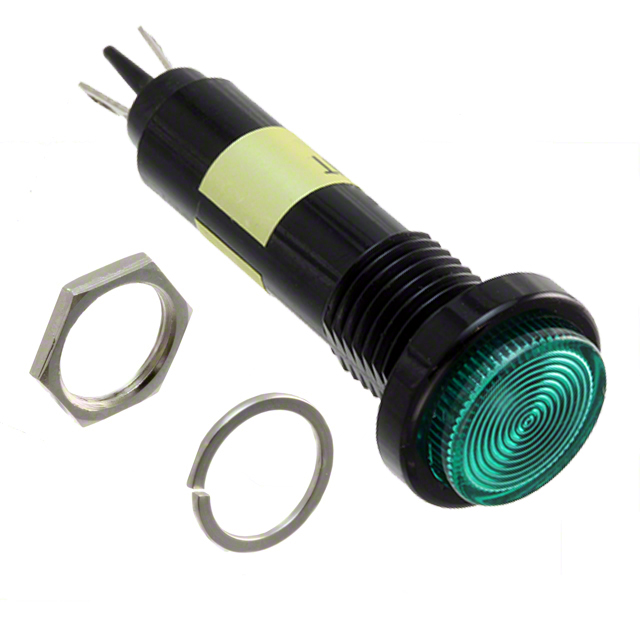

LED Panel Indicator Green 6V 30mA Solder Lug

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	6803232122F	6803232 Series

Current	30 mA	30 mA
Lamp Color	Green	Green
Lens Size	-	12 mm
Millicandela Rating	4330 mcd	4070 - 25000 mcd
Panel Cutout Dimensions	-	0.37 in
Panel Cutout Dimensions	-	9.4 mm
Panel Cutout Dimensions	-	10.3 mm
Panel Cutout Dimensions	-	0.41 in
Panel Cutout Dimensions [diameter]	0.41 in	0.41 in
Panel Cutout Dimensions [diameter]	10.41 mm	10.41 mm
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Termination Style	Solder Lug	Solder Lug
Type	LED	LED
Viewing Angle	-	30 °
Voltage	6 V	6 - 24 V
Wavelength - Peak	-	525 nm

10MM HG/G PMI-6VDC

Part	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Lamp Color	Type	Current	Millicandela Rating	Ratings	Voltage	Panel Cutout Shape	Termination Style	Viewing Angle	Wavelength - Peak	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Lens Size [diameter]	Panel Cutout Dimensions	Panel Cutout Dimensions
DIALIGHT 6803232122F	0.41 in	10.41 mm	Green	LED	30 mA	4330 mcd	DC	6 V	Round	Solder Lug
DIALIGHT 6803232232F			Green	LED	30 mA	25000 mcd	DC	12 V		Solder Lug	30 °	525 nm
DIALIGHT 6803232222F			Green	LED	30 mA	4070 mcd	DC	6 V	Round	Solder Lug			0.37 in	9.4 mm
DIALIGHT 6803232142F			Green	LED	30 mA	25000 mcd	DC	24 V	Round	Solder Lug	30 °	525 nm			12 mm	10.3 mm	0.41 in
DIALIGHT 6803232132F			Green	LED	30 mA	25000 mcd	DC	12 V	Round	Solder Lug	30 °	525 nm			12 mm	10.3 mm	0.41 in
