1-2232511-5

Active

TE Connectivity Raychem Cable Protection

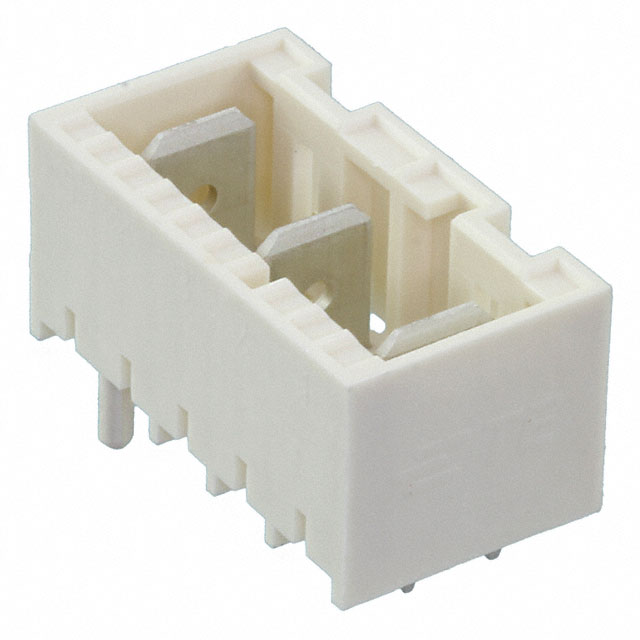

CONN HEADER VERT 5POS 5MM

Deep-Dive with AI

Search across all available documentation for this part.

1-2232511-5

Active

TE Connectivity Raychem Cable Protection

CONN HEADER VERT 5POS 5MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-2232511-5

Applications	General Purpose
Connector Type	Header
Contact Finish - Mating	Silver
Contact Finish - Post	Silver
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Shape	Rectangular
Contact Type	Tab
Fastening Type	Latch Holder
Features	Glow Wire Compliant, Board Guide
Insulation Color	Natural
Insulation Height	12.8 mm
Insulation Height	0.504 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	3
Number of Rows	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	5 mm
Pitch - Mating	0.197 "
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

RAST 5D Series

Part	Contact Shape	Applications	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Number of Rows	Style	Fastening Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Type	Pitch - Mating	Pitch - Mating	Termination	Voltage Rating	Number of Positions Loaded	Insulation Color	Contact Finish - Post	Mounting Type	Material Flammability Rating	Connector Type	Features	Shrouding	Number of Positions	Note	Contact Termination	Color	Pitch [x]	Pitch [x]	Number of Positions Loaded	Contact Finish - Mating	For Use With/Related Products	Accessory Type
TE Connectivity Raychem Cable Protection 2232045-2	Rectangular	General Purpose	3.5 mm	0.138 in	12.8 mm	0.504 in	1	Board to Cable/Wire	Latch Holder	Copper Alloy	-40 °C	120 °C	Nylon Polyamide (PA)	Tab	5 mm	0.197 "	Solder	250 VAC	All	Natural	Tin	Through Hole	UL94 V-0	Header	Board Guide Glow Wire Compliant	Shrouded - 4 Wall	2
TE Connectivity Raychem Cable Protection 6-969484-2							1		Latch Lock				Polyamide (PA66) Nylon 6/6	Female Socket								Free Hanging (In-Line)		Receptacle			2	Contacts Not Included	Crimp	Natural	5 mm	0.197 in
TE Connectivity Raychem Cable Protection 1-1703080-1
TE Connectivity Raychem Cable Protection 1-2232511-5	Rectangular	General Purpose	3.5 mm	0.138 in	12.8 mm	0.504 in	1	Board to Cable/Wire	Latch Holder		-40 °C	120 °C	Polyamide (PA66) Nylon 6/6	Tab	5 mm	0.197 "	Solder	250 VAC		Natural	Silver	Through Hole	UL94 V-0	Header	Board Guide Glow Wire Compliant	Shrouded - 4 Wall							3	Silver
TE Connectivity Raychem Cable Protection 9-2232532-3	Rectangular	General Purpose	3.5 mm	0.138 in	12.8 mm	0.504 in	1	Board to Cable/Wire	Latch Holder	Brass	-40 °C	120 °C	Nylon Polyamide (PA)	Tab	5 mm	0.197 "	Solder	250 VAC	All	Natural	Tin	Through Hole	UL94 V-0	Header	Board Guide Glow Wire Compliant	Shrouded - 4 Wall
TE Connectivity Raychem Cable Protection 8-2232532-6	Rectangular	General Purpose	3.5 mm	0.138 in	12.8 mm	0.504 in	1	Board to Cable/Wire	Latch Holder	Brass	-40 °C	120 °C	Nylon Polyamide (PA)	Tab	5 mm	0.197 "	Solder	250 VAC	All	Natural	Tin	Through Hole	UL94 V-0	Header	Board Guide Glow Wire Compliant	Shrouded - 4 Wall	6
TE Connectivity Raychem Cable Protection 1-174263-1																											6								EconoSeal Series J	Lock Plate
TE Connectivity Raychem Cable Protection 1-2232511-7	Rectangular	General Purpose	3.5 mm	0.138 in	12.8 mm	0.504 in	1	Board to Cable/Wire	Latch Holder		-40 °C	120 °C	Polyamide (PA66) Nylon 6/6	Tab	5 mm	0.197 "	Solder	250 VAC		Natural	Silver	Through Hole	UL94 V-0	Header	Board Guide Glow Wire Compliant	Shrouded - 4 Wall	7						4	Silver
TE Connectivity Raychem Cable Protection 3-2232532-8	Rectangular	General Purpose	3.5 mm	0.138 in	12.8 mm	0.504 in	1	Board to Cable/Wire	Latch Holder	Brass	-40 °C	120 °C	Nylon Polyamide (PA)	Tab	5 mm	0.197 "	Solder	250 VAC	All	Natural	Tin	Through Hole	UL94 V-0	Header	Board Guide Glow Wire Compliant	Shrouded - 4 Wall	8
TE Connectivity Raychem Cable Protection 1-2232511-3	Rectangular	General Purpose	3.5 mm	0.138 in	12.8 mm	0.504 in	1	Board to Cable/Wire	Latch Holder		-40 °C	120 °C	Polyamide (PA66) Nylon 6/6	Tab	5 mm	0.197 "	Solder	250 VAC		Natural	Silver	Through Hole	UL94 V-0	Header	Board Guide Glow Wire Compliant	Shrouded - 4 Wall							2	Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.78
		10	$ 0.73
		150	$ 0.63
		600	$ 0.60

Description

General part information

RAST 5D Series

Connector Header Through Hole 5 position 0.197" (5.00mm)

Documents

Technical documentation and resources

No documents available
