2232045-2

Active

TE Connectivity Raychem Cable Protection

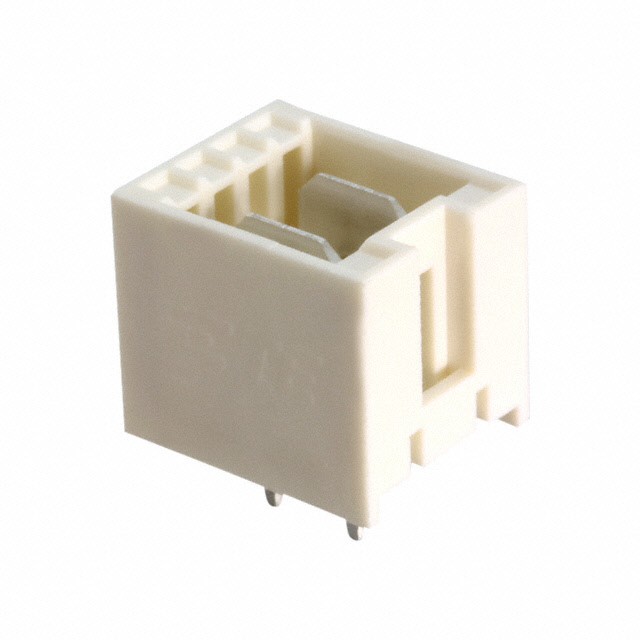

2P, RAST 5 TAB HEADER, THV

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet RAST 2.5 AND RAST 5 TAB HEADER ASSEMBLY +7

2232045-2

Active

TE Connectivity Raychem Cable Protection

2P, RAST 5 TAB HEADER, THV

Deep-Dive with AI

DocumentsDatasheet RAST 2.5 AND RAST 5 TAB HEADER ASSEMBLY +7

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2232045-2

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Tab
Fastening Type	Latch Holder
Features	Glow Wire Compliant, Board Guide
Insulation Color	Natural
Insulation Height	12.8 mm
Insulation Height	0.504 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	5 mm
Pitch - Mating	0.197 "
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

RAST 5 IDC Connectors Series

Power to the Board MONO-SHAPE MK I TAB CONN ASSY

...

Part	Number of Rows	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Insulation Material	Connector Type	Contact Termination	Note	Mounting Type	Fastening Type	Color	Contact Shape	Applications	Contact Finish - Post	Voltage Rating	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Termination	Number of Positions Loaded	Material Flammability Rating	Features	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Style	Insulation Height	Insulation Height	Contact Finish	Cable Termination	Wire Type	Contact Length - Post	Contact Length - Post	Insulation Color	Tab Length [x]	Tab Length [x]	Length - Overall [x]	Length - Overall [x]	Insulation	Tab Thickness	Tab Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Gender	Tab Width	Tab Width
TE Connectivity Raychem Cable Protection 6-1241961-8	1	Female Socket	-40 °C	105 ░C	5 mm	0.197 in	Polyamide (PA6) Nylon 6	Receptacle	Crimp	Contacts Not Included	Free Hanging (In-Line)	Latch Lock	Natural
TE Connectivity Raychem Cable Protection 5-1969352-2	1	Tab	-40 °C	120 °C			Polyamide (PA66) Nylon 6/6	Header			Through Hole Right Angle	Latch Holder		Rectangular	General Purpose	Tin	250 VAC	2	150 Áin	3.81 Ám	Brass	Solder	All	UL94 V-2	Glow Wire Compliant	5 mm	0.197 "	150 Áin	3.81 Ám	Shrouded - 4 Wall	Board to Cable/Wire	0.656 in	16.65 mm
TE Connectivity Raychem Cable Protection 8-1703060-6	1	Female Socket	-40 °C	105 ░C	5 mm	0.197 in	Polyamide (PA66) Nylon 6/6	Receptacle	Crimp	Contacts Not Included	Free Hanging (In-Line)	Locking Ramp	Natural					6
TE Connectivity Raychem Cable Protection 2-1534073-4	1	Blade Pin			5 mm	0.197 in		Receptacle			Free Hanging (In-Line)	Latch Lock	Natural					4							Dual Wire Exit									Tin	IDC	Discrete
TE Connectivity Raychem Cable Protection 1241961-6	1	Female Socket	-40 °C	105 ░C	5 mm	0.197 in	Polyamide (PA6) Nylon 6	Receptacle	Crimp	Contacts Not Included	Free Hanging (In-Line)	Latch Lock	Natural
TE Connectivity Raychem Cable Protection 5-1971845-8	1	Tab	-40 °C	120 °C			Nylon Polyamide (PA)	Header			Through Hole	Latch Holder		Rectangular	General Purpose	Tin	250 VAC	8			Copper Alloy	Solder	All	UL94 V-0	Board Guide Glow Wire Compliant	5 mm	0.197 "			Shrouded - 4 Wall	Board to Cable/Wire	0.504 in	12.8 mm				3.5 mm	0.138 in	Natural
TE Connectivity Raychem Cable Protection 4-969484-2	1	Female Socket			5 mm	0.197 in	Polyamide (PA66) Nylon 6/6	Receptacle	Crimp	Contacts Not Included	Free Hanging (In-Line)	Latch Lock	Natural					2
TE Connectivity Raychem Cable Protection 7-1971845-3	1	Tab	-40 °C	120 °C			Nylon Polyamide (PA)	Header			Through Hole	Latch Holder		Rectangular	General Purpose	Tin	250 VAC				Copper Alloy	Solder	All	UL94 V-0	Board Guide Glow Wire Compliant	5 mm	0.197 "			Shrouded - 4 Wall	Board to Cable/Wire	0.504 in	12.8 mm				3.5 mm	0.138 in	Natural
TE Connectivity Raychem Cable Protection 2232045-2	1	Tab	-40 °C	120 °C			Nylon Polyamide (PA)	Header			Through Hole	Latch Holder		Rectangular	General Purpose	Tin	250 VAC	2			Copper Alloy	Solder	All	UL94 V-0	Board Guide Glow Wire Compliant	5 mm	0.197 "			Shrouded - 4 Wall	Board to Cable/Wire	0.504 in	12.8 mm				3.5 mm	0.138 in	Natural
TE Connectivity Raychem Cable Protection 1217378-1											Free Hanging (In-Line)										Brass	Crimp																		7.44 mm	0.293 in	0.771 in	19.58 mm	Non-Insulated	0.032 in	0.81 mm	22 AWG	17.5 AWG	Standard	2.79 mm	0.11 "	1.52 mm	0.06 in	Female	6.35 mm	0.25 in
