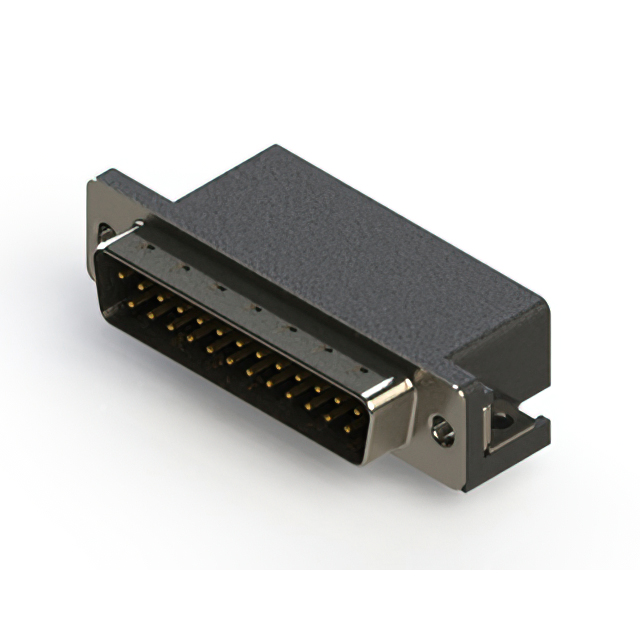

625-025-362-011

Active

EDAC Inc.

625 SERIES RIGHT ANGLE D-SUB PLU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

625-025-362-011

Active

EDAC Inc.

625 SERIES RIGHT ANGLE D-SUB PLU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	625-025-362-011

Backset Spacing	0.584 in
Backset Spacing	14.84 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets, Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

625-025 Series

Part	Backset Spacing	Backset Spacing	Number of Rows	Color	Contact Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Contact Finish Thickness	Connector Type	Dielectric Material	Material Flammability Rating	Mounting Type	Features	Termination	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish	Contact Type	Flange Feature	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 625-025-262-532	0.584 in	14.84 mm	2	Black	Copper Alloy	3 A	-55 °C	125 °C	D-Sub	Flash	Male Pins Plug	Polyester Thermoplastic	UL94 V-0	Board Edge Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	B DB	3	Gold	Signal	Housing/Shell (4-40)	Nickel Plated Steel
EDAC Inc. 625-025-662-040	0.584 in	14.84 mm	2	Black	Copper Alloy	3 A	-55 °C	85 °C	D-Sub		Male Pins Plug	Polyester Thermoplastic	UL94 V-0	Board Edge Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	B DB	3	Gold	Signal	4-40	Nickel Plated Steel	0.76 Ám	30 Áin
EDAC Inc. 625-025-362-535	0.584 in	14.84 mm	2	Black	Copper Alloy	3 A	-55 °C	125 °C	D-Sub		Male Pins Plug	Polyester Thermoplastic	UL94 V-0	Board Edge Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	B DB	3	Gold	Signal	Housing/Shell (M3)	Nickel Plated Steel	0.38 µm	15 µin
EDAC Inc. 625-025-262-043	0.584 in	14.84 mm	2	Black	Copper Alloy	3 A	-55 °C	85 °C	D-Sub	Flash	Male Pins Plug	Polyester Thermoplastic	UL94 V-0	Board Edge Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	B DB	3	Gold	Signal	Female Screwlock (4-40) Mating Side	Nickel Plated Steel
EDAC Inc. 625-025-362-033	0.584 in	14.84 mm	2	Black	Copper Alloy	3 A	-55 °C	85 °C	D-Sub		Male Pins Plug	Polyester Thermoplastic	UL94 V-0	Board Edge Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	B DB	3	Gold	Signal	Female Screwlock (4-40) Mating Side	Nickel Plated Steel	0.38 µm	15 µin
EDAC Inc. 625-025-262-033	0.584 in	14.84 mm	2	Black	Copper Alloy	3 A	-55 °C	85 °C	D-Sub	Flash	Male Pins Plug	Polyester Thermoplastic	UL94 V-0	Board Edge Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	B DB	3	Gold	Signal	Female Screwlock (4-40) Mating Side	Nickel Plated Steel
EDAC Inc. 625-025-662-042	0.584 in	14.84 mm	2	Black	Copper Alloy	3 A	-55 °C	85 °C	D-Sub		Male Pins Plug	Polyester Thermoplastic	UL94 V-0	Board Edge Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	B DB	3	Gold	Signal	Housing/Shell (4-40)	Nickel Plated Steel	0.76 Ám	30 Áin
EDAC Inc. 625-025-362-011	0.584 in	14.84 mm	2	Black	Copper Alloy	3 A	-55 °C	85 °C	D-Sub		Male Pins Plug	Polyester Thermoplastic	UL94 V-0	Board Edge Right Angle Through Hole	Grounding Indents Mounting Brackets Shielded	Solder	B DB	3	Gold	Signal	Housing/Shell (Unthreaded)	Nickel Plated Steel	0.38 µm	15 µin
EDAC Inc. 625-025-362-040	0.584 in	14.84 mm	2	Black	Copper Alloy	3 A	-55 °C	85 °C	D-Sub		Male Pins Plug	Polyester Thermoplastic	UL94 V-0	Board Edge Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	B DB	3	Gold	Signal	4-40	Nickel Plated Steel	0.38 µm	15 µin
EDAC Inc. 625-025-662-512	0.584 in	14.84 mm	2	Black	Copper Alloy	3 A	-55 °C	125 °C	D-Sub		Male Pins Plug	Polyester Thermoplastic	UL94 V-0	Board Edge Right Angle Through Hole	Grounding Indents Mounting Brackets Shielded	Solder	B DB	3	Gold	Signal	Housing/Shell (4-40)	Nickel Plated Steel	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 7.14

Description

General part information

625-025 Series

25 Position D-Sub Plug, Male Pins Connector
