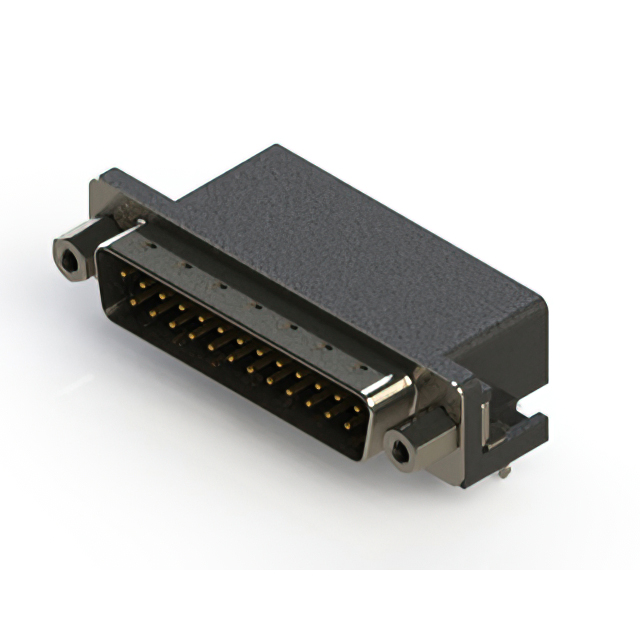

625-025-262-033
ActiveEDAC Inc.
625 SERIES RIGHT ANGLE D-SUB PLU
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
625-025-262-033
ActiveEDAC Inc.
625 SERIES RIGHT ANGLE D-SUB PLU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 625-025-262-033 |
|---|---|
| Backset Spacing | 0.584 in |
| Backset Spacing | 14.84 mm |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Board Lock, Mounting Brackets, Grounding Indents, Shielded |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
625-025 Series
| Part | Backset Spacing | Backset Spacing | Number of Rows | Color | Contact Material | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Contact Finish Thickness | Connector Type | Dielectric Material | Material Flammability Rating | Mounting Type | Features | Termination | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish | Contact Type | Flange Feature | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.584 in | 14.84 mm | 2 | Black | Copper Alloy | 3 A | -55 °C | 125 °C | D-Sub | Flash | Male Pins Plug | Polyester Thermoplastic | UL94 V-0 | Board Edge Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Solder | B DB | 3 | Gold | Signal | Housing/Shell (4-40) | Nickel Plated Steel | ||
EDAC Inc. | 0.584 in | 14.84 mm | 2 | Black | Copper Alloy | 3 A | -55 °C | 85 °C | D-Sub | Male Pins Plug | Polyester Thermoplastic | UL94 V-0 | Board Edge Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Solder | B DB | 3 | Gold | Signal | 4-40 | Nickel Plated Steel | 0.76 Ám | 30 Áin | |
EDAC Inc. | 0.584 in | 14.84 mm | 2 | Black | Copper Alloy | 3 A | -55 °C | 125 °C | D-Sub | Male Pins Plug | Polyester Thermoplastic | UL94 V-0 | Board Edge Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Solder | B DB | 3 | Gold | Signal | Housing/Shell (M3) | Nickel Plated Steel | 0.38 µm | 15 µin | |
EDAC Inc. | 0.584 in | 14.84 mm | 2 | Black | Copper Alloy | 3 A | -55 °C | 85 °C | D-Sub | Flash | Male Pins Plug | Polyester Thermoplastic | UL94 V-0 | Board Edge Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Solder | B DB | 3 | Gold | Signal | Female Screwlock (4-40) Mating Side | Nickel Plated Steel | ||
EDAC Inc. | 0.584 in | 14.84 mm | 2 | Black | Copper Alloy | 3 A | -55 °C | 85 °C | D-Sub | Male Pins Plug | Polyester Thermoplastic | UL94 V-0 | Board Edge Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Solder | B DB | 3 | Gold | Signal | Female Screwlock (4-40) Mating Side | Nickel Plated Steel | 0.38 µm | 15 µin | |
EDAC Inc. | 0.584 in | 14.84 mm | 2 | Black | Copper Alloy | 3 A | -55 °C | 85 °C | D-Sub | Flash | Male Pins Plug | Polyester Thermoplastic | UL94 V-0 | Board Edge Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Solder | B DB | 3 | Gold | Signal | Female Screwlock (4-40) Mating Side | Nickel Plated Steel | ||
EDAC Inc. | 0.584 in | 14.84 mm | 2 | Black | Copper Alloy | 3 A | -55 °C | 85 °C | D-Sub | Male Pins Plug | Polyester Thermoplastic | UL94 V-0 | Board Edge Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Solder | B DB | 3 | Gold | Signal | Housing/Shell (4-40) | Nickel Plated Steel | 0.76 Ám | 30 Áin | |
EDAC Inc. | 0.584 in | 14.84 mm | 2 | Black | Copper Alloy | 3 A | -55 °C | 85 °C | D-Sub | Male Pins Plug | Polyester Thermoplastic | UL94 V-0 | Board Edge Right Angle Through Hole | Grounding Indents Mounting Brackets Shielded | Solder | B DB | 3 | Gold | Signal | Housing/Shell (Unthreaded) | Nickel Plated Steel | 0.38 µm | 15 µin | |
EDAC Inc. | 0.584 in | 14.84 mm | 2 | Black | Copper Alloy | 3 A | -55 °C | 85 °C | D-Sub | Male Pins Plug | Polyester Thermoplastic | UL94 V-0 | Board Edge Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Solder | B DB | 3 | Gold | Signal | 4-40 | Nickel Plated Steel | 0.38 µm | 15 µin | |
EDAC Inc. | 0.584 in | 14.84 mm | 2 | Black | Copper Alloy | 3 A | -55 °C | 125 °C | D-Sub | Male Pins Plug | Polyester Thermoplastic | UL94 V-0 | Board Edge Right Angle Through Hole | Grounding Indents Mounting Brackets Shielded | Solder | B DB | 3 | Gold | Signal | Housing/Shell (4-40) | Nickel Plated Steel | 0.76 Ám | 30 Áin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.25 | |
| 10 | $ 4.77 | |||
| 25 | $ 4.52 | |||
| 50 | $ 4.41 | |||
| 100 | $ 4.20 | |||
| 250 | $ 3.68 | |||
| 450 | $ 3.57 | |||
| 950 | $ 3.05 | |||
| 2400 | $ 2.84 | |||
Description
General part information
625-025 Series
25 Position D-Sub Plug, Male Pins Connector
Documents
Technical documentation and resources
