Description

General part information

357-074 Series

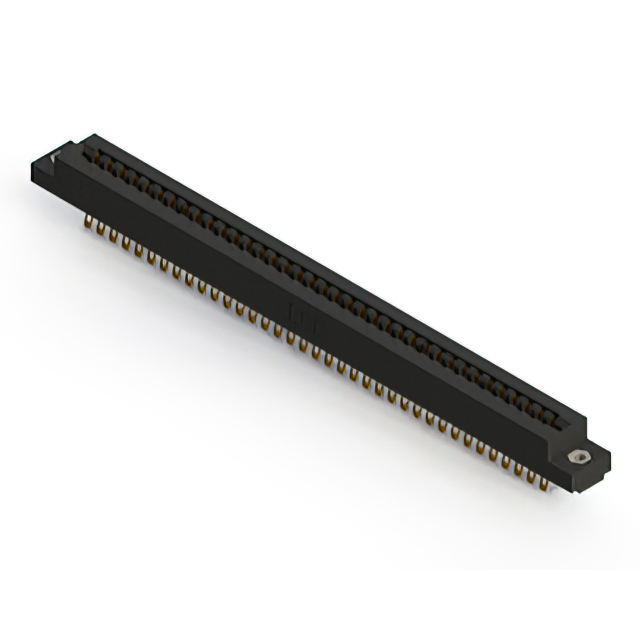

74 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	357-074-555-207

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Extender
Flange Feature	M3, Flush Mount, Top Opening, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Straddle Mount, Board Edge
Number of Positions	37 pos, 74
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2 rows

357-074 Series

...

Part	Contact Type	Number of Rows	Read Out	Contact Finish	Card Thickness (Min)	Card Thickness (Max)	Termination	Mounting Type	Number of Positions	Card Type	Flange Feature	Contact Material	Features	Gender	Operating Temperature (Min)	Operating Temperature (Max)	Color	Pitch	Material - Insulation	Termination Rows	Contact Finish Thickness	Flange Feature Diameter
EDAC Inc. 357-074-458-258	Semi Bellows	2	Dual	Tin	0.054 in	0.07 in	Solder	Right Angle Through Hole	37 pos 74	Dual Edge Non Specified	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Card Guides	Female	-40 °C	105 °C	Black	0.156 in	Polyester Thermoplastic	2 rows
EDAC Inc. 357-074-524-204	Semi Bellows	2	Dual	Gold	0.054 in	0.07 in	Solder	Through Hole	37 pos 74	Dual Edge Non Specified	Flush Mount Top Opening Unthreaded	Copper Alloy		Female	-40 °C	105 °C	Black	0.156 in	Polyester Thermoplastic	2 rows	10 Ąin	0.156 in
EDAC Inc. 357-074-559-202	Semi Bellows	2	Dual	Gold	0.054 in	0.07 in	Solder	Right Angle Through Hole	37 pos 74	Dual Edge Non Specified	Flush Mount Top Opening Unthreaded	Copper Alloy		Female	-40 °C	105 °C	Black	0.156 in	Polyester Thermoplastic	2 rows	10 Ąin	0.128 in
EDAC Inc. 357-074-555-207	Semi Bellows	2	Dual	Gold	0.054 in	0.07 in	Solder Eyelet(s)	Board Edge Straddle Mount	37 pos 74	Dual Edge Non Specified	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	Card Extender	Female	-40 °C	105 °C	Black	0.156 in	Polyester Thermoplastic	2 rows	10 Ąin
EDAC Inc. 357-074-459-278	Semi Bellows	2	Dual	Tin	0.054 in	0.07 in	Solder	Right Angle Through Hole	37 pos 74	Dual Edge Non Specified	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Card Guides	Female	-40 °C	105 °C	Black	0.156 in	Polyester Thermoplastic	2 rows
EDAC Inc. 357-074-455-268	Semi Bellows	2	Dual	Tin	0.054 in	0.07 in	Solder Eyelet(s)	Board Edge Straddle Mount	37 pos 74	Dual Edge Non Specified	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Card Extender Card Guides	Female	-40 °C	105 °C	Black	0.156 in	Polyester Thermoplastic	2 rows
EDAC Inc. 357-074-555-268	Semi Bellows	2	Dual	Gold	0.054 in	0.07 in	Solder Eyelet(s)	Board Edge Straddle Mount	37 pos 74	Dual Edge Non Specified	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Card Extender Card Guides	Female	-40 °C	105 °C	Black	0.156 in	Polyester Thermoplastic	2 rows	10 Ąin
EDAC Inc. 357-074-456-202	Semi Bellows	2	Dual	Tin	0.054 in	0.07 in	Solder	Board Edge Straddle Mount	37 pos 74	Dual Edge Non Specified	Flush Mount Top Opening Unthreaded	Copper Alloy		Female	-40 °C	105 °C	Black	0.156 in	Polyester Thermoplastic	2 rows		0.128 in
EDAC Inc. 357-074-560-208	Semi Bellows	2	Dual	Gold	0.054 in	0.07 in	Solder	Board Edge Straddle Mount	37 pos 74	Dual Edge Non Specified	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Card Extender	Female	-40 °C	105 °C	Black	0.156 in	Polyester Thermoplastic	2 rows	10 Ąin
EDAC Inc. 357-074-558-204	Semi Bellows	2	Dual	Gold	0.054 in	0.07 in	Solder Wire Wrap	Right Angle Through Hole	37 pos 74	Dual Edge Non Specified	Flush Mount Top Opening Unthreaded	Copper Alloy		Female	-40 °C	105 °C	Black	0.156 in	Polyester Thermoplastic	2 rows	10 Ąin	0.156 in
