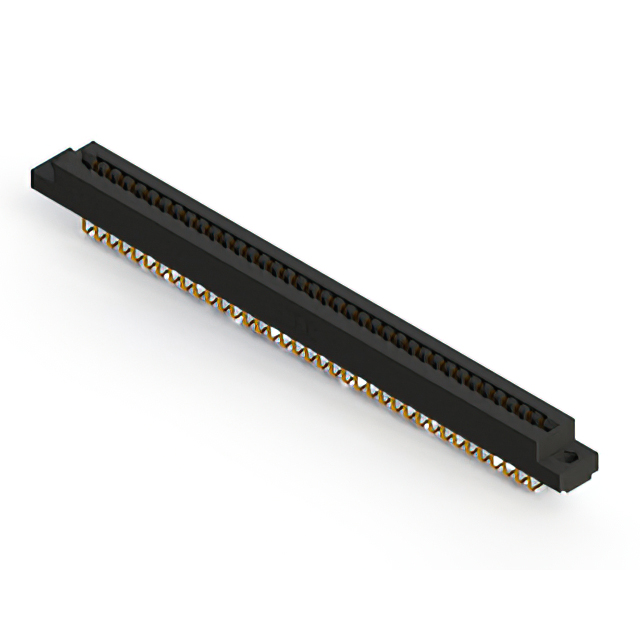

357-074-558-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 74POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-074-558-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 74 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap, Solder |
| Termination Rows | 2 |
357-074 Series
...
| Part | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Features | Card Type | Termination | Number of Rows | Flange Feature | Read Out | Contact Type | Material - Insulation | Contact Finish | Mounting Type | Termination Rows | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Contact Material | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 74 | -40 °C | 105 ░C | Card Guides | Non Specified - Dual Edge | Solder | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Semi Bellows | Polyester Thermoplastic | Tin | Through Hole Right Angle | 2 | 37 | 37 | 37 | 0.156 in | 3.96 mm | Copper Alloy | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | ||||
EDAC Inc. | 74 | -40 °C | 105 ░C | Non Specified - Dual Edge | Solder | 2 | Flush Mount Top Opening Unthreaded | Dual | Semi Bellows | Polyester Thermoplastic | Gold | Through Hole | 2 | 37 | 37 | 37 | 0.156 in | 3.96 mm | Copper Alloy | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 3.96 mm | 0.156 in | 10 Áin | 0.25 Ám | |
EDAC Inc. | 74 | -40 °C | 105 ░C | Non Specified - Dual Edge | Solder | 2 | Flush Mount Top Opening Unthreaded | Dual | Semi Bellows | Polyester Thermoplastic | Gold | Through Hole Right Angle | 2 | 37 | 37 | 37 | 0.156 in | 3.96 mm | Copper Alloy | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 3.25 mm | 0.128 " | 10 Áin | 0.25 Ám | |
EDAC Inc. | 74 | -40 °C | 105 ░C | Card Extender | Non Specified - Dual Edge | Solder Eyelet(s) | 2 | Flush Mount M3 Threaded Insert Top Opening | Dual | Semi Bellows | Polyester Thermoplastic | Gold | Board Edge Straddle Mount | 2 | 37 | 37 | 37 | 0.156 in | 3.96 mm | Copper Alloy | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 74 | -40 °C | 105 ░C | Card Guides | Non Specified - Dual Edge | Solder | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Semi Bellows | Polyester Thermoplastic | Tin | Through Hole Right Angle | 2 | 37 | 37 | 37 | 0.156 in | 3.96 mm | Copper Alloy | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | ||||
EDAC Inc. | 74 | -40 °C | 105 ░C | Non Specified - Dual Edge | Solder Eyelet(s) | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Semi Bellows | Polyester Thermoplastic | Tin | Board Edge Straddle Mount | 2 | 37 | 37 | 37 | 0.156 in | 3.96 mm | Copper Alloy | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | |||||
EDAC Inc. | 74 | -40 °C | 105 ░C | Non Specified - Dual Edge | Solder | 2 | Flush Mount Top Opening Unthreaded | Dual | Semi Bellows | Polyester Thermoplastic | Tin | Board Edge Straddle Mount | 2 | 37 | 37 | 37 | 0.156 in | 3.96 mm | Copper Alloy | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 3.25 mm | 0.128 " | |||
EDAC Inc. | 74 | -40 °C | 105 ░C | Card Extender | Non Specified - Dual Edge | Solder | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Semi Bellows | Polyester Thermoplastic | Gold | Board Edge Straddle Mount | 2 | 37 | 37 | 37 | 0.156 in | 3.96 mm | Copper Alloy | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 74 | -40 °C | 105 ░C | Non Specified - Dual Edge | Solder Wire Wrap | 2 | Flush Mount Top Opening Unthreaded | Dual | Semi Bellows | Polyester Thermoplastic | Gold | Through Hole Right Angle | 2 | 37 | 37 | 37 | 0.156 in | 3.96 mm | Copper Alloy | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 3.96 mm | 0.156 in | 10 Áin | 0.25 Ám | |
EDAC Inc. | 74 | -40 °C | 105 ░C | Non Specified - Dual Edge | Solder | 2 | Floating Bobbin Flush Mount | Dual | Semi Bellows | Polyester Thermoplastic | Gold | Through Hole | 2 | 37 | 37 | 37 | 0.156 in | 3.96 mm | Copper Alloy | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 2.95 mm | 0.116 in | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 17.99 | |
Description
General part information
357-074 Series
74 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
