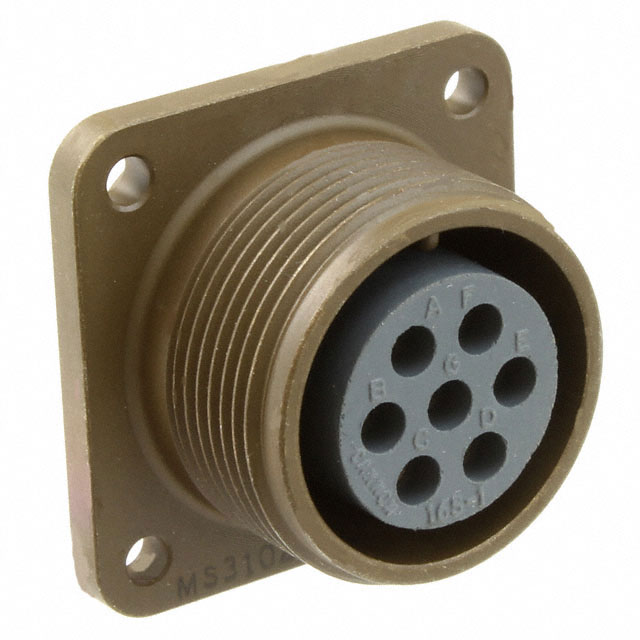

MS3102R16S-1S

Active

ITT Cannon, LLC

CONN RCPT FMALE 7P SOLDER CUP

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT FMALE 7P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Part	Color	Qualification	Shell Size - Insert	Current Rating (Amps)	Mounting Feature	Shell Finish	Primary Material	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Orientation	Voltage Rating	Ingress Protection	Shell Material	Grade	Shielding	Cable Opening [diameter]	Cable Opening [diameter]	Applications	Contact Material	Insert Material	Number of Positions
ITT Cannon, LLC MS3102R16-10PX	Olive Drab	MIL-DTL-5015	16-10	41 A	Flange	Olive Drab Cadmium	Metal	Silver	-55 °C	125 °C	Male Pins Receptacle	X	500 VAC 700 VDC	Environment Resistant	Aluminum Alloy	Military
ITT Cannon, LLC MS3102R16-10S	Olive Drab	MIL-DTL-5015	16-10		Flange	Olive Drab Chromate over Cadmium	Metal	Silver	-55 °C	125 °C	Receptacle Female Sockets	N		Environment Resistant	Aluminum Alloy	Military	Unshielded	22.22 mm	0.875 in	Marine Military	Copper Alloy	Neoprene
ITT Cannon, LLC MS3102R16S-1S	Olive Drab	MIL-DTL-5015	16S-1	22 A	Flange	Olive Drab Cadmium	Metal	Silver	-55 °C	125 °C	Receptacle Female Sockets	N	500 VAC 700 VDC	Environment Resistant	Aluminum Alloy	Military							7
ITT Cannon, LLC MS3102R16-11S	Olive Drab	MIL-DTL-5015	16-11	41 A	Flange	Olive Drab Cadmium	Metal	Silver	-55 °C	125 °C	Receptacle Female Sockets	N	500 VAC 700 VDC	Environment Resistant	Aluminum Alloy	Military							2
ITT Cannon, LLC MS3102R16-9P	Olive Drab	MIL-DTL-5015		22 A 41 A	Flange	Olive Drab Cadmium	Metal	Silver	-55 °C	125 °C	Male Pins Receptacle	N	500 VAC 700 VDC	Environment Resistant	Aluminum Alloy	Military							4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 24.13

General part information

7 Position Circular Connector Receptacle, Female Sockets Solder Cup
