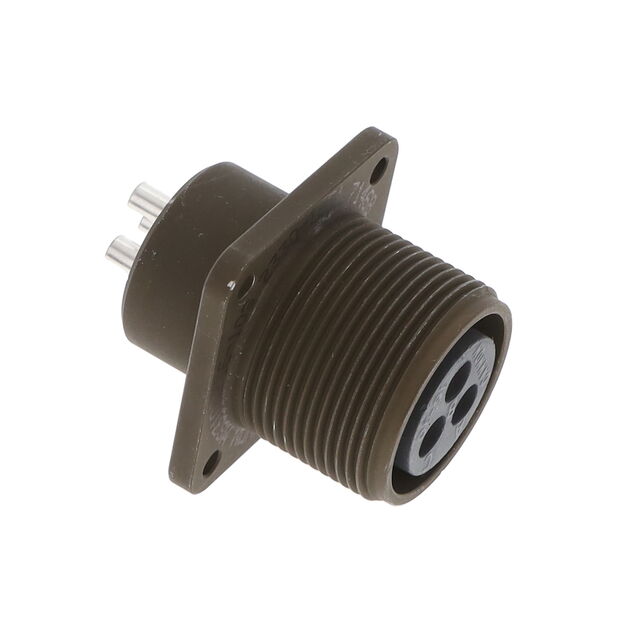

MS3102R16-10S

Active

ITT Cannon, LLC

MIL-DTL 5015 SERIES I

Search across all available documentation for this part.

Active

ITT Cannon, LLC

MIL-DTL 5015 SERIES I

Technical Specifications

Parameters and characteristics for this part

Specification	MS3102R16-10S

Applications	Military, Marine
Cable Opening [diameter]	22.22 mm
Cable Opening [diameter]	0.875 in
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	16-10
Shielding	Unshielded

Part	Color	Qualification	Shell Size - Insert	Current Rating (Amps)	Mounting Feature	Shell Finish	Primary Material	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Orientation	Voltage Rating	Ingress Protection	Shell Material	Grade	Shielding	Cable Opening [diameter]	Cable Opening [diameter]	Applications	Contact Material	Insert Material	Number of Positions
ITT Cannon, LLC MS3102R16-10PX	Olive Drab	MIL-DTL-5015	16-10	41 A	Flange	Olive Drab Cadmium	Metal	Silver	-55 °C	125 °C	Male Pins Receptacle	X	500 VAC 700 VDC	Environment Resistant	Aluminum Alloy	Military
ITT Cannon, LLC MS3102R16-10S	Olive Drab	MIL-DTL-5015	16-10		Flange	Olive Drab Chromate over Cadmium	Metal	Silver	-55 °C	125 °C	Receptacle Female Sockets	N		Environment Resistant	Aluminum Alloy	Military	Unshielded	22.22 mm	0.875 in	Marine Military	Copper Alloy	Neoprene
ITT Cannon, LLC MS3102R16S-1S	Olive Drab	MIL-DTL-5015	16S-1	22 A	Flange	Olive Drab Cadmium	Metal	Silver	-55 °C	125 °C	Receptacle Female Sockets	N	500 VAC 700 VDC	Environment Resistant	Aluminum Alloy	Military							7
ITT Cannon, LLC MS3102R16-11S	Olive Drab	MIL-DTL-5015	16-11	41 A	Flange	Olive Drab Cadmium	Metal	Silver	-55 °C	125 °C	Receptacle Female Sockets	N	500 VAC 700 VDC	Environment Resistant	Aluminum Alloy	Military							2
ITT Cannon, LLC MS3102R16-9P	Olive Drab	MIL-DTL-5015		22 A 41 A	Flange	Olive Drab Cadmium	Metal	Silver	-55 °C	125 °C	Male Pins Receptacle	N	500 VAC 700 VDC	Environment Resistant	Aluminum Alloy	Military							4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Female Sockets Solder Cup
