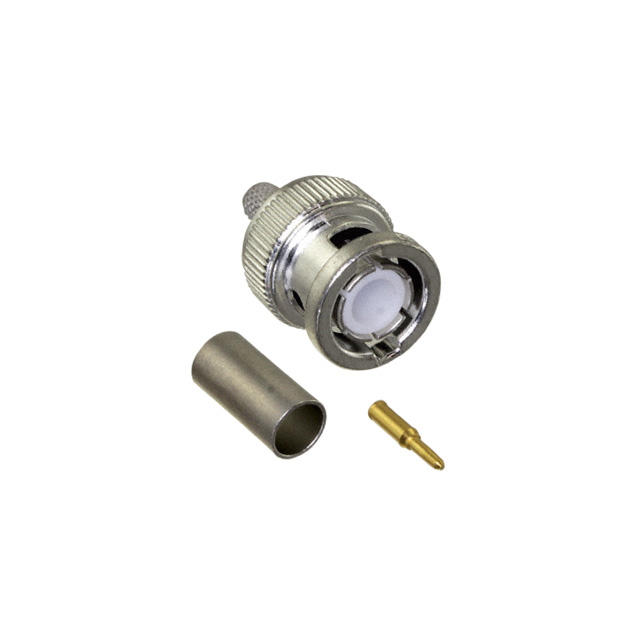

51S107-108N5

Active

Rosenberger

CONN BNC PLUG STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Rosenberger

CONN BNC PLUG STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	51S107-108N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	223, 400
Cable Group	RG-142B
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	400 V

Part	Connector Type	Impedance	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Shield Termination	Body Material	Housing Color	Cable Group	Cable Group	Body Finish	Contact Termination	Center Contact Plating	Voltage Rating	Dielectric Material	Center Contact Material	Includes	Frequency - Max [Max]	Mating Cycles	Mounting Type	Number of Ports
Rosenberger 51S107-108N5	Male Pin Plug	50 Ohms	Bayonet Lock	155 °C	-55 °C	BNC	Crimp	Brass	Silver	223 400	RG-142B	White Bronze	Crimp	Gold	400 V	Polytetrafluoroethylene (PTFE)	Brass	1 Connector 1 Contact 1 Ferrule	10 GHz	500	Free Hanging (In-Line)	1
Rosenberger 51S107-106N5	Male Pin Plug	50 Ohms	Bayonet Lock	155 °C	-55 °C	BNC	Crimp	Brass	Silver	141	RG-58C	White Bronze	Crimp	Gold	400 V	Polytetrafluoroethylene (PTFE)	Brass	1 Connector 1 Contact 1 Ferrule	10 GHz	500	Free Hanging (In-Line)	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
