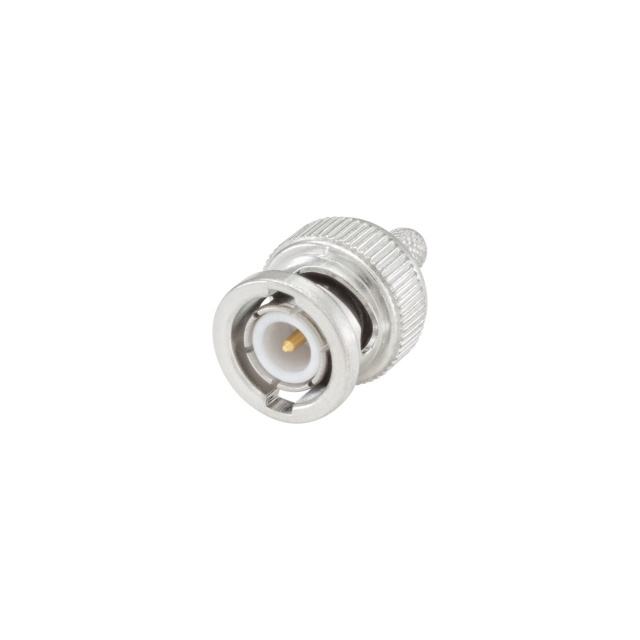

Specification	51S107-106N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	141, RG-58C
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max	10 GHz
Housing Color	Silver
Impedance	50 Ohm
Includes	Ferrule, Connector, Contact
Includes Total Count	3 pcs
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Shield Termination	Crimp
Voltage Rating	400 V

BNC Series

Part	Convert From (Adapter End)	Mounting Feature	Mounting Type	Center Contact Plating	Style	Frequency - Max	Fastening Type	Conversion Type	Center Gender	Impedance	Convert To (Adapter End) Gender	Convert To (Adapter End) Type	Adapter Type	Adapter Series	Mating Cycles	Includes Total Count	Includes	Body Finish	Operating Temperature (Max)	Operating Temperature (Min)	Body Material	Center Contact Material	Dielectric Material	Contact Termination	Housing Color	Shield Termination	Connector Style	Number of Ports	Cable Group	Connector Type	Voltage Rating	Features
Rosenberger 71K501-K00N5	BNC Jack Female Socket	Flange	Panel Mount	Gold	Straight	4 GHz	Bayonet Lock	Same Series	Female	75 Ohm	Female Socket	BNC Jack	Jack to Jack	BNC to BNC	500 cycles	3 pcs	Connector Lockwasher Nut	White Bronze	110 °C	-25 °C	Brass	Beryllium Copper	Polytetrafluoroethylene (PTFE)
Rosenberger 51K501-K00N5	BNC Jack Female Socket	Bulkhead	Panel Mount	Gold	Straight	10 GHz	Bayonet Lock	Same Series	Female	50 Ohm	Female Socket	BNC Jack	Jack to Jack	BNC to BNC	500 cycles	3 pcs	Connector Lockwasher Nut	White Bronze	110 °C	-25 °C	Brass	Beryllium Copper	Polytetrafluoroethylene (PTFE)
Rosenberger 51S107-106N5			Free Hanging (In-Line)	Gold		10 GHz	Bayonet Lock			50 Ohm					500 cycles	3 pcs	Connector Contact Ferrule	White Bronze	155 °C	-55 °C	Brass	Brass	Polytetrafluoroethylene (PTFE)	Crimp	Silver	Crimp	BNC	1	141 RG-58C	Male Pin Plug	400 V
Rosenberger 51K201-400N5			Right Angle Through Hole	Gold		10 GHz	Bayonet Lock			50 Ohm					500 cycles			Nickel	155 °C	-55 °C	Brass	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Solder	Silver	Solder	BNC	1		Female Socket Jack	400 V
Rosenberger 51K101-400A5			Through Hole			10 GHz	Bayonet Lock			50 Ohm												Beryllium Copper		Solder	Silver	Solder	BNC	1		Female Socket Jack
Rosenberger 51K507-200N5		Bulkhead Rear Side Nut	Panel Mount			10 GHz	Bayonet Lock			50 Ohm												Beryllium Copper		Solder Cup	Silver	Solder	BNC	1		Female Socket Jack		Extended Insulation
Rosenberger 51S201-006N5			Free Hanging (In-Line) Right Angle			10 GHz	Bayonet Lock			50 Ohm												Bronze		Solder	Silver	Clamp	BNC	1	141 RG-58C	Male Pin Plug
Rosenberger 71K504-200N5		Bulkhead Rear Side Nut	Panel Mount	Gold		4 GHz	Bayonet Lock			75 Ohm					500 cycles	3 pcs	Connector Lockwasher Nut	White Bronze	165 °C	-65 °C	Brass	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Solder Cup	Silver	Solder	BNC	1		Female Socket Jack	400 V	Extended Insulation
