CLS-TC11A12252G
ActiveLumex Opto/Components Inc.

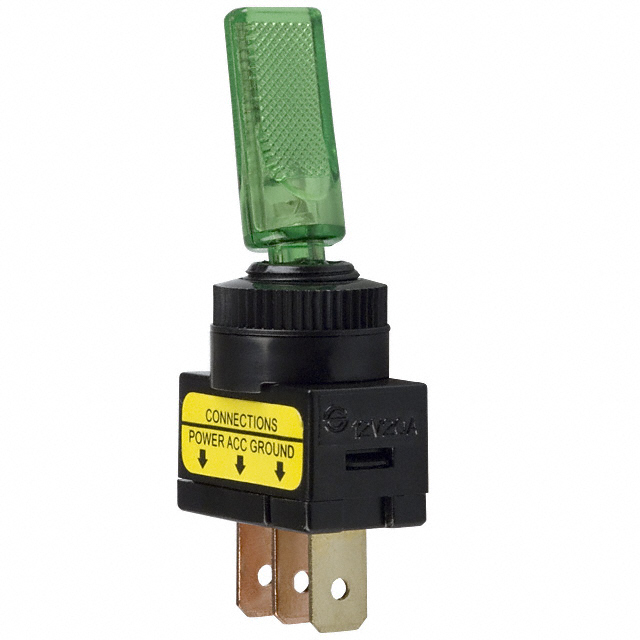

SWITCH TOGGLE SPST 20A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLS-TC11A12252G
ActiveLumex Opto/Components Inc.
SWITCH TOGGLE SPST 20A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CLS-TC11A12252G | CLS-TC11 Series |
|---|---|---|
| Actuator Length [x] | 26.27 mm | 20 - 26.27 mm |
| Actuator Type | Flatted | Flatted, Standard Round |
| Bushing Thread | - | M12 |
| Bushing Thread | - | 0.75 |
| Circuit | SPST | SPST |
| Current Rating (Amps) | 20 A | 20 A |
| Illumination | Illuminated | Illuminated |
| Illumination Type, Color | LED, Green | LED, Yellow, Red, Green, Blue |
| Illumination Voltage (Nominal) | 12 VDC | 12 VDC |
| Mounting Type | - | Panel Mount, Snap-In |
| Panel Cutout Dimensions [diameter] | 12 mm | 12 - 20.2 mm |
| Switch Function | On-Off | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm), Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - DC | 12 V | 12 V |
CLS-TC11 Series
SWITCH TOGGLE SPST 20A 12V
| Part | Voltage Rating - DC | Actuator Type | Switch Function | Panel Cutout Dimensions [diameter] | Circuit | Termination Style | Current Rating (Amps) | Illumination | Illumination Voltage (Nominal) | Illumination Type, Color | Actuator Length [x] | Bushing Thread | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. CLS-TC11A12252Y | 12 V | Flatted | On-Off | 12 mm | SPST | Quick Connect - 0.250" (6.3mm) | 20 A | Illuminated | 12 VDC | LED, Yellow | 26.27 mm | |||
Lumex Opto/Components Inc. CLS-TC11A12251R | 12 V | Flatted | On-Off | 12.2 mm | SPST | Quick Connect - 0.250" (6.3mm) | Illuminated | 12 VDC | LED, Red | M12 | 0.75 | |||
Lumex Opto/Components Inc. CLS-TC11A12250G | 12 V | Standard Round | On-Off | 12.2 mm | SPST | Quick Connect - 0.250" (6.3mm) | 20 A | Illuminated | 12 VDC | Green, LED | 20 mm | M12 | 0.75 | |
Lumex Opto/Components Inc. CLS-TC11A12190R | 12 V | Flatted | On-Off | 20.2 mm | SPST | Quick Connect - 0.187" (4.7mm) | 20 A | Illuminated | 12 VDC | LED, Red | Panel Mount, Snap-In | |||
Lumex Opto/Components Inc. CLS-TC11A12251G | 12 V | Flatted | On-Off | 12.2 mm | SPST | Quick Connect - 0.250" (6.3mm) | Illuminated | 12 VDC | Green, LED | M12 | 0.75 | |||
Lumex Opto/Components Inc. CLS-TC11A12252G | 12 V | Flatted | On-Off | 12 mm | SPST | Quick Connect - 0.250" (6.3mm) | 20 A | Illuminated | 12 VDC | Green, LED | 26.27 mm | |||
Lumex Opto/Components Inc. CLS-TC11A12190Y | 12 V | Flatted | On-Off | 20.2 mm | SPST | Quick Connect - 0.187" (4.7mm) | 20 A | Illuminated | 12 VDC | LED, Yellow | Panel Mount, Snap-In | |||
Lumex Opto/Components Inc. CLS-TC11A12250R | 12 V | Standard Round | On-Off | 12.2 mm | SPST | Quick Connect - 0.250" (6.3mm) | 20 A | Illuminated | 12 VDC | LED, Red | 20 mm | M12 | 0.75 | |
Lumex Opto/Components Inc. CLS-TC11A12253R | 12 V | Flatted | On-Off | 12 mm | SPST | Quick Connect - 0.250" (6.3mm) | 20 A | Illuminated | 12 VDC | LED, Red | 23.2 mm | |||
Lumex Opto/Components Inc. CLS-TC11A12251Y | 12 V | Flatted | On-Off | 12.2 mm | SPST | Quick Connect - 0.250" (6.3mm) | Illuminated | 12 VDC | LED, Yellow | M12 | 0.75 |
