2M809-001

Active

Amphenol Aerospace Operations

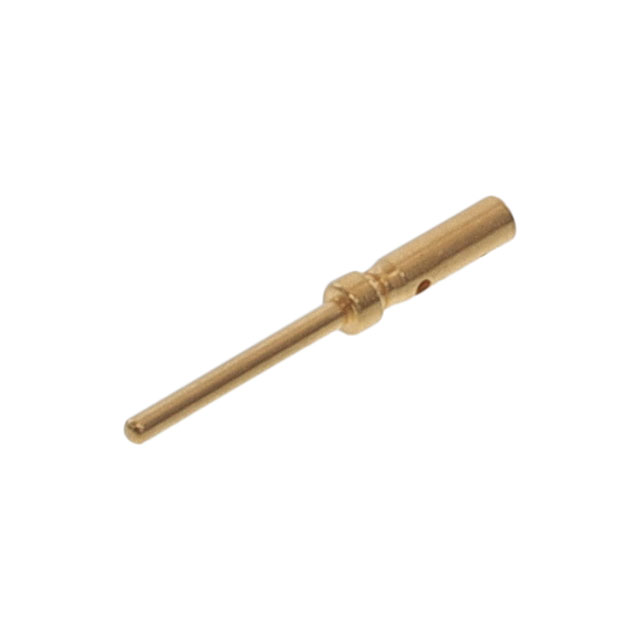

CONTACT PIN 22-28AWG CRIMP GOLD

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONTACT PIN 22-28AWG CRIMP GOLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pin Contact 22-28 AWG Size 23 Crimp Gold

Technical documentation and resources

Specification	2M809-001	2M809 Series

Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Contact Size	23	23
Contact Termination	Crimp	Crimp
Contact Type	Pin	Pin
For Use With/Related Products	-	Circular Contacts
Tool Type	-	Extraction Tool, Insertion/Extraction Tool
Type	Power, Machined	Power, Machined
Wire Gauge or Range - AWG [Max]	28 AWG	28 AWG
Wire Gauge or Range - AWG [Min]	22 AWG	22 AWG

Part	Contact Finish	Contact Material	Type	Contact Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Size	Contact Termination	For Use With/Related Products	Tool Type
Amphenol Aerospace Operations 2M809-001	Gold	Copper Alloy	Power, Machined	Pin	28 AWG	22 AWG	23	Crimp
Amphenol Aerospace Operations 2M809-20HDR									Circular Contacts	Extraction Tool
Amphenol Aerospace Operations 2M809-088									Circular Contacts	Insertion/Extraction Tool
