MX23A18SF1
ActiveJAE Electronics

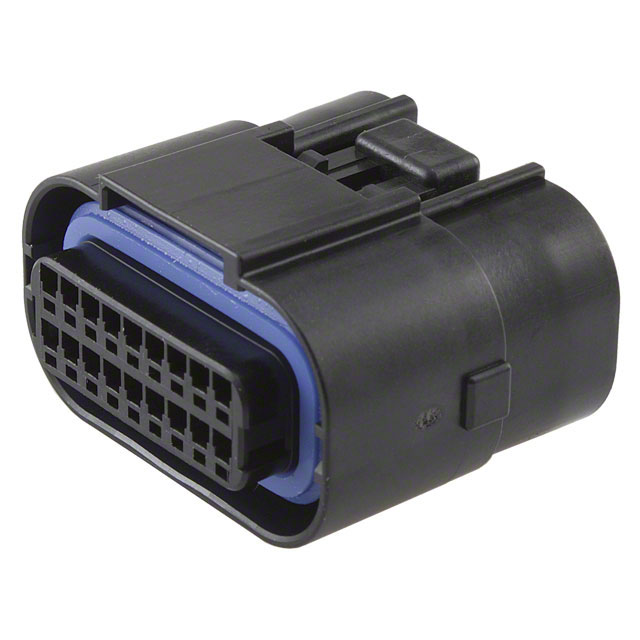

CONN RCPT HSG 18POS 2.50MM
Deep-Dive with AI
Search across all available documentation for this part.
MX23A18SF1
ActiveJAE Electronics
CONN RCPT HSG 18POS 2.50MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MX23A18SF1 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Waterproof |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
| Row Spacing | 0.173 in |
| Row Spacing | 4.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.92 | |
| 10 | $ 5.30 | |||
| 25 | $ 4.79 | |||
| 40 | $ 4.54 | |||
| 80 | $ 4.21 | |||
| 230 | $ 3.77 | |||
| 440 | $ 3.53 | |||
| 945 | $ 3.27 | |||
| 2400 | $ 3.00 | |||
Description
General part information
MX23A Series
18 Rectangular Connectors - Housings Receptacle Black 0.098" (2.50mm)
