MX23A40SF1

Active

JAE Electronics

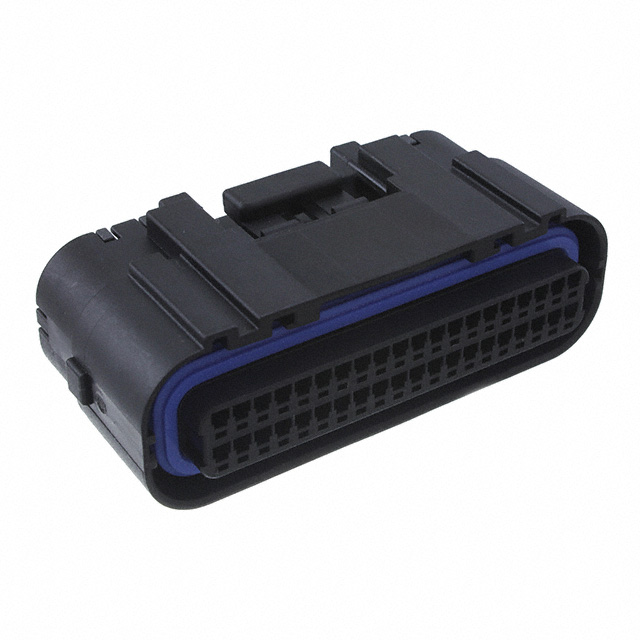

CONN RCPT HSG 40POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MX23A40SF1

Active

JAE Electronics

CONN RCPT HSG 40POS 2.50MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MX23A40SF1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Waterproof
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	40
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm
Row Spacing	0.173 in
Row Spacing	4.4 mm

MX23A Series

Part	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Contact Termination	Row Spacing	Row Spacing	Mounting Type	Color	Number of Rows	Pitch [x]	Pitch [x]	Contact Type	Note	Fastening Type	Connector Type	Features
JAE Electronics MX23A40SF1	40	125 °C	-40 °C	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	0.173 in	4.4 mm	Free Hanging (In-Line)	Black	3	0.098 in	2.5 mm	Female Socket	Contacts Not Included	Latch Lock	Receptacle	Waterproof
JAE Electronics MX23A34SF1	34	125 °C	-40 °C	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	0.173 in	4.4 mm	Free Hanging (In-Line)	Black	2	0.098 in	2.5 mm	Female Socket	Contacts Not Included	Latch Lock	Receptacle	Waterproof
JAE Electronics MX23A36SF2	36	125 °C	-40 °C	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	0.173 in	4.4 mm	Free Hanging (In-Line)	Black	3	0.098 in	2.5 mm	Female Socket	Contacts Not Included	Latch Lock	Receptacle	Waterproof
JAE Electronics MX23A18SF1	18	125 °C	-40 °C	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	0.173 in	4.4 mm	Free Hanging (In-Line)	Black	2	0.098 in	2.5 mm	Female Socket	Contacts Not Included	Latch Lock	Receptacle	Waterproof
JAE Electronics MX23A26UF1		125 °C	-40 °C	Polybutylene Terephthalate (PBT) Glass Filled										Contacts Not Included
JAE Electronics MX23A18SFG		125 °C	-40 °C	Polybutylene Terephthalate (PBT) Glass Filled										Contacts Not Included
JAE Electronics MX23A12SF1	12	125 °C	-40 °C	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	0.173 in	4.4 mm	Free Hanging (In-Line)	Black	2	0.098 in	2.5 mm	Female Socket	Contacts Not Included	Latch Lock	Receptacle	Waterproof
JAE Electronics MX23A26SF1	26	125 °C	-40 °C	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	0.173 in	4.4 mm	Free Hanging (In-Line)	Black	2	0.098 in	2.5 mm	Female Socket	Contacts Not Included	Latch Lock	Receptacle	Waterproof
JAE Electronics MX23A18SF3		125 °C	-40 °C	Polybutylene Terephthalate (PBT) Glass Filled										Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.85
		10	$ 20.01
		180	$ 17.91

Description

General part information

MX23A Series

40 Rectangular Connectors - Housings Receptacle Black 0.098" (2.50mm)
