794617-6
ActiveTE Connectivity AMP Connectors

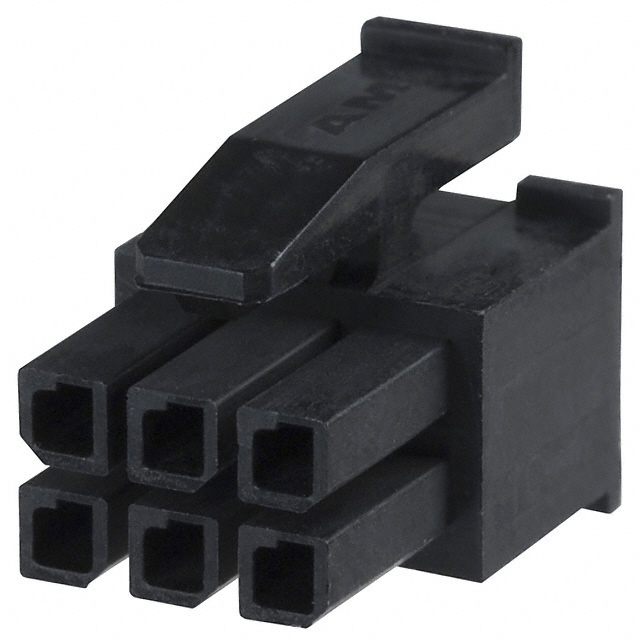

CONN RCPT HSG 6POS 3.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794617-6 | 794617 Series |
|---|---|---|
| Color | Black | Black, Natural |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 6 | 4 - 24 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 3 mm | 3 mm |
| Pitch [x] | 0.118 in | 0.118 in |
| Row Spacing [x] | 0.118 in | 0.118 in |
| Row Spacing [x] | 3 mm | 3 mm |
794617 Series
CONN RCPT HSG 6POS 3.00MM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Insulation Material | Number of Positions | Fastening Type | Mounting Type | Connector Type | Row Spacing [x] | Row Spacing [x] | Contact Type | Number of Rows | Note | Color | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 794617-6 | -40 °C | 105 ░C | Crimp | Polyamide (PA66), Nylon 6/6 | 6 | Latch Lock | Free Hanging (In-Line) | Receptacle | 0.118 in | 3 mm | Female Socket | 2 | Contacts Not Included | Black | 3 mm | 0.118 in |
TE Connectivity AMP Connectors 1-794617-8 | -40 °C | 105 ░C | Crimp | Polyamide (PA66), Nylon 6/6 | 18 | Latch Lock | Free Hanging (In-Line) | Receptacle | 0.118 in | 3 mm | Female Socket | 2 | Contacts Not Included | Black | 3 mm | 0.118 in |
TE Connectivity AMP Connectors 2-794617-4 | -40 °C | 105 ░C | Crimp | Polyamide (PA66), Nylon 6/6 | 24 | Latch Lock | Free Hanging (In-Line) | Receptacle | 0.118 in | 3 mm | Female Socket | 2 | Contacts Not Included | Black | 3 mm | 0.118 in |
TE Connectivity AMP Connectors 3-794617-8 | -40 °C | 105 ░C | Crimp | Polyamide (PA66), Nylon 6/6 | 8 | Latch Lock | Free Hanging (In-Line) | Receptacle | 0.118 in | 3 mm | Female Socket | 2 | Natural | 3 mm | 0.118 in | |
TE Connectivity AMP Connectors 794617-8 | -40 °C | 105 ░C | Crimp | Polyamide (PA66), Nylon 6/6 | 8 | Latch Lock | Free Hanging (In-Line) | Receptacle | 0.118 in | 3 mm | Female Socket | 2 | Contacts Not Included | Black | 3 mm | 0.118 in |
TE Connectivity AMP Connectors 794617-4 | -40 °C | 105 ░C | Crimp | Polyamide (PA66), Nylon 6/6 | 4 | Latch Lock | Free Hanging (In-Line) | Receptacle | 0.118 in | 3 mm | Female Socket | 2 | Contacts Not Included | Black | 3 mm | 0.118 in |
TE Connectivity AMP Connectors 1-794617-0 | -40 °C | 105 ░C | Crimp | Polyamide (PA66), Nylon 6/6 | 10 | Latch Lock | Free Hanging (In-Line) | Receptacle | 0.118 in | 3 mm | Female Socket | 2 | Contacts Not Included | Black | 3 mm | 0.118 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.60 | |
| 10 | $ 0.58 | |||
| 25 | $ 0.58 | |||
| 50 | $ 0.56 | |||
| 100 | $ 0.47 | |||
| 250 | $ 0.44 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.36 | |||
| 2500 | $ 0.34 | |||
Description
General part information
794617 Series
6 Rectangular Connectors - Housings Receptacle Black 0.118" (3.00mm)
