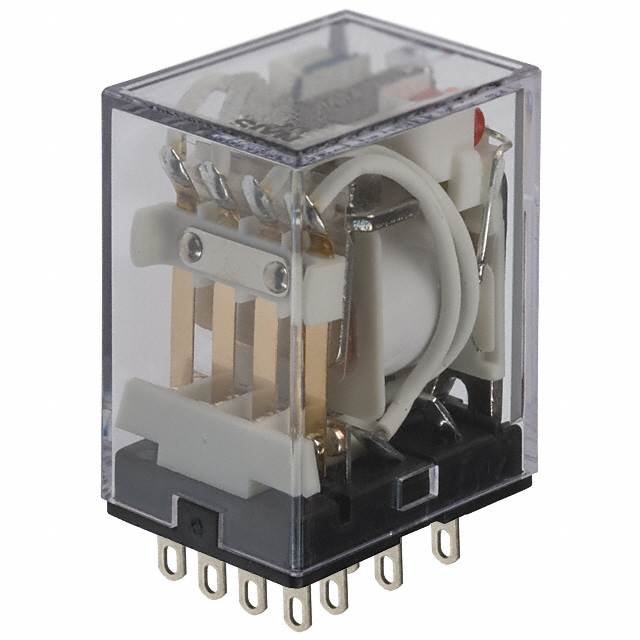

HJ4-L-AC200V

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE 4PDT 5A 200V

Deep-Dive with AI

DocumentsHow to Read Date Codes Standards Chart +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HJ4-L-AC200V

Approval Agency	cURus, TUV
Coil Current	6.7 mA
Coil Resistance	29.85 kOhms
Coil Type	Non Latching
Coil Voltage	200 VAC
Contact Form	4PDT (4 Form C)
Contact Material	Silver (Ag)
Contact Rating (Current)	5 A
Features	Lighted Indicator
Load - Max Switching	625 W, 1250 VA
Mounting Type	Socketable
Must Operate Voltage	160 VAC
Must Release Voltage	60 VAC/DC
Operate Time	20 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage	250 VAC, 125 VDC
Termination Style	Plug In

HJ4-L-A Series

Part	Contact Form	Contact Material	Coil Resistance	Coil Voltage	Approval Agency	Contact Rating (Current)	Features	Load - Max Switching	Termination Style	Must Release Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type	Coil Current	Must Operate Voltage	Operate Time	Relay Type	Release Time	Mounting Type	Switching Voltage
Panasonic Electric Works HJ4-L-AC24V	4PDT (4 Form C)	Silver (Ag)	526.3 Ohms	24 VAC	cURus TUV	5 A	Lighted Indicator	625 W 1250 VA	Plug In	7.2 VAC	-40 °C	70 °C	Non Latching	45.6 mA	19.2 VAC	20 ms	General Purpose	20 ms	Socketable	125 VDC 250 VAC
Panasonic Electric Works HJ4-L-AC100V	4PDT (4 Form C)	Silver (Ag)	8.62 kOhms	100 VAC	cURus TUV	5 A	Lighted Indicator	625 W 1250 VA	Plug In	30 VAC	-40 °C	70 °C	Non Latching	11.6 mA	80 VAC	20 ms	General Purpose	20 ms	Socketable	125 VDC 250 VAC
Panasonic Electric Works HJ4-L-AC200V	4PDT (4 Form C)	Silver (Ag)	29.85 kOhms	200 VAC	cURus TUV	5 A	Lighted Indicator	625 W 1250 VA	Plug In	60 VAC/DC	-40 °C	70 °C	Non Latching	6.7 mA	160 VAC	20 ms	General Purpose	20 ms	Socketable	125 VDC 250 VAC
Panasonic Electric Works HJ4-L-AC120V	4PDT (4 Form C)	Silver (Ag)	13.19 kOhms	120 VAC	cURus TUV	5 A	Lighted Indicator	625 W 1250 VA	Plug In	36 VAC	-40 °C	70 °C	Non Latching	9.1 mA	96 VAC	20 ms	General Purpose	20 ms	Socketable	125 VDC 250 VAC
Panasonic Electric Works HJ4-L-AC24V-6	4PDT (4 Form C)	Gold (Au) Silver (Ag)	526.316 Ohms	24 VAC	cURus TUV	5 A	Lighted Indicator	625 W 1250 VA	Plug In	7.2 VAC	-40 °C	70 °C	Non Latching	45.6 mA	19.2 VAC	20 ms	General Purpose	20 ms	Socketable	125 VDC 250 VAC
Panasonic Electric Works HJ4-L-AC200V-R	4PDT (4 Form C)	Silver (Ag)	35.09 kOhms	200 VAC	cURus TUV	5 A	Lighted Indicator RC Circuit	625 W 1250 VA	Plug In	60 VAC/DC	-40 °C	70 °C	Non Latching	5.7 mA	160 VAC	20 ms	General Purpose	20 ms	Socketable	125 VDC 250 VAC
Panasonic Electric Works HJ4-L-AC240V	4PDT (4 Form C)	Silver (Ag)	42.86 kOhms	240 VAC	cURus TUV	5 A	Lighted Indicator	625 W 1250 VA	Plug In	72 VAC/DC	-40 °C	70 °C	Non Latching		192 VAC	20 ms	General Purpose	20 ms	Socketable	125 VDC 250 VAC
Panasonic Electric Works HJ4-L-AC220/240V	4PDT (4 Form C)	Silver (Ag)	37.5 kOhms	240 VAC	cURus TUV	5 A	Lighted Indicator	625 W 1250 VA	Plug In	72 VAC/DC	-40 °C	70 °C	Non Latching	6.4 mA	192 VAC	20 ms	General Purpose	20 ms	Socketable	125 VDC 250 VAC
