HJ4-L-AC240V

Obsolete

Panasonic Electric Works

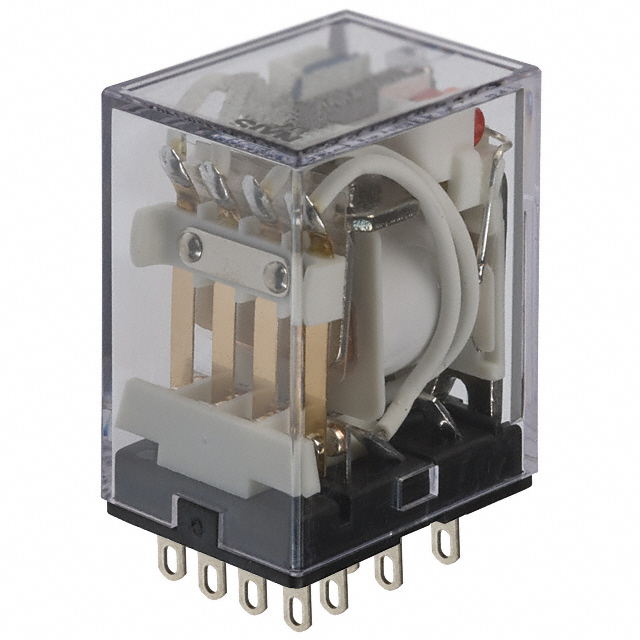

RELAY GEN PURPOSE 4PDT 5A 240V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes General Appl Guidelines +1

HJ4-L-AC240V

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE 4PDT 5A 240V

Deep-Dive with AI

DocumentsHow to Read Date Codes General Appl Guidelines +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HJ4-L-AC240V

Approval Agency	cURus, TUV
Coil Resistance	42.86 kOhms
Coil Type	Non Latching
Coil Voltage	240 VAC
Contact Form	4PDT (4 Form C)
Contact Material	Silver (Ag)
Contact Rating (Current)	5 A
Features	Lighted Indicator
Load - Max Switching	625 W, 1250 VA
Mounting Type	Socketable
Must Operate Voltage	192 VAC
Must Release Voltage	72 VAC/DC
Operate Time	20 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage	250 VAC, 125 VDC
Termination Style	Plug In

HJ4-L-A Series

Part	Contact Form	Contact Material	Coil Resistance	Coil Voltage	Approval Agency	Contact Rating (Current)	Features	Load - Max Switching	Termination Style	Must Release Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type	Coil Current	Must Operate Voltage	Operate Time	Relay Type	Release Time	Mounting Type	Switching Voltage
Panasonic Electric Works HJ4-L-AC24V	4PDT (4 Form C)	Silver (Ag)	526.3 Ohms	24 VAC	cURus TUV	5 A	Lighted Indicator	625 W 1250 VA	Plug In	7.2 VAC	-40 °C	70 °C	Non Latching	45.6 mA	19.2 VAC	20 ms	General Purpose	20 ms	Socketable	125 VDC 250 VAC
Panasonic Electric Works HJ4-L-AC100V	4PDT (4 Form C)	Silver (Ag)	8.62 kOhms	100 VAC	cURus TUV	5 A	Lighted Indicator	625 W 1250 VA	Plug In	30 VAC	-40 °C	70 °C	Non Latching	11.6 mA	80 VAC	20 ms	General Purpose	20 ms	Socketable	125 VDC 250 VAC
Panasonic Electric Works HJ4-L-AC200V	4PDT (4 Form C)	Silver (Ag)	29.85 kOhms	200 VAC	cURus TUV	5 A	Lighted Indicator	625 W 1250 VA	Plug In	60 VAC/DC	-40 °C	70 °C	Non Latching	6.7 mA	160 VAC	20 ms	General Purpose	20 ms	Socketable	125 VDC 250 VAC
Panasonic Electric Works HJ4-L-AC120V	4PDT (4 Form C)	Silver (Ag)	13.19 kOhms	120 VAC	cURus TUV	5 A	Lighted Indicator	625 W 1250 VA	Plug In	36 VAC	-40 °C	70 °C	Non Latching	9.1 mA	96 VAC	20 ms	General Purpose	20 ms	Socketable	125 VDC 250 VAC
Panasonic Electric Works HJ4-L-AC24V-6	4PDT (4 Form C)	Gold (Au) Silver (Ag)	526.316 Ohms	24 VAC	cURus TUV	5 A	Lighted Indicator	625 W 1250 VA	Plug In	7.2 VAC	-40 °C	70 °C	Non Latching	45.6 mA	19.2 VAC	20 ms	General Purpose	20 ms	Socketable	125 VDC 250 VAC
Panasonic Electric Works HJ4-L-AC200V-R	4PDT (4 Form C)	Silver (Ag)	35.09 kOhms	200 VAC	cURus TUV	5 A	Lighted Indicator RC Circuit	625 W 1250 VA	Plug In	60 VAC/DC	-40 °C	70 °C	Non Latching	5.7 mA	160 VAC	20 ms	General Purpose	20 ms	Socketable	125 VDC 250 VAC
Panasonic Electric Works HJ4-L-AC240V	4PDT (4 Form C)	Silver (Ag)	42.86 kOhms	240 VAC	cURus TUV	5 A	Lighted Indicator	625 W 1250 VA	Plug In	72 VAC/DC	-40 °C	70 °C	Non Latching		192 VAC	20 ms	General Purpose	20 ms	Socketable	125 VDC 250 VAC
Panasonic Electric Works HJ4-L-AC220/240V	4PDT (4 Form C)	Silver (Ag)	37.5 kOhms	240 VAC	cURus TUV	5 A	Lighted Indicator	625 W 1250 VA	Plug In	72 VAC/DC	-40 °C	70 °C	Non Latching	6.4 mA	192 VAC	20 ms	General Purpose	20 ms	Socketable	125 VDC 250 VAC
