625-015-662-040
ActiveEDAC Inc.

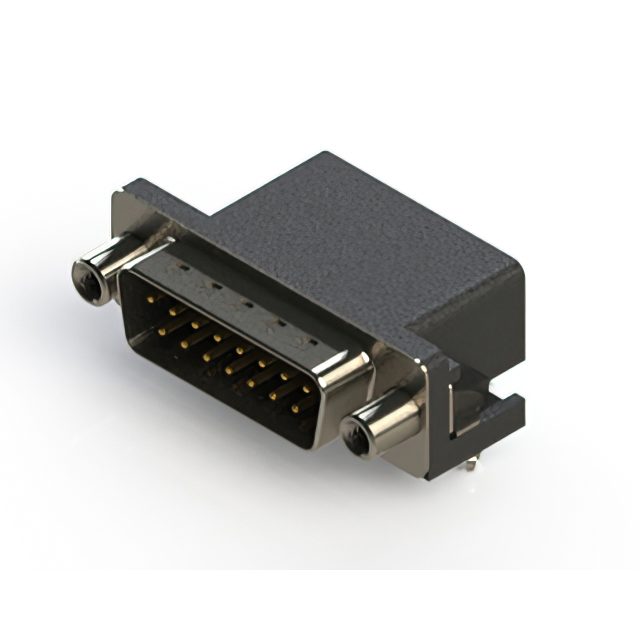

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
625-015-662-040
ActiveEDAC Inc.
RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 625-015-662-040 |
|---|---|
| Backset Spacing | 0.584 in |
| Backset Spacing | 14.84 mm |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Board Lock, Mounting Brackets, Grounding Indents, Shielded |
| Flange Feature | 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Termination | Solder |
625-015 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Shell Material, Finish | Material Flammability Rating | Contact Finish Thickness | Features | Dielectric Material | Number of Positions | Backset Spacing | Backset Spacing | Connector Type | Contact Material | Contact Finish | Connector Style | Contact Type | Termination | Shell Size, Connector Layout | Color | Current Rating (Amps) | Number of Rows | Mounting Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -55 °C | 125 °C | Housing/Shell (Unthreaded) | Nickel Plated Steel | UL94 V-0 | Flash | Grounding Indents Mounting Brackets Shielded | Polyester Thermoplastic | 15 | 0.584 in | 14.84 mm | Male Pins Plug | Copper Alloy | Gold | D-Sub | Signal | Solder | 2 | Black | 3 A | 2 | Board Edge Right Angle Through Hole | ||
EDAC Inc. | -55 °C | 85 °C | 4-40 | Nickel Plated Steel | UL94 V-0 | Board Lock Grounding Indents Mounting Brackets Shielded | Polyester Thermoplastic | 15 | 0.584 in | 14.84 mm | Male Pins Plug | Copper Alloy | Gold | D-Sub | Signal | Solder | 2 | Black | 3 A | 2 | Board Edge Right Angle Through Hole | 0.76 Ám | 30 Áin | |
EDAC Inc. | -55 °C | 125 °C | 4-40 | Nickel Plated Steel | UL94 V-0 | Board Lock Grounding Indents Mounting Brackets Shielded | Polyester Thermoplastic | 15 | 0.584 in | 14.84 mm | Male Pins Plug | Copper Alloy | Gold | D-Sub | Signal | Solder | 2 | Black | 3 A | 2 | Board Edge Right Angle Through Hole | 0.76 Ám | 30 Áin | |
EDAC Inc. | -55 °C | 125 °C | Housing/Shell (M3) | Nickel Plated Steel | UL94 V-0 | Flash | Board Lock Grounding Indents Mounting Brackets Shielded | Polyester Thermoplastic | 15 | 0.584 in | 14.84 mm | Male Pins Plug | Copper Alloy | Gold | D-Sub | Signal | Solder | 2 | Black | 3 A | 2 | Board Edge Right Angle Through Hole | ||
EDAC Inc. | -55 °C | 85 °C | Housing/Shell (4-40) | Nickel Plated Steel | UL94 V-0 | Board Lock Grounding Indents Mounting Brackets Shielded | Polyester Thermoplastic | 15 | 0.584 in | 14.84 mm | Male Pins Plug | Copper Alloy | Gold | D-Sub | Signal | Solder | 2 | Black | 3 A | 2 | Board Edge Right Angle Through Hole | 0.76 Ám | 30 Áin | |
EDAC Inc. | -55 °C | 85 °C | Housing/Shell (4-40) | Nickel Plated Steel | UL94 V-0 | Flash | Board Lock Grounding Indents Mounting Brackets Shielded | Polyester Thermoplastic | 15 | 0.584 in | 14.84 mm | Male Pins Plug | Copper Alloy | Gold | D-Sub | Signal | Solder | 2 | Black | 3 A | 2 | Board Edge Right Angle Through Hole | ||
EDAC Inc. | -55 °C | 125 °C | Housing/Shell (M3) | Nickel Plated Steel | UL94 V-0 | Board Lock Grounding Indents Mounting Brackets Shielded | Polyester Thermoplastic | 15 | 0.584 in | 14.84 mm | Male Pins Plug | Copper Alloy | Gold | D-Sub | Signal | Solder | 2 | Black | 3 A | 2 | Board Edge Right Angle Through Hole | 0.76 Ám | 30 Áin | |
EDAC Inc. | -55 °C | 85 °C | Housing/Shell (Unthreaded) | Nickel Plated Steel | UL94 V-0 | Grounding Indents Mounting Brackets Shielded | Polyester Thermoplastic | 15 | 0.584 in | 14.84 mm | Male Pins Plug | Copper Alloy | Gold | D-Sub | Signal | Solder | 2 | Black | 3 A | 2 | Board Edge Right Angle Through Hole | 0.76 Ám | 30 Áin | |
EDAC Inc. | -55 °C | 85 °C | Housing/Shell (M3) | Nickel Plated Steel | UL94 V-0 | Board Lock Grounding Indents Mounting Brackets Shielded | Polyester Thermoplastic | 15 | 0.584 in | 14.84 mm | Male Pins Plug | Copper Alloy | Gold | D-Sub | Signal | Solder | 2 | Black | 3 A | 2 | Board Edge Right Angle Through Hole | 0.76 Ám | 30 Áin | |
EDAC Inc. | -55 °C | 125 °C | Housing/Shell (M3) | Nickel Plated Steel | UL94 V-0 | Flash | Board Lock Grounding Indents Mounting Brackets Shielded | Polyester Thermoplastic | 15 | 0.584 in | 14.84 mm | Male Pins Plug | Copper Alloy | Gold | D-Sub | Signal | Solder | 2 | Black | 3 A | 2 | Board Edge Right Angle Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
625-015 Series
15 Position D-Sub Plug, Male Pins Connector
