625-015-662-530

Active

EDAC Inc.

625 SERIES RIGHT ANGLE D-SUB PLU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

625-015-662-530

Active

EDAC Inc.

625 SERIES RIGHT ANGLE D-SUB PLU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	625-015-662-530

Backset Spacing	0.584 in
Backset Spacing	14.84 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets, Grounding Indents, Shielded
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder

625-015 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Shell Material, Finish	Material Flammability Rating	Contact Finish Thickness	Features	Dielectric Material	Number of Positions	Backset Spacing	Backset Spacing	Connector Type	Contact Material	Contact Finish	Connector Style	Contact Type	Termination	Shell Size, Connector Layout	Color	Current Rating (Amps)	Number of Rows	Mounting Type	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 625-015-262-511	-55 °C	125 °C	Housing/Shell (Unthreaded)	Nickel Plated Steel	UL94 V-0	Flash	Grounding Indents Mounting Brackets Shielded	Polyester Thermoplastic	15	0.584 in	14.84 mm	Male Pins Plug	Copper Alloy	Gold	D-Sub	Signal	Solder	2	Black	3 A	2	Board Edge Right Angle Through Hole
EDAC Inc. 625-015-662-040	-55 °C	85 °C	4-40	Nickel Plated Steel	UL94 V-0		Board Lock Grounding Indents Mounting Brackets Shielded	Polyester Thermoplastic	15	0.584 in	14.84 mm	Male Pins Plug	Copper Alloy	Gold	D-Sub	Signal	Solder	2	Black	3 A	2	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin
EDAC Inc. 625-015-662-530	-55 °C	125 °C	4-40	Nickel Plated Steel	UL94 V-0		Board Lock Grounding Indents Mounting Brackets Shielded	Polyester Thermoplastic	15	0.584 in	14.84 mm	Male Pins Plug	Copper Alloy	Gold	D-Sub	Signal	Solder	2	Black	3 A	2	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin
EDAC Inc. 625-015-262-535	-55 °C	125 °C	Housing/Shell (M3)	Nickel Plated Steel	UL94 V-0	Flash	Board Lock Grounding Indents Mounting Brackets Shielded	Polyester Thermoplastic	15	0.584 in	14.84 mm	Male Pins Plug	Copper Alloy	Gold	D-Sub	Signal	Solder	2	Black	3 A	2	Board Edge Right Angle Through Hole
EDAC Inc. 625-015-662-042	-55 °C	85 °C	Housing/Shell (4-40)	Nickel Plated Steel	UL94 V-0		Board Lock Grounding Indents Mounting Brackets Shielded	Polyester Thermoplastic	15	0.584 in	14.84 mm	Male Pins Plug	Copper Alloy	Gold	D-Sub	Signal	Solder	2	Black	3 A	2	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin
EDAC Inc. 625-015-262-032	-55 °C	85 °C	Housing/Shell (4-40)	Nickel Plated Steel	UL94 V-0	Flash	Board Lock Grounding Indents Mounting Brackets Shielded	Polyester Thermoplastic	15	0.584 in	14.84 mm	Male Pins Plug	Copper Alloy	Gold	D-Sub	Signal	Solder	2	Black	3 A	2	Board Edge Right Angle Through Hole
EDAC Inc. 625-015-662-545	-55 °C	125 °C	Housing/Shell (M3)	Nickel Plated Steel	UL94 V-0		Board Lock Grounding Indents Mounting Brackets Shielded	Polyester Thermoplastic	15	0.584 in	14.84 mm	Male Pins Plug	Copper Alloy	Gold	D-Sub	Signal	Solder	2	Black	3 A	2	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin
EDAC Inc. 625-015-662-011	-55 °C	85 °C	Housing/Shell (Unthreaded)	Nickel Plated Steel	UL94 V-0		Grounding Indents Mounting Brackets Shielded	Polyester Thermoplastic	15	0.584 in	14.84 mm	Male Pins Plug	Copper Alloy	Gold	D-Sub	Signal	Solder	2	Black	3 A	2	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin
EDAC Inc. 625-015-662-035	-55 °C	85 °C	Housing/Shell (M3)	Nickel Plated Steel	UL94 V-0		Board Lock Grounding Indents Mounting Brackets Shielded	Polyester Thermoplastic	15	0.584 in	14.84 mm	Male Pins Plug	Copper Alloy	Gold	D-Sub	Signal	Solder	2	Black	3 A	2	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin
EDAC Inc. 625-015-262-545	-55 °C	125 °C	Housing/Shell (M3)	Nickel Plated Steel	UL94 V-0	Flash	Board Lock Grounding Indents Mounting Brackets Shielded	Polyester Thermoplastic	15	0.584 in	14.84 mm	Male Pins Plug	Copper Alloy	Gold	D-Sub	Signal	Solder	2	Black	3 A	2	Board Edge Right Angle Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 6.91

Description

General part information

625-015 Series

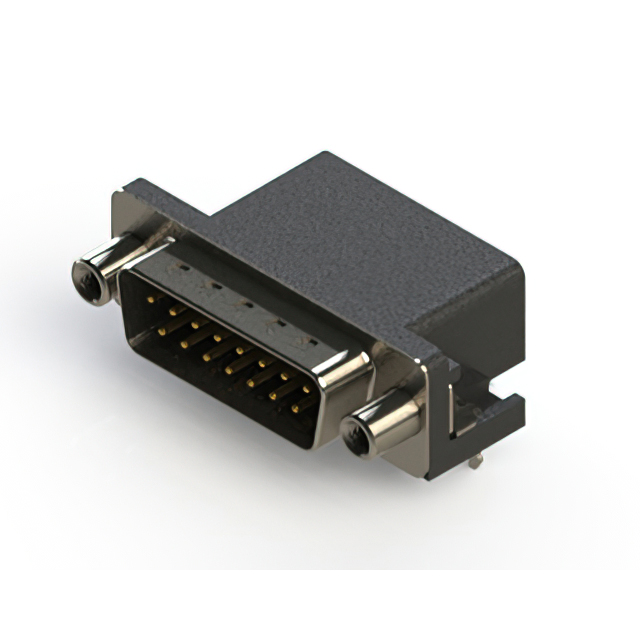

15 Position D-Sub Plug, Male Pins Connector
