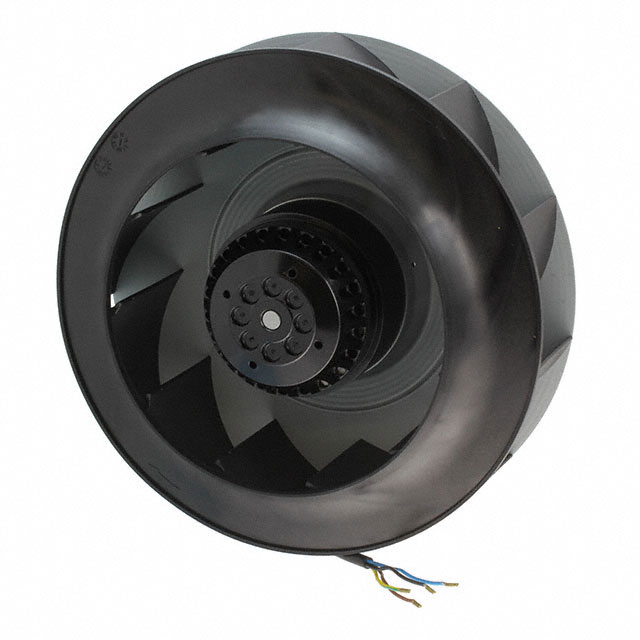

UF250APA12-H1C2A

Active

Mechatronics Fan Group

IMPELLER 251X98MM 115VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Backward Curved Impellers +1

UF250APA12-H1C2A

Active

Mechatronics Fan Group

IMPELLER 251X98MM 115VAC

Deep-Dive with AI

DocumentsDatasheet Backward Curved Impellers +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 133.95
		16	$ 120.39

Description

General part information

UF250 Series

Fan Motorized Impellers 115VAC Round - 251mm Dia Ball 850.0 CFM (23.80m³/min) 4 Wire Leads

Documents

Technical documentation and resources

Datasheet

Backward Curved Impellers

Datasheet

Blowers & Impellers Part Numbering

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF250APA12-H1C2A	UF250 Series

Air Flow	23.8 mł/min	19.07 - 31.64 mł/min
Air Flow	850 CFM	681 - 1130 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	2.1 A	0.82 - 2.1 A
Fan Type	Motorized Impellers	Motorized Impellers, Tubeaxial
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor, Speed Sensor (Tach)
Material - Blade	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Metal
Material - Frame	Aluminum	Aluminum, Metal
Noise	76 dB(A)	70 - 76 dB(A)
Operating Temperature	-	70 °C
Operating Temperature [Max]	50 °C	50 - 70 °C
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-40 °C	-40 - -20 °C
Operating Temperature [Min]	-40 °C	-40 - -20 °C
Power (Watts)	240 W	148 - 240 W
RPM	2700 RPM	2700 RPM
Size / Dimension	-	280 mm
Size / Dimension	-	280 mm
Size / Dimension [diameter]	251 mm	250 - 259 mm
Static Pressure	722.4 Pa	194.3 - 772.2 Pa
Static Pressure	2.9 in H2O	0.78 - 3.1 in H2O
Termination	4 Wire Leads	4 Wire Leads, 2 Terminals, 2 Wire Leads
Termination	-	3 Terminals
Voltage - Rated	115 VAC	115 - 230 VAC
Weight	3.1 kg	2.8 - 3.3 kg
Weight	6.8 lbs	6.1 - 7.2 lbs
Width	-	98.1 mm
Width [y]	98 mm	80 - 131 mm

UF250 Series

IMPELLER 251X98MM 115VAC

Part	Fan Type	Voltage - Rated	RPM	Features	Width [y]	Weight	Weight	Noise	Material - Blade	Power (Watts)	Approval Agency	Termination	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Frame	Air Flow	Air Flow	Size / Dimension [diameter]	Bearing Type	Static Pressure	Static Pressure	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Termination	Width [x]
Mechatronics Fan Group UF250APA12-H1C2A	Motorized Impellers	115 VAC	2700 RPM	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	98 mm	3.1 kg	6.8 lbs	76 dB(A)	Nylon, Polyamide (PA)	240 W	CE, cUL, TUV, UL	4 Wire Leads	2.1 A	50 °C	-40 °C	-40 °C	50 °C	Aluminum	23.8 mł/min	850 CFM	251 mm	Ball	722.4 Pa	2.9 in H2O
Mechatronics Fan Group UF250BMB12-H1C2A	Tubeaxial	115 VAC	2700 RPM	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	80 mm	2.8 kg	6.1 lbs	70 dB(A)	Metal	148 W	CE, cUL, TUV, UL	2 Terminals	1.5 A	70 °C	-20 C	-20 °C		Metal	31.64 m³/min	1130 CFM		Ball	194.3 Pa	0.78 in H2O	70 °C	280 mm	280 mm
Mechatronics Fan Group UF250BMB23-H1C2A-B1	Tubeaxial	230 VAC	2700 RPM	Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	80 mm	2.8 kg	6.1 lbs	70 dB(A)	Metal	158 W	CE, cUL, TUV, UL		0.82 A	70 °C	-20 C	-20 °C		Metal	31.64 m³/min	1130 CFM		Ball	194.3 Pa	0.78 in H2O	70 °C	280 mm	280 mm	3 Terminals
Mechatronics Fan Group UF250BMB23-H1C2A	Tubeaxial	230 VAC	2700 RPM	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	80 mm	2.8 kg	6.1 lbs	70 dB(A)	Metal	158 W	CE, cUL, TUV, UL	2 Terminals	0.82 A	70 °C	-20 C	-20 °C		Metal	31.64 m³/min	1130 CFM		Ball	194.3 Pa	0.78 in H2O	70 °C	280 mm	280 mm
Mechatronics Fan Group UF250APA12-H1C4A	Motorized Impellers	115 VAC		Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)		3.1 kg	6.8 lbs	76 dB(A)	Nylon, Polyamide (PA)		CE, cUL, TUV, UL	4 Wire Leads		50 °C	-40 °C	-40 °C	50 °C	Aluminum	21.56 m³/min	770 CFM	250 mm	Ball	548 Pa	2.2 in H2O					98.1 mm
Mechatronics Fan Group UF250APA23-H1C2F	Motorized Impellers	230 VAC	2700 RPM	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	131 mm	3.3 kg	7.2 lbs	72 dB(A)	Nylon, Polyamide (PA)	240 W	CE, cUL, TUV, UL	4 Wire Leads	1 A	50 °C	-40 °C	-40 °C	50 °C	Aluminum	19.07 m³/min	681 CFM	259 mm	Ball	772.2 Pa	3.1 in H2O
Mechatronics Fan Group UF250BMB12-H1C2A-B1	Tubeaxial	115 VAC	2700 RPM	Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	80 mm	2.8 kg	6.1 lbs	70 dB(A)	Metal	148 W	CE, cUL, TUV, UL		1.5 A	70 °C	-20 C	-20 °C		Metal	31.64 m³/min	1130 CFM		Ball	194.3 Pa	0.78 in H2O	70 °C	280 mm	280 mm	3 Terminals
Mechatronics Fan Group UF250APA12-H1C2F	Motorized Impellers	115 VAC	2700 RPM	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	131 mm	3.3 kg	7.2 lbs	72 dB(A)	Nylon, Polyamide (PA)	240 W	CE, cUL, TUV, UL	4 Wire Leads		50 °C	-40 °C	-40 °C	50 °C	Aluminum	19.07 m³/min	681 CFM	259 mm	Ball	772.2 Pa	3.1 in H2O
Mechatronics Fan Group UF250BMB12-H1C2B	Tubeaxial	115 VAC	2700 RPM	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	80 mm	2.8 kg	6.2 lbs	70 dB(A)	Metal	148 W	CE, cUL, TUV, UL	2 Wire Leads	1.9 A	70 °C	-20 C	-20 °C		Metal	31.64 m³/min	1130 CFM		Ball	194.3 Pa	0.78 in H2O	70 °C	280 mm	280 mm
Mechatronics Fan Group UF250BMB12-H2C2A	Tubeaxial	115 VAC		Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	80 mm	2.8 kg	6.2 lbs		Metal		CE, cUL, TUV, UL	2 Terminals		70 °C	-20 C	-20 °C		Metal				Ball			70 °C	280 mm	280 mm
