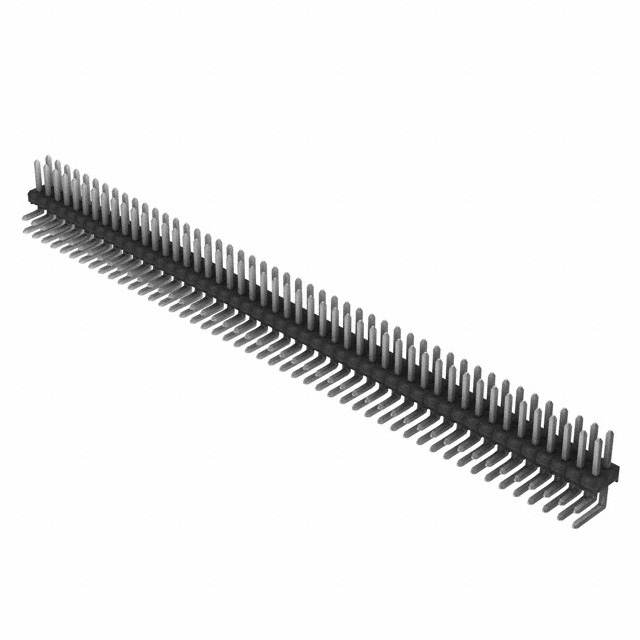

TSW-148-08-T-D-RA

Active

Samtec Inc.

RIGHT-ANGLE TIN 96P -55℃~+105℃ 2.54MM DOUBLE ROW BLACK PHOSPHOR BRONZE 2.54MM PUSH-PULL,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TSW Footprint

TSW-148-08-T-D-RA

Active

Samtec Inc.

RIGHT-ANGLE TIN 96P -55℃~+105℃ 2.54MM DOUBLE ROW BLACK PHOSPHOR BRONZE 2.54MM PUSH-PULL,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

DocumentsDatasheet TSW Footprint

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSW-148-08-T-D-RA

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.56 mm
Insulation Height [z]	0.219 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	96
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSW-148 Series

Part	Insulation Material	Contact Length - Post [x]	Contact Length - Post	Contact Finish - Mating	Fastening Type	Contact Material	Contact Finish - Post	Insulation Color	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Contact Shape	Number of Positions Loaded	Termination	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Length - Mating	Contact Length - Mating	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Type	Shrouding	Contact Length - Mating [x]	Contact Length - Post [x]	Contact Length - Post	Insulation Height [z]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. TSW-148-17-L-D	Polybutylene Terephthalate (PBT)	0.11 in	2.79 mm	Gold	Push-Pull	Phosphor Bronze	Tin	Black	UL94 V-0	2.54 mm	0.1 in	2	-55 °C	125 °C	0.83 in	21.08 mm	0.1 in	2.54 mm	Square	All	Solder	Through Hole	0.1 in	2.54 mm	96	15.75 mm	0.62 in	Board to Board Cable	10 çin	0.25 çm	Header	Male Pin	Unshrouded
Samtec Inc. TSW-148-08-S-D	Polybutylene Terephthalate (PBT)	0.2 in		Gold	Push-Pull	Phosphor Bronze	Tin	Black	UL94 V-0	2.54 mm	0.1 in	2	-55 °C	125 °C	0.53 in	13.46 mm	0.1 in	2.54 mm	Square	All	Solder	Through Hole	0.1 in	2.54 mm	96	5.84 mm		Board to Board Cable	30 Áin	0.76 Ám	Header	Male Pin	Unshrouded	0.23 in	5.08 mm
Samtec Inc. TSW-148-07-S-T	Polybutylene Terephthalate (PBT)		2.54 mm	Gold	Push-Pull	Phosphor Bronze	Tin	Black	UL94 V-0	2.54 mm	0.1 in	3	-55 °C	125 °C	0.43 in	10.92 mm	0.1 in	2.54 mm	Square	All	Solder	Through Hole	0.1 in	2.54 mm	144	5.84 mm		Board to Board Cable	30 Áin	0.76 Ám	Header	Male Pin	Unshrouded	0.23 in		0.1 in
Samtec Inc. TSW-148-08-T-D-RA	Polybutylene Terephthalate (PBT)		2.29 mm		Push-Pull	Phosphor Bronze	Tin	Black	UL94 V-0	2.54 mm	0.1 in	2	-55 °C	105 ░C				5.56 mm	Square	All	Solder	Through Hole Right Angle	0.1 in	2.54 mm	96	5.84 mm		Board to Board Cable			Header	Male Pin	Unshrouded	0.23 in		0.09 "	0.219 in
Samtec Inc. TSW-148-26-L-D	Polybutylene Terephthalate (PBT)	0.126 in	3.2 mm	Gold	Push-Pull	Phosphor Bronze	Tin	Black	UL94 V-0	2.54 mm	0.1 in	2	-55 °C	125 °C	0.456 in	11.58 mm	0.1 in	2.54 mm	Square	All	Solder	Through Hole	0.1 in	2.54 mm	96	5.84 mm		Board to Board Cable	10 çin	0.25 çm	Header	Male Pin	Unshrouded	0.23 in
Samtec Inc. TSW-148-08-T-S	Polybutylene Terephthalate (PBT)	0.2 in			Push-Pull	Phosphor Bronze	Tin	Black	UL94 V-0			1	-55 °C	105 ░C	0.53 in	13.46 mm	0.1 in	2.54 mm	Square	All	Solder	Through Hole	0.1 in	2.54 mm	48	5.84 mm		Board to Board Cable			Header	Male Pin	Unshrouded	0.23 in	5.08 mm
Samtec Inc. TSW-148-05-G-D	Polybutylene Terephthalate (PBT)		3.3 mm	Gold	Push-Pull	Phosphor Bronze	Gold	Black	UL94 V-0	2.54 mm	0.1 in	2	-55 °C	125 °C	0.335 in	8.51 mm	0.1 in	2.54 mm	Square	All	Solder	Through Hole	0.1 in	2.54 mm	96			Board to Board Cable	10 çin	0.25 çm	Header	Male Pin	Unshrouded			0.13 in		3 µin	0.076 µm
Samtec Inc. TSW-148-08-L-D	Polybutylene Terephthalate (PBT)	0.2 in		Gold	Push-Pull	Phosphor Bronze	Tin	Black	UL94 V-0	2.54 mm	0.1 in	2	-55 °C	125 °C	0.53 in	13.46 mm	0.1 in	2.54 mm	Square	All	Solder	Through Hole	0.1 in	2.54 mm	96	5.84 mm		Board to Board Cable	10 çin	0.25 çm	Header	Male Pin	Unshrouded	0.23 in	5.08 mm
Samtec Inc. TSW-148-07-S-S	Polybutylene Terephthalate (PBT)		2.54 mm	Gold	Push-Pull	Phosphor Bronze	Tin	Black	UL94 V-0			1	-55 °C	125 °C	0.43 in	10.92 mm	0.1 in	2.54 mm	Square	All	Solder	Through Hole	0.1 in	2.54 mm	48	5.84 mm		Board to Board Cable	30 Áin	0.76 Ám	Header	Male Pin	Unshrouded	0.23 in		0.1 in
Samtec Inc. TSW-148-14-L-S	Polybutylene Terephthalate (PBT)	0.11 in	2.79 mm	Gold	Push-Pull	Phosphor Bronze	Tin	Black	UL94 V-0			1	-55 °C	125 °C	0.53 in	13.46 mm	0.1 in	2.54 mm	Square	All	Solder	Through Hole	0.1 in	2.54 mm	48	8.13 mm	0.32 in	Board to Board Cable	10 çin	0.25 çm	Header	Male Pin	Unshrouded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.87
		10	$ 5.33
		100	$ 4.69
		500	$ 3.99
		1000	$ 3.40
LCSC	Piece	1	$ 8.39
		200	$ 3.35
		500	$ 3.24
		1000	$ 3.18

Description

General part information

TSW-148 Series

Connector Header Through Hole, Right Angle 96 position 0.100" (2.54mm)
