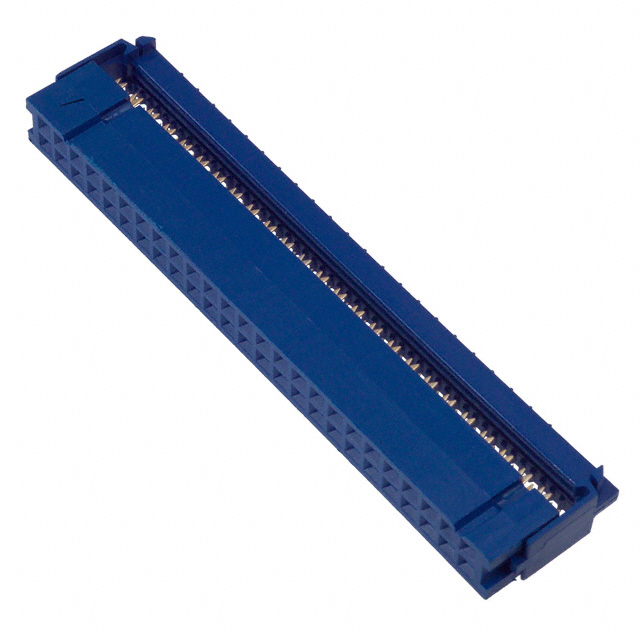

CWR-220-50-0000
ActiveCW Industries
CONN RCPT 50POS IDC GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CWR-220-50-0000
ActiveCW Industries
CONN RCPT 50POS IDC GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CWR-220-50-0000 |
|---|---|
| Cable Termination | IDC |
| Color | Blue |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Type | Female Socket |
| Features | Feed Through |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
| Wire Type | Ribbon Cable |
CWR-220 Series
| Part | Number of Rows | Mounting Type | Cable Termination | Connector Type | Row Spacing [x] | Row Spacing | Features | Pitch [x] | Pitch [x] | Number of Positions | Wire Type | Contact Type | Color | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CW Industries | 2 | Free Hanging (In-Line) | IDC | Receptacle | 0.1 in | 2.54 mm | Feed Through | 2.54 mm | 0.1 in | 20 | Ribbon Cable | Female Socket | Blue | Tin | |||
CW Industries | 2 | Free Hanging (In-Line) | IDC | Receptacle | 0.1 in | 2.54 mm | Feed Through | 2.54 mm | 0.1 in | 40 | Ribbon Cable | Female Socket | Blue | Tin-Lead | 2.54 µm | 100 µin | |
CW Industries | 2 | Free Hanging (In-Line) | IDC | Receptacle | 0.1 in | 2.54 mm | Feed Through | 2.54 mm | 0.1 in | 34 | Ribbon Cable | Female Socket | Blue | Tin | |||
CW Industries | 2 | Free Hanging (In-Line) | IDC | Receptacle | 0.1 in | 2.54 mm | Feed Through | 2.54 mm | 0.1 in | 20 | Ribbon Cable | Female Socket | Blue | Tin-Lead | 2.54 µm | 100 µin | |
CW Industries | 2 | Free Hanging (In-Line) | IDC | Receptacle | 0.1 in | 2.54 mm | Feed Through | 2.54 mm | 0.1 in | Ribbon Cable | Female Socket | Blue | Tin | 16 | |||
CW Industries | 2 | Free Hanging (In-Line) | IDC | Receptacle | 0.1 in | 2.54 mm | Feed Through | 2.54 mm | 0.1 in | 14 | Ribbon Cable | Female Socket | Blue | Gold | 0.25 Ám | 10 Áin | |
CW Industries | 2 | Free Hanging (In-Line) | IDC | Receptacle | 0.1 in | 2.54 mm | Feed Through | 2.54 mm | 0.1 in | 50 | Ribbon Cable | Female Socket | Blue | Gold | 0.25 Ám | 10 Áin | |
CW Industries | 2 | Free Hanging (In-Line) | IDC | Receptacle | 0.1 in | 2.54 mm | Feed Through | 2.54 mm | 0.1 in | 20 | Ribbon Cable | Female Socket | Blue | Gold | 0.76 Ám | 30 Áin | |
CW Industries | 2 | Free Hanging (In-Line) | IDC | Receptacle | 0.1 in | 2.54 mm | Feed Through | 2.54 mm | 0.1 in | 34 | Ribbon Cable | Female Socket | Blue | Tin-Lead | 2.54 µm | 100 µin | |
CW Industries | 2 | Free Hanging (In-Line) | IDC | Receptacle | 0.1 in | 2.54 mm | Feed Through | 2.54 mm | 0.1 in | 10 | Ribbon Cable | Female Socket | Blue | Gold | 0.76 Ám | 30 Áin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.12 | |
| 10 | $ 6.23 | |||
| 25 | $ 5.62 | |||
| 50 | $ 5.22 | |||
| 100 | $ 4.84 | |||
| 250 | $ 4.41 | |||
| 500 | $ 4.24 | |||
Description
General part information
CWR-220 Series
50 Position Rectangular Receptacle Connector IDC Gold
