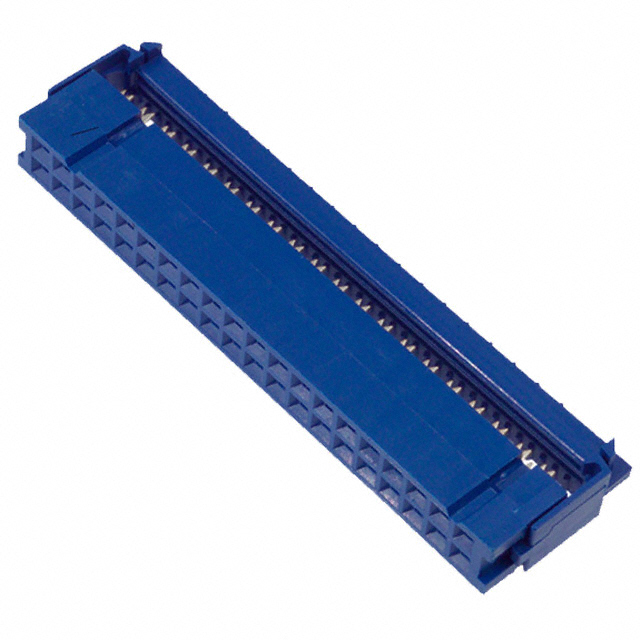

CWR-220-40-0003

Active

CW Industries

CONN RCPT 40POS IDC TIN-LEAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSocket Connectors

CWR-220-40-0003

Active

CW Industries

CONN RCPT 40POS IDC TIN-LEAD

Deep-Dive with AI

DocumentsSocket Connectors

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CWR-220-40-0003

Cable Termination	IDC
Color	Blue
Connector Type	Receptacle
Contact Finish	Tin-Lead
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Contact Type	Female Socket
Features	Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	40
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

CWR-220 Series

Part	Number of Rows	Mounting Type	Cable Termination	Connector Type	Row Spacing [x]	Row Spacing	Features	Pitch [x]	Pitch [x]	Number of Positions	Wire Type	Contact Type	Color	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions
CW Industries CWR-220-20-0203	2	Free Hanging (In-Line)	IDC	Receptacle	0.1 in	2.54 mm	Feed Through	2.54 mm	0.1 in	20	Ribbon Cable	Female Socket	Blue	Tin
CW Industries CWR-220-40-0003	2	Free Hanging (In-Line)	IDC	Receptacle	0.1 in	2.54 mm	Feed Through	2.54 mm	0.1 in	40	Ribbon Cable	Female Socket	Blue	Tin-Lead	2.54 µm	100 µin
CW Industries CWR-220-34-0203	2	Free Hanging (In-Line)	IDC	Receptacle	0.1 in	2.54 mm	Feed Through	2.54 mm	0.1 in	34	Ribbon Cable	Female Socket	Blue	Tin
CW Industries CWR-220-20-0003	2	Free Hanging (In-Line)	IDC	Receptacle	0.1 in	2.54 mm	Feed Through	2.54 mm	0.1 in	20	Ribbon Cable	Female Socket	Blue	Tin-Lead	2.54 µm	100 µin
CW Industries CWR-220-16-0203	2	Free Hanging (In-Line)	IDC	Receptacle	0.1 in	2.54 mm	Feed Through	2.54 mm	0.1 in		Ribbon Cable	Female Socket	Blue	Tin			16
CW Industries CWR-220-14-0000	2	Free Hanging (In-Line)	IDC	Receptacle	0.1 in	2.54 mm	Feed Through	2.54 mm	0.1 in	14	Ribbon Cable	Female Socket	Blue	Gold	0.25 Ám	10 Áin
CW Industries CWR-220-50-0000	2	Free Hanging (In-Line)	IDC	Receptacle	0.1 in	2.54 mm	Feed Through	2.54 mm	0.1 in	50	Ribbon Cable	Female Socket	Blue	Gold	0.25 Ám	10 Áin
CW Industries CWR-220-20-0021	2	Free Hanging (In-Line)	IDC	Receptacle	0.1 in	2.54 mm	Feed Through	2.54 mm	0.1 in	20	Ribbon Cable	Female Socket	Blue	Gold	0.76 Ám	30 Áin
CW Industries CWR-220-34-0003	2	Free Hanging (In-Line)	IDC	Receptacle	0.1 in	2.54 mm	Feed Through	2.54 mm	0.1 in	34	Ribbon Cable	Female Socket	Blue	Tin-Lead	2.54 µm	100 µin
CW Industries CWR-220-10-0021	2	Free Hanging (In-Line)	IDC	Receptacle	0.1 in	2.54 mm	Feed Through	2.54 mm	0.1 in	10	Ribbon Cable	Female Socket	Blue	Gold	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CWR-220 Series

40 Position Rectangular Receptacle Connector IDC Tin-Lead

Documents

Technical documentation and resources

Socket Connectors

Datasheet
