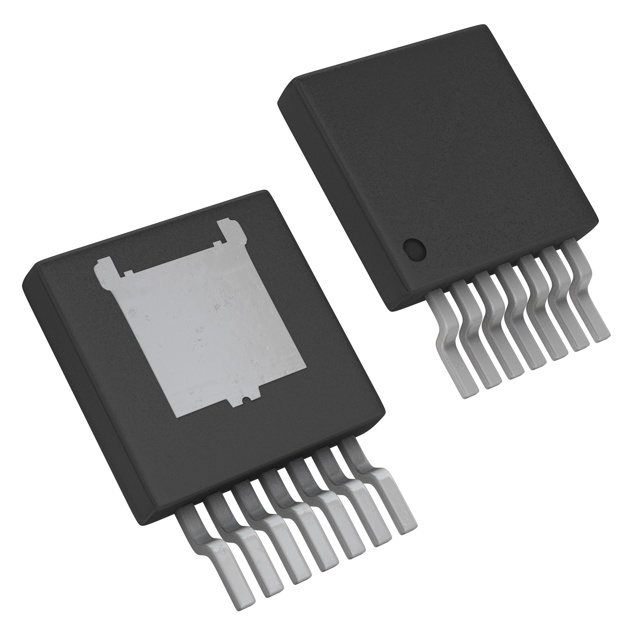

LM22676TJ-ADJ/NOPB
ActiveTexas Instruments
SIMPLE SWITCHER® 4.5V TO 42V, 3A STEP-DOWN REGULATOR WITH PRECISION ENABLE
Deep-Dive with AI
Search across all available documentation for this part.
LM22676TJ-ADJ/NOPB
ActiveTexas Instruments
SIMPLE SWITCHER® 4.5V TO 42V, 3A STEP-DOWN REGULATOR WITH PRECISION ENABLE
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LM22676TJ-ADJ/NOPB | LM22676 Series |
|---|---|---|
| Current - Output | 3 A | 3 A |
| Frequency - Switching | 500 kHz | 500 kHz |
| Function | Step-Down | Step-Down |
| Grade | - | Automotive |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 125 ¯C | 125 ¯C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Positive | Positive |
| Output Type | Adjustable | Adjustable |
| Output Type | - | 27.03 °C/W |
| Package / Case | TO-263-7 Thin | TO-263-7 Thin, 8-PowerSOIC |
| Package / Case | - | 3.9 mm |
| Package / Case | - | 0.154 in |
| Qualification | - | AEC-Q100 |
| Supplier Device Package | TO-263-7 Thin | TO-263-7 Thin, 8-SO PowerPad |
| Synchronous Rectifier | False | False |
| Topology | Buck | Buck |
| Voltage - Input (Max) [Max] | 42 V | 42 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Output (Max) [Max] | 37 V | 37 V |
| Voltage - Output (Min/Fixed) | - | 5 V |
| Voltage - Output (Min/Fixed) [Min] | 1.285 V | 1.285 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
LM22676 Series
3A SIMPLE SWITCHER, Step-Down Voltage Regulator with Precision Enable
| Part | Function | Current - Output | Number of Outputs | Mounting Type | Supplier Device Package | Grade | Voltage - Input (Max) [Max] | Output Type | Qualification | Topology | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Synchronous Rectifier | Package / Case | Frequency - Switching | Output Configuration | Voltage - Output (Min/Fixed) | Package / Case [custom] | Package / Case [custom] | Voltage - Output (Max) [Max] | Output Type | Voltage - Output (Min/Fixed) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments LM22676QTJE-5.0/NOPBThe LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in.
The LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in. | Step-Down | 3 A | 1 | Surface Mount | TO-263-7 Thin | Automotive | 42 V | 27.03 °C/W | AEC-Q100 | Buck | 125 ¯C | -40 °C | 4.5 V | TO-263-7 Thin | 500 kHz | Positive | 5 V | ||||||
Texas Instruments LM22676QMR-ADJ/NOPBThe LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in.
The LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in. | Step-Down | 3 A | 1 | Surface Mount | 8-SO PowerPad | Automotive | 42 V | AEC-Q100 | Buck | 125 ¯C | -40 °C | 4.5 V | 8-PowerSOIC | 500 kHz | Positive | 3.9 mm | 0.154 in | 37 V | Adjustable | 1.285 V | |||
Texas Instruments LM22676QMRE-5.0/NOPBThe LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in.
The LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in. | Step-Down | 3 A | 1 | Surface Mount | 8-SO PowerPad | Automotive | 42 V | 27.03 °C/W | AEC-Q100 | Buck | 125 ¯C | -40 °C | 4.5 V | 8-PowerSOIC | 500 kHz | Positive | 5 V | 3.9 mm | 0.154 in | ||||
Texas Instruments LM22676QTJE-ADJ/NOPBThe LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in.
The LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in. | Step-Down | 3 A | 1 | Surface Mount | TO-263-7 Thin | Automotive | 42 V | AEC-Q100 | Buck | 125 ¯C | -40 °C | 4.5 V | TO-263-7 Thin | 500 kHz | Positive | 37 V | Adjustable | 1.285 V | |||||
Texas Instruments LM22676QMRX-5.0/NOPBThe LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in.
The LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in. | Step-Down | 3 A | 1 | Surface Mount | 8-SO PowerPad | Automotive | 42 V | 27.03 °C/W | AEC-Q100 | Buck | 125 ¯C | -40 °C | 4.5 V | 8-PowerSOIC | 500 kHz | Positive | 5 V | 3.9 mm | 0.154 in | ||||
Texas Instruments LM22676TJE-5.0/NOPBThe LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in.
The LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in. | Step-Down | 3 A | 1 | Surface Mount | TO-263-7 Thin | 42 V | 27.03 °C/W | Buck | 125 ¯C | -40 °C | 4.5 V | TO-263-7 Thin | 500 kHz | Positive | 5 V | ||||||||
Texas Instruments LM22676TJ-5.0/NOPBThe LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in.
The LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in. | Step-Down | 3 A | 1 | Surface Mount | TO-263-7 Thin | 42 V | 27.03 °C/W | Buck | 125 ¯C | -40 °C | 4.5 V | TO-263-7 Thin | 500 kHz | Positive | 5 V | ||||||||
Texas Instruments LM22676MRE-5.0/NOPBThe LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in.
The LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in. | Step-Down | 3 A | 1 | Surface Mount | 8-SO PowerPad | 42 V | 27.03 °C/W | Buck | 125 ¯C | -40 °C | 4.5 V | 8-PowerSOIC | 500 kHz | Positive | 5 V | 3.9 mm | 0.154 in | ||||||
Texas Instruments LM22676MR-5.0/NOPBThe LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in.
The LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in. | Step-Down | 3 A | 1 | Surface Mount | 8-SO PowerPad | 42 V | 27.03 °C/W | Buck | 125 ¯C | -40 °C | 4.5 V | 8-PowerSOIC | 500 kHz | Positive | 5 V | 3.9 mm | 0.154 in | ||||||
Texas Instruments LM22676TJE-ADJ/NOPBThe LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in.
The LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in. | Step-Down | 3 A | 1 | Surface Mount | TO-263-7 Thin | 42 V | Buck | 125 ¯C | -40 °C | 4.5 V | TO-263-7 Thin | 500 kHz | Positive | 37 V | Adjustable | 1.285 V | |||||||
Texas Instruments LM22676QMRE-ADJ/NOPBThe LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in.
The LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in. | Step-Down | 3 A | 1 | Surface Mount | 8-SO PowerPad | Automotive | 42 V | AEC-Q100 | Buck | 125 ¯C | -40 °C | 4.5 V | 8-PowerSOIC | 500 kHz | Positive | 3.9 mm | 0.154 in | 37 V | Adjustable | 1.285 V | |||
Texas Instruments LM22676MR-ADJ/NOPBThe LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in.
The LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in. | Step-Down | 3 A | 1 | Surface Mount | 8-SO PowerPad | 42 V | Buck | 125 ¯C | -40 °C | 4.5 V | 8-PowerSOIC | 500 kHz | Positive | 3.9 mm | 0.154 in | 37 V | Adjustable | 1.285 V | |||||
Texas Instruments LM22676QMR-5.0/NOPBThe LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in.
The LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in. | Step-Down | 3 A | 1 | Surface Mount | 8-SO PowerPad | Automotive | 42 V | 27.03 °C/W | AEC-Q100 | Buck | 125 ¯C | -40 °C | 4.5 V | 8-PowerSOIC | 500 kHz | Positive | 5 V | 3.9 mm | 0.154 in | ||||
Texas Instruments LM22676QMRX-ADJ/NOPBThe LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in.
The LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in. | Step-Down | 3 A | 1 | Surface Mount | 8-SO PowerPad | Automotive | 42 V | AEC-Q100 | Buck | 125 ¯C | -40 °C | 4.5 V | 8-PowerSOIC | 500 kHz | Positive | 3.9 mm | 0.154 in | 37 V | Adjustable | 1.285 V | |||
Texas Instruments LM22676MRX-5.0/NOPBThe LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in.
The LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in. | Step-Down | 3 A | 1 | Surface Mount | 8-SO PowerPad | 42 V | 27.03 °C/W | Buck | 125 ¯C | -40 °C | 4.5 V | 8-PowerSOIC | 500 kHz | Positive | 5 V | 3.9 mm | 0.154 in | ||||||
Texas Instruments LM22676QTJ-5.0/NOPBThe LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in.
The LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in. | Step-Down | 3 A | 1 | Surface Mount | TO-263-7 Thin | Automotive | 42 V | 27.03 °C/W | AEC-Q100 | Buck | 125 ¯C | -40 °C | 4.5 V | TO-263-7 Thin | 500 kHz | Positive | 5 V | ||||||
Texas Instruments LM22676MRX-ADJ/NOPBThe LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in.
The LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in. | Step-Down | 3 A | 1 | Surface Mount | 8-SO PowerPad | 42 V | Buck | 125 ¯C | -40 °C | 4.5 V | 8-PowerSOIC | 500 kHz | Positive | 3.9 mm | 0.154 in | 37 V | Adjustable | 1.285 V | |||||
Texas Instruments LM22676TJ-ADJ/NOPBThe LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in.
The LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in. | Step-Down | 3 A | 1 | Surface Mount | TO-263-7 Thin | 42 V | Buck | 125 ¯C | -40 °C | 4.5 V | TO-263-7 Thin | 500 kHz | Positive | 37 V | Adjustable | 1.285 V |
Description
General part information
LM22676 Series
The LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in.
The LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.
