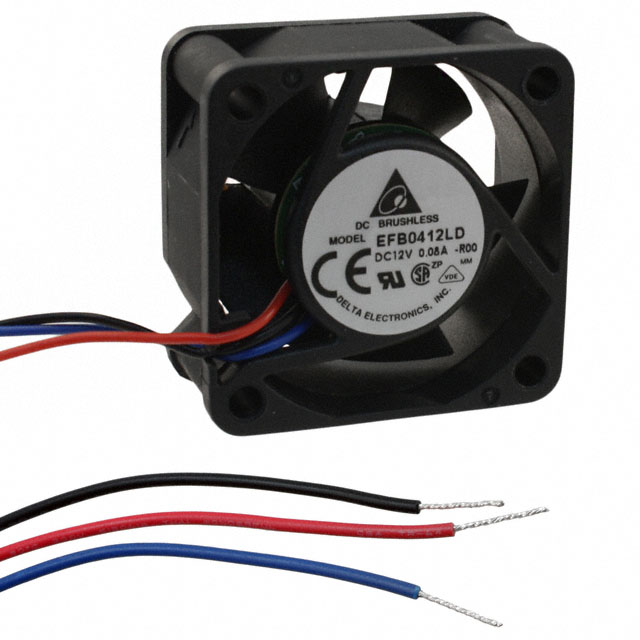

EFB0412LD-R00
ActiveDelta Electronics
FAN AXIAL 40X20MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
EFB0412LD-R00
ActiveDelta Electronics
FAN AXIAL 40X20MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EFB0412LD-R00 |
|---|---|
| Air Flow | 0.154 m³/min |
| Air Flow | 5.5 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 50 mA |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 22 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 600 mW |
| RPM | 5000 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Static Pressure | 33.9 Pa |
| Static Pressure | 0.136 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 7 V |
| Weight | 33.11 g |
| Weight | 0.073 lb |
| Width [y] | 20 mm |
EFB0412 Series
| Part | Noise | Voltage Range [Max] | Voltage Range [Min] | Power (Watts) | RPM | Width [y] | Static Pressure | Static Pressure | Approval Agency | Size / Dimension [z] | Size / Dimension | Size / Dimension [x] | Bearing Type | Air Flow | Air Flow | Material - Blade | Termination | Material - Frame | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Weight | Weight | Current Rating (Amps) | Voltage - Rated | Lifetime @ Temp. | Fan Type | Air Flow | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | 20.5 dB(A) | 13.8 VDC | 9 V | 600 mW | 4000 RPM | 10 mm | 14.2 Pa | 0.057 in H2O | CE CSA UL VDE | 40 mm | Square | 40 mm | Ball | 0.104 m³/min | 3.7 CFM | Plastic | 2 Wire Leads | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 0.032 lb | 14.51 g | 50 mA | 12 VDC | 70000 Hrs | Tubeaxial | ||
Delta Electronics | 22 dB(A) | 13.8 VDC | 7 V | 600 mW | 5000 RPM | 20 mm | 33.9 Pa | 0.136 in H2O | CE CSA UL VDE | 40 mm | Square | 40 mm | Ball | 5.5 CFM | Plastic | 2 Wire Leads | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 0.073 lb | 33.11 g | 50 mA | 12 VDC | 70000 Hrs | Tubeaxial | 0.154 m³/min | ||
Delta Electronics | 22 dB(A) | 13.8 VDC | 7 V | 600 mW | 5000 RPM | 20 mm | 33.9 Pa | 0.136 in H2O | CE CSA UL VDE | 40 mm | Square | 40 mm | Ball | 5.5 CFM | Plastic | 3 Wire Leads | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 0.073 lb | 33.11 g | 50 mA | 12 VDC | 70000 Hrs | Tubeaxial | 0.154 m³/min | Locked Rotor Sensor | |
Delta Electronics | 22 dB(A) | 13.8 VDC | 7 V | 600 mW | 5000 RPM | 20 mm | 33.9 Pa | 0.136 in H2O | CE CSA UL VDE | 40 mm | Square | 40 mm | Ball | 5.5 CFM | Plastic | 3 Wire Leads | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 0.073 lb | 33.11 g | 50 mA | 12 VDC | 70000 Hrs | Tubeaxial | 0.154 m³/min | Locked Rotor Protection Speed Sensor (Tach) | |
Delta Electronics | 32.5 dB | 13.8 VDC | 7 V | 1.44 W | 9000 RPM | 20 mm | 103.6 Pa | 0.416 in H2O | CE CSA UL VDE | 40 mm | Square | 40 mm | Ball | 0.283 m³/min | 10.1 CFM | Plastic | 3 Wire Leads | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 0.073 lb | 33.11 g | 120 mA | 12 VDC | 70000 Hrs | Tubeaxial | Locked Rotor Protection Speed Sensor (Tach) | |
Delta Electronics | 24.5 dB(A) | 13.8 VDC | 7 V | 720 mW | 5000 RPM | 10 mm | 21.9 Pa | 0.088 in H2O | CE CSA UL VDE | 40 mm | Square | 40 mm | Ball | 0.165 m³/min | 5.9 CFM | Plastic | 2 Wire Leads | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 0.032 lb | 14.51 g | 60 mA | 12 VDC | 70000 Hrs | Tubeaxial | ||
Delta Electronics | 32.5 dB | 13.8 VDC | 5 VDC | 1.44 W | 9000 RPM | 20 mm | 103.6 Pa | 0.416 in H2O | CE CSA UL VDE | 40 mm | Square | 40 mm | Ball | 0.283 m³/min | 10.1 CFM | Plastic | 4 Wire Leads | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 0.073 lb | 33.11 g | 120 mA | 12 VDC | 70000 Hrs | Tubeaxial | Locked Rotor Protection PWM Control Speed Sensor (Tach) | |
Delta Electronics | 32.5 dB | 13.8 VDC | 7 V | 1.44 W | 9000 RPM | 20 mm | 103.6 Pa | 0.416 in H2O | CE CSA UL VDE | 40 mm | Square | 40 mm | Ball | 0.283 m³/min | 10.1 CFM | Plastic | 3 Wire Leads | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 0.073 lb | 33.11 g | 120 mA | 12 VDC | 70000 Hrs | Tubeaxial | Locked Rotor Sensor | |
Delta Electronics | 28.5 dB(A) | 13.8 VDC | 7 V | 7600 RPM | 20 mm | 75.5 Pa | 0.303 in H2O | CE CSA UL VDE | 40 mm | Square | 40 mm | Ball | 0.238 mł/min | 8.5 CFM | Plastic | 3 Wire Leads | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 0.073 lb | 33.11 g | 12 VDC | 70000 Hrs | Tubeaxial | Locked Rotor Protection Speed Sensor (Tach) | |||
Delta Electronics | 30.5 dB | 13.8 VDC | 7 V | 1.2 W | 8200 RPM | 20 mm | 88.2 Pa | 0.354 in H2O | CE CSA UL VDE | 40 mm | Square | 40 mm | Ball | 0.263 m³/min | 9.4 CFM | Plastic | 3 Wire Leads | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 0.073 lb | 33.11 g | 100 mA | 12 VDC | 70000 Hrs | Tubeaxial | Locked Rotor Sensor |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 336 | $ 9.07 | |
Description
General part information
EFB0412 Series
Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 5.5 CFM (0.154m³/min) 3 Wire Leads
