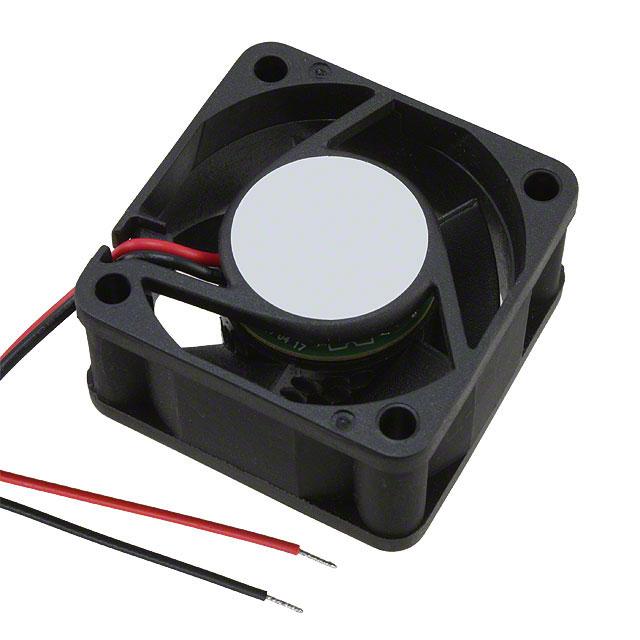

EFB0412LD

Active

Delta Electronics

FAN AXIAL 40X20MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Fans, Blowers CSA Cert +2

EFB0412LD

Active

Delta Electronics

FAN AXIAL 40X20MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet Fans, Blowers CSA Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EFB0412LD

Air Flow	0.154 m³/min
Air Flow	5.5 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	50 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	22 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	600 mW
RPM	5000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	33.9 Pa
Static Pressure	0.136 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	7 V
Weight	33.11 g
Weight	0.073 lb
Width [y]	20 mm

EFB0412 Series

Part	Noise	Voltage Range [Max]	Voltage Range [Min]	Power (Watts)	RPM	Width [y]	Static Pressure	Static Pressure	Approval Agency	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Bearing Type	Air Flow	Air Flow	Material - Blade	Termination	Material - Frame	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Weight	Weight	Current Rating (Amps)	Voltage - Rated	Lifetime @ Temp.	Fan Type	Air Flow	Features
Delta Electronics EFB0412LA	20.5 dB(A)	13.8 VDC	9 V	600 mW	4000 RPM	10 mm	14.2 Pa	0.057 in H2O	CE CSA UL VDE	40 mm	Square	40 mm	Ball	0.104 m³/min	3.7 CFM	Plastic	2 Wire Leads	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.032 lb	14.51 g	50 mA	12 VDC	70000 Hrs	Tubeaxial
Delta Electronics EFB0412LD	22 dB(A)	13.8 VDC	7 V	600 mW	5000 RPM	20 mm	33.9 Pa	0.136 in H2O	CE CSA UL VDE	40 mm	Square	40 mm	Ball	5.5 CFM		Plastic	2 Wire Leads	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.073 lb	33.11 g	50 mA	12 VDC	70000 Hrs	Tubeaxial	0.154 m³/min
Delta Electronics EFB0412LD-R00	22 dB(A)	13.8 VDC	7 V	600 mW	5000 RPM	20 mm	33.9 Pa	0.136 in H2O	CE CSA UL VDE	40 mm	Square	40 mm	Ball	5.5 CFM		Plastic	3 Wire Leads	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.073 lb	33.11 g	50 mA	12 VDC	70000 Hrs	Tubeaxial	0.154 m³/min	Locked Rotor Sensor
Delta Electronics EFB0412LD-F00	22 dB(A)	13.8 VDC	7 V	600 mW	5000 RPM	20 mm	33.9 Pa	0.136 in H2O	CE CSA UL VDE	40 mm	Square	40 mm	Ball	5.5 CFM		Plastic	3 Wire Leads	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.073 lb	33.11 g	50 mA	12 VDC	70000 Hrs	Tubeaxial	0.154 m³/min	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics EFB0412VHD-F00	32.5 dB	13.8 VDC	7 V	1.44 W	9000 RPM	20 mm	103.6 Pa	0.416 in H2O	CE CSA UL VDE	40 mm	Square	40 mm	Ball	0.283 m³/min	10.1 CFM	Plastic	3 Wire Leads	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.073 lb	33.11 g	120 mA	12 VDC	70000 Hrs	Tubeaxial		Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics EFB0412MA	24.5 dB(A)	13.8 VDC	7 V	720 mW	5000 RPM	10 mm	21.9 Pa	0.088 in H2O	CE CSA UL VDE	40 mm	Square	40 mm	Ball	0.165 m³/min	5.9 CFM	Plastic	2 Wire Leads	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.032 lb	14.51 g	60 mA	12 VDC	70000 Hrs	Tubeaxial
Delta Electronics EFB0412VHD-SP05	32.5 dB	13.8 VDC	5 VDC	1.44 W	9000 RPM	20 mm	103.6 Pa	0.416 in H2O	CE CSA UL VDE	40 mm	Square	40 mm	Ball	0.283 m³/min	10.1 CFM	Plastic	4 Wire Leads	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.073 lb	33.11 g	120 mA	12 VDC	70000 Hrs	Tubeaxial		Locked Rotor Protection PWM Control Speed Sensor (Tach)
Delta Electronics EFB0412VHD-R00	32.5 dB	13.8 VDC	7 V	1.44 W	9000 RPM	20 mm	103.6 Pa	0.416 in H2O	CE CSA UL VDE	40 mm	Square	40 mm	Ball	0.283 m³/min	10.1 CFM	Plastic	3 Wire Leads	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.073 lb	33.11 g	120 mA	12 VDC	70000 Hrs	Tubeaxial		Locked Rotor Sensor
Delta Electronics EFB0412HD-F00	28.5 dB(A)	13.8 VDC	7 V		7600 RPM	20 mm	75.5 Pa	0.303 in H2O	CE CSA UL VDE	40 mm	Square	40 mm	Ball	0.238 mł/min	8.5 CFM	Plastic	3 Wire Leads	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.073 lb	33.11 g		12 VDC	70000 Hrs	Tubeaxial		Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics EFB0412HHD-R00	30.5 dB	13.8 VDC	7 V	1.2 W	8200 RPM	20 mm	88.2 Pa	0.354 in H2O	CE CSA UL VDE	40 mm	Square	40 mm	Ball	0.263 m³/min	9.4 CFM	Plastic	3 Wire Leads	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.073 lb	33.11 g	100 mA	12 VDC	70000 Hrs	Tubeaxial		Locked Rotor Sensor

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.66
		10	$ 12.77
		25	$ 11.58
		50	$ 10.69
		100	$ 9.35
		336	$ 8.76
		672	$ 8.17

Description

General part information

EFB0412 Series

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 5.5 CFM (0.154m³/min) 2 Wire Leads
