FTSH-118-01-F-DV-K-A

Active

Samtec Inc.

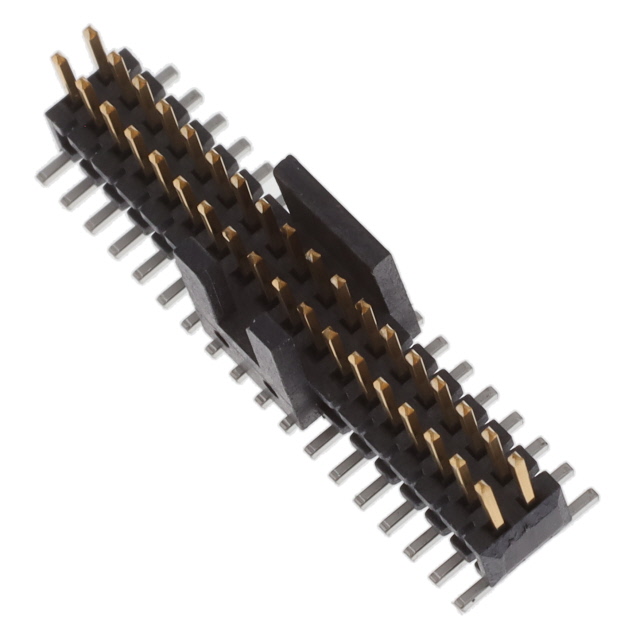

CONN HEADER SMD 36POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFTSH Datasheet Datasheet +2

FTSH-118-01-F-DV-K-A

Active

Samtec Inc.

CONN HEADER SMD 36POS 1.27MM

Deep-Dive with AI

DocumentsFTSH Datasheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTSH-118-01-F-DV-K-A

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.51 mm
Insulation Height	0.099 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	36
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

FTSH-118 Series

Part	Features	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Material Flammability Rating	Style	Contact Shape	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions	Pitch - Mating	Pitch - Mating	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Connector Type	Insulation Material	Number of Rows	Mounting Type	Insulation Color	Contact Finish - Post	Termination	Contact Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Mating [x]
Samtec Inc. FTSH-118-01-L-DV-P-TR	Pick and Place	3.05 mm	0.12 in	Gold	UL94 V-0	Board to Board Cable	Square	All	10 çin	0.25 çm	Push-Pull	36	0.05 in	1.27 mm	Unshrouded	-55 °C	125 °C	0.05 in	1.27 mm	Phosphor Bronze	Cuttable Header	Liquid Crystal Polymer (LCP)	2	Surface Mount	Black	Tin	Solder	Male Pin	2.51 mm	0.099 in
Samtec Inc. FTSH-118-03-F-DV-ES	End Shrouds	1.65 mm	0.065 in	Gold	UL94 V-0	Board to Board Cable	Square	All	3 µin	0.076 µm	Push-Pull	36	0.05 in	1.27 mm	Shrouded	-55 °C	125 °C	0.05 in	1.27 mm	Phosphor Bronze	Cuttable Header	Liquid Crystal Polymer (LCP)	2	Surface Mount	Black	Tin	Solder	Male Pin	2.51 mm	0.099 in
Samtec Inc. FTSH-118-04-F-D		3.81 mm	0.15 in	Gold	UL94 V-0	Board to Board Cable	Square	All	3 µin	0.076 µm	Push-Pull	36	0.05 in	1.27 mm	Unshrouded	-55 °C	125 °C	0.05 in	1.27 mm	Phosphor Bronze	Cuttable Header	Liquid Crystal Polymer (LCP)	2	Through Hole	Black	Tin	Solder	Male Pin	2.51 mm	0.099 in	0.09 "	2.29 mm	8.6 mm	0.339 in
Samtec Inc. FTSH-118-02-L-DV-P-TR	Pick and Place			Gold	UL94 V-0	Board to Board Cable	Square	All	10 çin	0.25 çm	Push-Pull	36	0.05 in	1.27 mm	Unshrouded	-55 °C	125 °C	0.05 in	1.27 mm	Phosphor Bronze	Cuttable Header	Liquid Crystal Polymer (LCP)	2	Surface Mount	Black	Tin	Solder	Male Pin	2.51 mm	0.099 in					1.9 mm	0.075 in
Samtec Inc. FTSH-118-02-L-DV-ES	End Shrouds			Gold	UL94 V-0	Board to Board Cable	Square	All	10 çin	0.25 çm	Push-Pull	36	0.05 in	1.27 mm	Shrouded	-55 °C	125 °C	0.05 in	1.27 mm	Phosphor Bronze	Cuttable Header	Liquid Crystal Polymer (LCP)	2	Surface Mount	Black	Tin	Solder	Male Pin	2.51 mm	0.099 in					1.9 mm	0.075 in
Samtec Inc. FTSH-118-01-S-DV-K-P	Keying Shroud Pick and Place	3.05 mm	0.12 in	Gold	UL94 V-0	Board to Board Cable	Square	All	30 Áin	0.76 Ám	Push-Pull	36	0.05 in	1.27 mm	Unshrouded	-55 °C	125 °C	0.05 in	1.27 mm	Phosphor Bronze	Cuttable Header	Liquid Crystal Polymer (LCP)	2	Surface Mount	Black	Tin	Solder	Male Pin	2.51 mm	0.099 in
Samtec Inc. FTSH-118-04-L-DV-P-TR	Pick and Place	3.81 mm	0.15 in	Gold	UL94 V-0	Board to Board Cable	Square	All	10 çin	0.25 çm	Push-Pull	36	0.05 in	1.27 mm	Unshrouded	-55 °C	125 °C	0.05 in	1.27 mm	Phosphor Bronze	Cuttable Header	Liquid Crystal Polymer (LCP)	2	Surface Mount	Black	Tin	Solder	Male Pin	2.51 mm	0.099 in
Samtec Inc. FTSH-118-02-F-D				Gold	UL94 V-0	Board to Board Cable	Square	All	3 µin	0.076 µm	Push-Pull	36	0.05 in	1.27 mm	Unshrouded	-55 °C	125 °C	0.05 in	1.27 mm	Phosphor Bronze	Cuttable Header	Liquid Crystal Polymer (LCP)	2	Through Hole	Black	Tin	Solder	Male Pin	2.51 mm	0.099 in	0.09 "	2.29 mm	6.73 mm	0.265 in	1.9 mm	0.075 in
Samtec Inc. FTSH-118-04-F-DV-A-P-TR	Board Guide Pick and Place	3.81 mm	0.15 in	Gold	UL94 V-0	Board to Board Cable	Square	All	3 µin	0.076 µm	Push-Pull	36	0.05 in	1.27 mm	Unshrouded	-55 °C	125 °C	0.05 in	1.27 mm	Phosphor Bronze	Cuttable Header	Liquid Crystal Polymer (LCP)	2	Surface Mount	Black	Tin	Solder	Male Pin	2.51 mm	0.099 in
Samtec Inc. FTSH-118-01-F-DV-K-A		3.05 mm	0.12 in	Gold	UL94 V-0	Board to Board Cable	Square	All	3 µin	0.076 µm	Push-Pull	36	0.05 in	1.27 mm	Unshrouded	-55 °C	125 °C	0.05 in	1.27 mm	Phosphor Bronze	Cuttable Header	Liquid Crystal Polymer (LCP)	2	Surface Mount	Black	Tin	Solder	Male Pin	2.51 mm	0.099 in
