5151061801F

Active

DIALIGHT

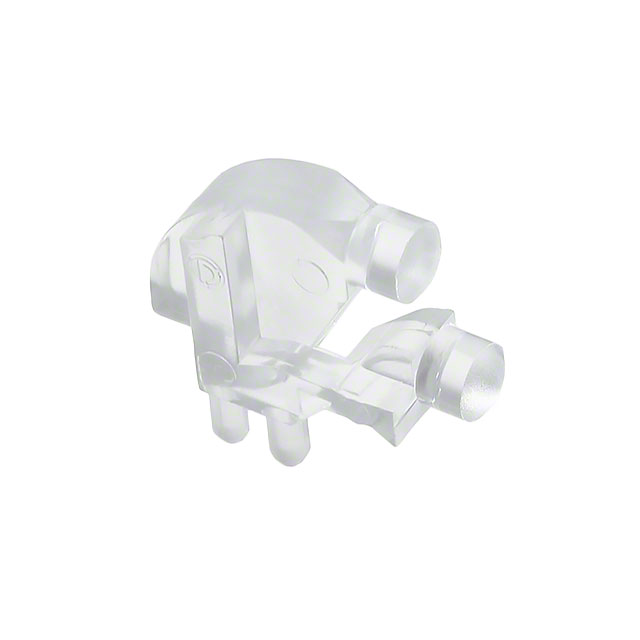

LIGHT PIPE RIDGID 3MM DIA

Search across all available documentation for this part.

Active

DIALIGHT

LIGHT PIPE RIDGID 3MM DIA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1600	$ 0.51

General part information

Light Pipe 2 High Clear, Diffused Rigid Board Mount, Press Fit, Right Angle

Technical documentation and resources

Specification	5151061801F	5151061 Series

Color	Clear, Diffused	Clear, Diffused
Configuration	2 High	2 High
Configuration	-	2
Configuration	-	2
Lens Size	3 mm	3 - 4.3 mm
Lens Style	Round with Domed Top	Round with Domed Top
Mounting Type	Board Mount, Right Angle, Press Fit	Board Mount, Right Angle, Press Fit
Type	Rigid	Rigid

Part	Color	Type	Lens Style	Mounting Type	Lens Size	Configuration	Configuration [y]	Configuration [z]
DIALIGHT 5151061801F	Clear, Diffused	Rigid	Round with Domed Top	Board Mount, Press Fit, Right Angle	3 mm	2 High
DIALIGHT 5151061802F	Clear, Diffused	Rigid		Board Mount, Press Fit, Right Angle	3 mm	2 High
DIALIGHT 5151061803F	Clear, Diffused	Rigid		Board Mount, Press Fit, Right Angle	3 mm		2	2
DIALIGHT 5151061F	Clear	Rigid		Board Mount, Press Fit, Right Angle	4.3 mm	2 High
