5151061803F

Active

DIALIGHT

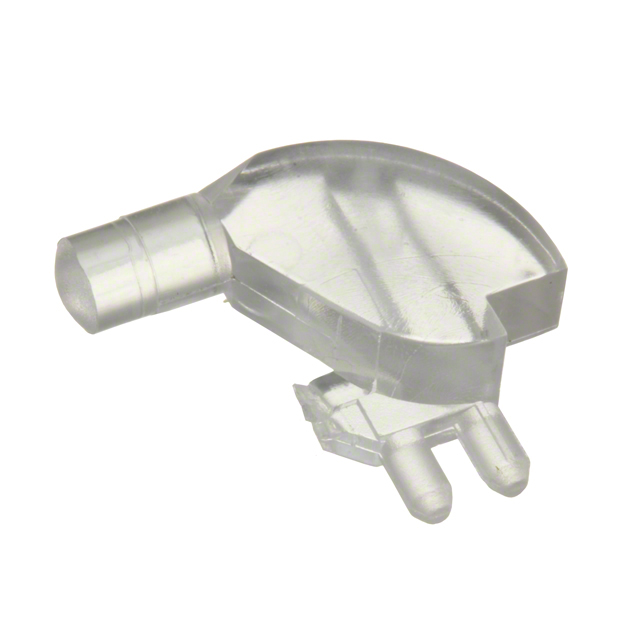

LIGHT PIPE 2X2 3MM ROUND

Search across all available documentation for this part.

Active

DIALIGHT

LIGHT PIPE 2X2 3MM ROUND

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5151061803F	5151061 Series

Color	Clear, Diffused	Clear, Diffused
Configuration	-	2 High
Configuration [y]	2	2
Configuration [z]	2	2
Lens Size	3 mm	3 - 4.3 mm
Lens Style	-	Round with Domed Top
Mounting Type	Board Mount, Right Angle, Press Fit	Board Mount, Right Angle, Press Fit
Type	Rigid	Rigid

LIGHT PIPE RIDGID 3MM DIA

Part	Color	Type	Lens Style	Mounting Type	Lens Size	Configuration	Configuration [y]	Configuration [z]
DIALIGHT 5151061801F	Clear, Diffused	Rigid	Round with Domed Top	Board Mount, Press Fit, Right Angle	3 mm	2 High
DIALIGHT 5151061802F	Clear, Diffused	Rigid		Board Mount, Press Fit, Right Angle	3 mm	2 High
DIALIGHT 5151061803F	Clear, Diffused	Rigid		Board Mount, Press Fit, Right Angle	3 mm		2	2
DIALIGHT 5151061F	Clear	Rigid		Board Mount, Press Fit, Right Angle	4.3 mm	2 High

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Light Pipe 2 High x 2 Wide Clear, Diffused Rigid Board Mount, Press Fit, Right Angle
