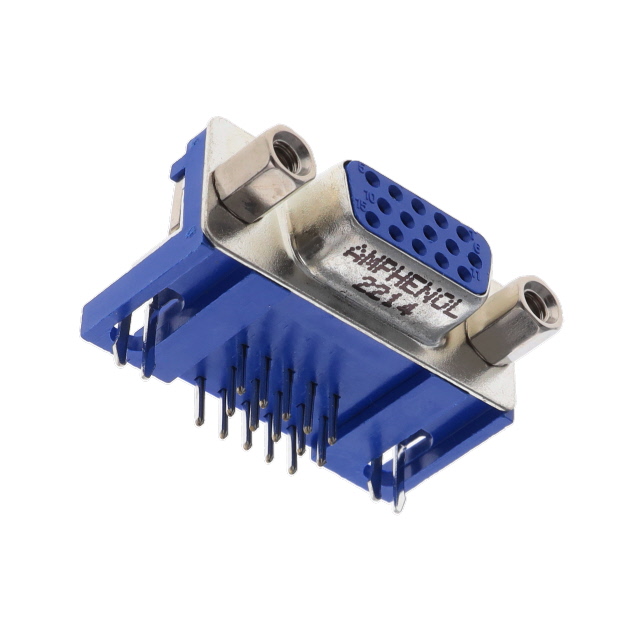

L77HDE15SD1CH4FVGA
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HD RCPT 15P R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
L77HDE15SD1CH4FVGA
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HD RCPT 15P R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L77HDE15SD1CH4FVGA |
|---|---|
| Backset Spacing | 8.89 mm |
| Backset Spacing | 0.35 in |
| Color | Blue |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Features | Board Lock, Grounding Tabs |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
| Termination | Solder |
| Voltage Rating | 250 VDC |
L77HDE15 Series
| Part | Contact Form | Material Flammability Rating | Number of Rows | Number of Positions | Color | Features | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Contact Material | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Connector Type | Backset Spacing | Backset Spacing | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Voltage Rating | Connector Style | Current Rating (Amps) | Flange Feature | Contact Finish | Dielectric Material | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (Commercial Products) | Stamped | UL94 V-0 | 3 | 15 | Black | Board Lock Grounding Tabs | 105 ░C | -55 °C | Solder | Brass | Through Hole Right Angle | 0.76 Ám | 30 Áin | Signal | Receptacle Female Sockets | 8.89 mm | 0.35 in | DE E | 1 | High Density | 250 VDC | D-Sub High Density | 3 A | Female Screwlock (4-40) Mating Side | Gold | Thermoplastic Glass Filled | |
Amphenol ICC (Commercial Products) | Stamped | UL94 V-0 | 3 | 15 | Blue | Board Lock Grounding Tabs | 105 ░C | -55 °C | Solder | Brass | Through Hole Right Angle | Signal | Receptacle Female Sockets | 8.89 mm | 0.35 in | DE E | 1 | High Density | 250 VDC | D-Sub High Density | 3 A | Female Screwlock (4-40) Mating Side | Gold | Thermoplastic Glass Filled | Flash | ||
Amphenol ICC (Commercial Products) | Stamped | UL94 V-0 | 3 | 15 | Black | Board Lock Grounding Tabs | 105 ░C | -55 °C | Solder | Brass | Through Hole Right Angle | 0.76 Ám | 30 Áin | Signal | Receptacle Female Sockets | 8.89 mm | 0.35 in | DE E | 1 | High Density | 250 VDC | D-Sub High Density | 3 A | Board Side (M3) | Gold | Thermoplastic Glass Filled | |
Amphenol ICC (Commercial Products) | Stamped | UL94 V-0 | 3 | 15 | Black | Board Lock Grounding Tabs | 105 ░C | -55 °C | Solder | Brass | Through Hole Right Angle | Signal | Receptacle Female Sockets | 8.89 mm | 0.35 in | DE E | 1 | High Density | 250 VDC | D-Sub High Density | 3 A | Board Side (M3) | Gold | Thermoplastic Glass Filled | Flash | ||
Amphenol ICC (Commercial Products) | Stamped | UL94 V-0 | 3 | 15 | Black | Board Lock Grounding Tabs | 105 ░C | -55 °C | Solder | Brass | Through Hole Right Angle | Signal | Receptacle Female Sockets | 8.89 mm | 0.35 in | DE E | 1 | High Density | 250 VDC | D-Sub High Density | 3 A | Female Screwlock (M3) Mating Side | Gold | Thermoplastic Glass Filled | Flash | ||
Amphenol ICC (Commercial Products) | Stamped | UL94 V-0 | 3 | 15 | Black | Board Lock Grounding Tabs | 105 ░C | -55 °C | Solder | Brass | Through Hole Right Angle | 0.76 Ám | 30 Áin | Signal | Receptacle Female Sockets | 8.89 mm | 0.35 in | DE E | 1 | High Density | 250 VDC | D-Sub High Density | 3 A | 4-40 Board Side | Gold | Thermoplastic Glass Filled | |
Amphenol ICC (Commercial Products) | Stamped | UL94 V-0 | 3 | 15 | 155 °C | -55 °C | Phosphor Bronze | Free Hanging (In-Line) | Signal | Receptacle Female Sockets | DE E | 1 | High Density | 250 VDC | D-Sub High Density | 3 A | Housing/Shell (Unthreaded) | Gold | Thermoplastic Glass Filled | Flash | |||||||
Amphenol ICC (Commercial Products) | Stamped | UL94 V-0 | 3 | 15 | 155 °C | -55 °C | Solder | Phosphor Bronze | Through Hole Right Angle | Signal | Receptacle Female Sockets | 8.89 mm | 0.35 in | DE E | 1 | High Density | 250 VDC | D-Sub High Density | 3 A | Housing/Shell (Unthreaded) | Gold | Thermoplastic Glass Filled | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.15 | |
| 10 | $ 1.64 | |||
| 25 | $ 1.47 | |||
| 40 | $ 1.40 | |||
| 80 | $ 1.29 | |||
| 230 | $ 1.15 | |||
| 440 | $ 1.07 | |||
| 945 | $ 0.99 | |||
| 2400 | $ 0.90 | |||
Description
General part information
L77HDE15 Series
15 Position D-Sub, High Density Receptacle, Female Sockets Connector
