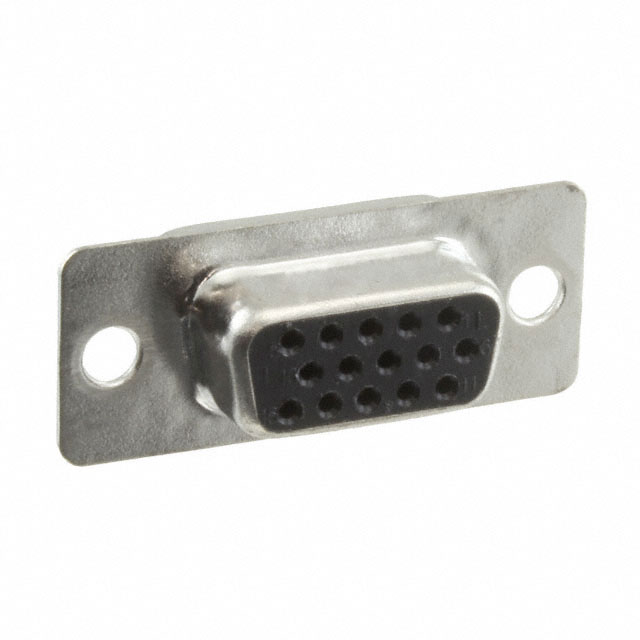

L77HDE15S

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD RCPT 15P SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L77HDE15S

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD RCPT 15P SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L77HDE15S

Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Voltage Rating	250 VDC

L77HDE15 Series

Part	Contact Form	Material Flammability Rating	Number of Rows	Number of Positions	Color	Features	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Material	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Connector Type	Backset Spacing	Backset Spacing	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Voltage Rating	Connector Style	Current Rating (Amps)	Flange Feature	Contact Finish	Dielectric Material	Contact Finish Thickness
Amphenol ICC (Commercial Products) L77HDE15SD1CH4FC309	Stamped	UL94 V-0	3	15	Black	Board Lock Grounding Tabs	105 ░C	-55 °C	Solder	Brass	Through Hole Right Angle	0.76 Ám	30 Áin	Signal	Receptacle Female Sockets	8.89 mm	0.35 in	DE E	1	High Density	250 VDC	D-Sub High Density	3 A	Female Screwlock (4-40) Mating Side	Gold	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L77HDE15SD1CH4FVGA	Stamped	UL94 V-0	3	15	Blue	Board Lock Grounding Tabs	105 ░C	-55 °C	Solder	Brass	Through Hole Right Angle			Signal	Receptacle Female Sockets	8.89 mm	0.35 in	DE E	1	High Density	250 VDC	D-Sub High Density	3 A	Female Screwlock (4-40) Mating Side	Gold	Thermoplastic Glass Filled	Flash
Amphenol ICC (Commercial Products) L77HDE15SD1CH3RC309	Stamped	UL94 V-0	3	15	Black	Board Lock Grounding Tabs	105 ░C	-55 °C	Solder	Brass	Through Hole Right Angle	0.76 Ám	30 Áin	Signal	Receptacle Female Sockets	8.89 mm	0.35 in	DE E	1	High Density	250 VDC	D-Sub High Density	3 A	Board Side (M3)	Gold	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L77HDE15SD1CH3R	Stamped	UL94 V-0	3	15	Black	Board Lock Grounding Tabs	105 ░C	-55 °C	Solder	Brass	Through Hole Right Angle			Signal	Receptacle Female Sockets	8.89 mm	0.35 in	DE E	1	High Density	250 VDC	D-Sub High Density	3 A	Board Side (M3)	Gold	Thermoplastic Glass Filled	Flash
Amphenol ICC (Commercial Products) L77HDE15SD1CH3F	Stamped	UL94 V-0	3	15	Black	Board Lock Grounding Tabs	105 ░C	-55 °C	Solder	Brass	Through Hole Right Angle			Signal	Receptacle Female Sockets	8.89 mm	0.35 in	DE E	1	High Density	250 VDC	D-Sub High Density	3 A	Female Screwlock (M3) Mating Side	Gold	Thermoplastic Glass Filled	Flash
Amphenol ICC (Commercial Products) L77HDE15SD1CH4RC309	Stamped	UL94 V-0	3	15	Black	Board Lock Grounding Tabs	105 ░C	-55 °C	Solder	Brass	Through Hole Right Angle	0.76 Ám	30 Áin	Signal	Receptacle Female Sockets	8.89 mm	0.35 in	DE E	1	High Density	250 VDC	D-Sub High Density	3 A	4-40 Board Side	Gold	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L77HDE15S	Stamped	UL94 V-0	3	15			155 °C	-55 °C		Phosphor Bronze	Free Hanging (In-Line)			Signal	Receptacle Female Sockets			DE E	1	High Density	250 VDC	D-Sub High Density	3 A	Housing/Shell (Unthreaded)	Gold	Thermoplastic Glass Filled	Flash
Amphenol ICC (Commercial Products) L77HDE15SD1C	Stamped	UL94 V-0	3	15			155 °C	-55 °C	Solder	Phosphor Bronze	Through Hole Right Angle			Signal	Receptacle Female Sockets	8.89 mm	0.35 in	DE E	1	High Density	250 VDC	D-Sub High Density	3 A	Housing/Shell (Unthreaded)	Gold	Thermoplastic Glass Filled	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.47
		10	$ 1.28
		25	$ 1.22
		50	$ 1.19
		100	$ 1.14
		250	$ 1.03
		450	$ 0.95
		950	$ 0.81
		2400	$ 0.76

Description

General part information

L77HDE15 Series

15 Position D-Sub, High Density Receptacle, Female Sockets Connector
