SSM6N58NU,LF

Active

Toshiba Semiconductor and Storage

MOSFET 2N-CH 30V 4A 6UDFN

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

MOSFET 2N-CH 30V 4A 6UDFN

Technical Specifications

Parameters and characteristics for this part

Specification	SSM6N58NU,LF

Configuration	2 N-Channel (Dual)
Current - Continuous Drain (Id) @ 25°C	4 A
Drain to Source Voltage (Vdss)	30 V
FET Feature	1.8 V
FET Feature	Logic Level Gate
Gate Charge (Qg) (Max) @ Vgs	1.8 nC
Input Capacitance (Ciss) (Max) @ Vds	129 pF
Mounting Type	Surface Mount
Operating Temperature	150 °C
Power - Max [Max]	1 W
Rds On (Max) @ Id, Vgs	84 mOhm

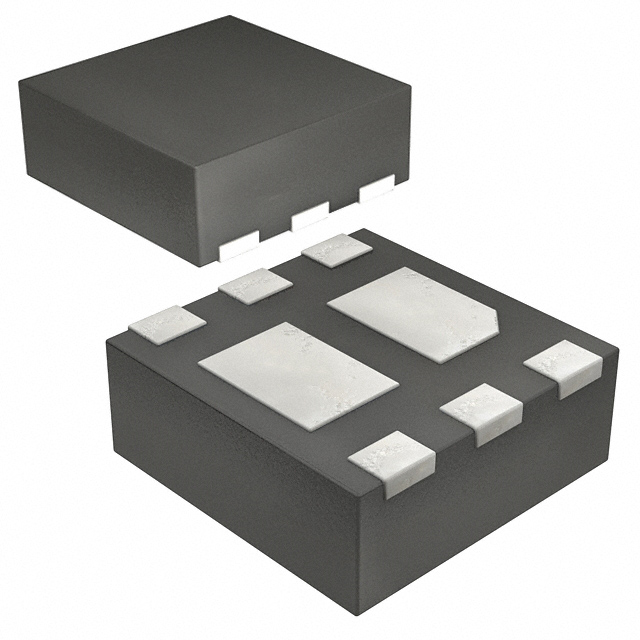

Supplier Device Package	6-UDFN (2x2)
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	1 V

Part	Power - Max [Max]	Operating Temperature	Drain to Source Voltage (Vdss)	Gate Charge (Qg) (Max) @ Vgs	Current - Continuous Drain (Id) @ 25°C	Mounting Type	Supplier Device Package	Technology	Rds On (Max) @ Id, Vgs	FET Feature	FET Feature	Vgs(th) (Max) @ Id	Configuration	Input Capacitance (Ciss) (Max) @ Vds
Toshiba Semiconductor and Storage SSM6N58NU,LF	1 W	150 °C	30 V	1.8 nC	4 A	Surface Mount	6-UDFN (2x2)	MOSFET (Metal Oxide)	84 mOhm	1.8 V	Logic Level Gate	1 V	2 N-Channel (Dual)	129 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 30V 4A 1W Surface Mount 6-UDFN (2x2)
