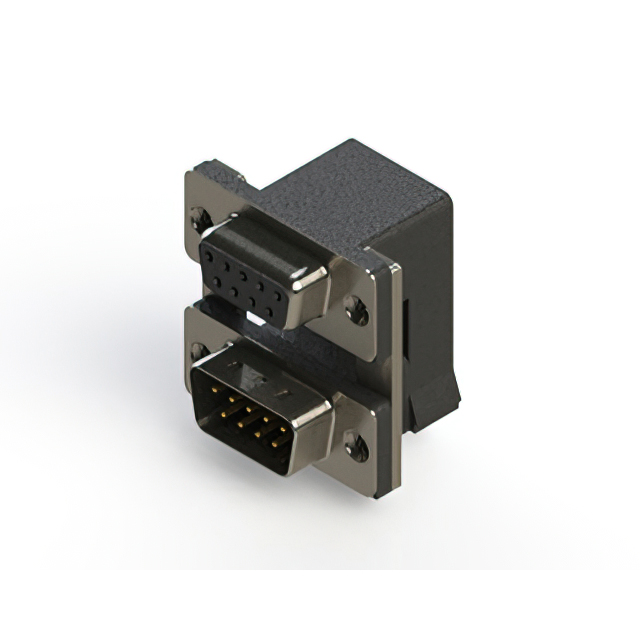

664-009-264-005

Active

EDAC Inc.

664 SERIES RIGHT ANGLE DUAL D-SU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

664-009-264-005

Active

EDAC Inc.

664 SERIES RIGHT ANGLE DUAL D-SU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	664-009-264-005

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Plug, Male Pins, Receptacle, Female Socket
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass, Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	1 (DE, E)
Termination	Solder

664-009 Series

...

Part	Number of Rows	Backset Spacing	Backset Spacing	Shell Material, Finish	Dielectric Material	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Color	Contact Finish Thickness	Contact Finish Thickness	Termination	Mounting Type	Connector Type	Contact Finish	Material Flammability Rating	Contact Type	Features	Number of Positions	Contact Material	Shell Size, Connector Layout	Flange Feature	Contact Finish Thickness
EDAC Inc. 664-009-364-055	2	8.08 mm	0.318 "	Nickel Plated Steel	Polyester Thermoplastic	D-Sub - Stacked	85 °C	-55 °C	3 A	Black	15 µin	0.38 µm	Solder	Through Hole Right Angle	Plug Male Pins Receptacle Female Socket	Gold	UL94 V-0	Signal	Grounding Indents Mounting Brackets Shielded	9	Brass Phosphor Bronze	1 (DE E)	Housing/Shell (4-40)
EDAC Inc. 664-009-664-048	2	8.08 mm	0.318 "	Nickel Plated Steel	Polyester Thermoplastic	D-Sub - Stacked	85 °C	-55 °C	3 A	Black	30 Áin	0.76 Ám	Solder	Through Hole Right Angle	Plug Male Pins Receptacle Female Socket	Gold	UL94 V-0	Signal	Board Lock Grounding Indents Mounting Brackets Shielded	9	Brass Phosphor Bronze	1 (DE E)	Housing/Shell (4-40)
EDAC Inc. 664-009-664-044	2	8.08 mm	0.318 "	Nickel Plated Steel	Polyester Thermoplastic	D-Sub - Stacked	85 °C	-55 °C	3 A	Black	30 Áin	0.76 Ám	Solder	Through Hole Right Angle	Plug Male Pins Receptacle Female Socket	Gold	UL94 V-0	Signal	Board Lock Grounding Indents Mounting Brackets Shielded	9	Brass Phosphor Bronze	1 (DE E)	Housing/Shell (Unthreaded)
EDAC Inc. 664-009-364-001	2	8.08 mm	0.318 "	Nickel Plated Steel	Polyester Thermoplastic	D-Sub - Stacked	85 °C	-55 °C	3 A	Black	15 µin	0.38 µm	Solder	Through Hole Right Angle	Plug Male Pins Receptacle Female Socket	Gold	UL94 V-0	Signal	Grounding Indents Shielded	9	Brass Phosphor Bronze	1 (DE E)	Housing/Shell (M3)
EDAC Inc. 664-009-664-033	2	8.08 mm	0.318 "	Nickel Plated Steel	Polyester Thermoplastic	D-Sub - Stacked	85 °C	-55 °C	3 A	Black	30 Áin	0.76 Ám	Solder	Through Hole Right Angle	Plug Male Pins Receptacle Female Socket	Gold	UL94 V-0	Signal	Board Lock Grounding Indents Mounting Brackets Shielded	9	Brass Phosphor Bronze	1 (DE E)	Female Screwlock (4-40) Mating Side
EDAC Inc. 664-009-264-005	2	8.08 mm	0.318 "	Nickel Plated Steel	Polyester Thermoplastic	D-Sub - Stacked	85 °C	-55 °C	3 A	Black			Solder	Through Hole Right Angle	Plug Male Pins Receptacle Female Socket	Gold	UL94 V-0	Signal	Grounding Indents Shielded	9	Brass Phosphor Bronze	1 (DE E)	Housing/Shell (4-40)	Flash
EDAC Inc. 664-009-364-057	2	8.08 mm	0.318 "	Nickel Plated Steel	Polyester Thermoplastic	D-Sub - Stacked	85 °C	-55 °C	3 A	Black	15 µin	0.38 µm	Solder	Through Hole Right Angle	Plug Male Pins Receptacle Female Socket	Gold	UL94 V-0	Signal	Grounding Indents Mounting Brackets Shielded	9	Brass Phosphor Bronze	1 (DE E)	Housing/Shell (Unthreaded)
EDAC Inc. 664-009-664-053	2	8.08 mm	0.318 "	Nickel Plated Steel	Polyester Thermoplastic	D-Sub - Stacked	85 °C	-55 °C	3 A	Black	30 Áin	0.76 Ám	Solder	Through Hole Right Angle	Plug Male Pins Receptacle Female Socket	Gold	UL94 V-0	Signal	Grounding Indents Mounting Brackets Shielded	9	Brass Phosphor Bronze	1 (DE E)	Female Screwlock (4-40) Mating Side
EDAC Inc. 664-009-264-036	2	8.08 mm	0.318 "	Nickel Plated Steel	Polyester Thermoplastic	D-Sub - Stacked	85 °C	-55 °C	3 A	Black			Solder	Through Hole Right Angle	Plug Male Pins Receptacle Female Socket	Gold	UL94 V-0	Signal	Board Lock Grounding Indents Mounting Brackets Shielded	9	Brass Phosphor Bronze	1 (DE E)	Female Screwlock (4-40) Mating Side	Flash
EDAC Inc. 664-009-364-004	2	8.08 mm	0.318 "	Nickel Plated Steel	Polyester Thermoplastic	D-Sub - Stacked	85 °C	-55 °C	3 A	Black	15 µin	0.38 µm	Solder	Through Hole Right Angle	Plug Male Pins Receptacle Female Socket	Gold	UL94 V-0	Signal	Grounding Indents Shielded	9	Brass Phosphor Bronze	1 (DE E)	Housing/Shell (Unthreaded)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 5.55

Description

General part information

664-009 Series

9, 9 Position D-Sub - Stacked Receptacle, Female Socket ; Plug, Male Pins Connector
