664-009 Series

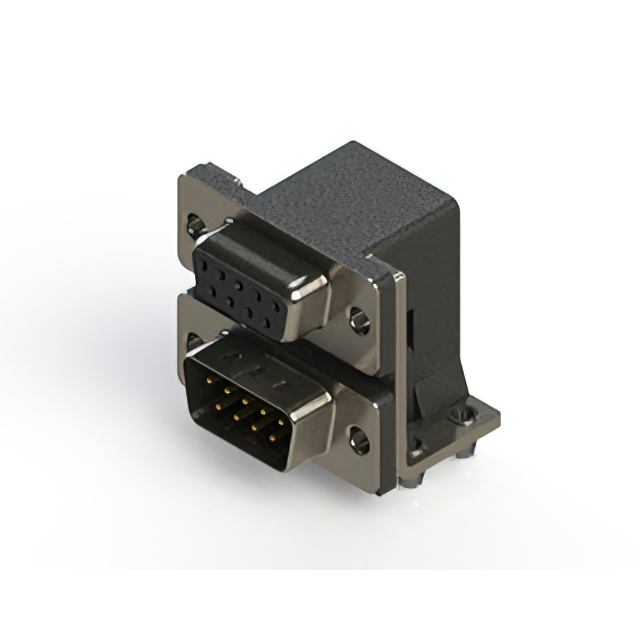

9, 9 Position D-Sub - Stacked Receptacle, Female Socket ; Plug, Male Pins Connector

Technical Specifications

Parameters and characteristics for this part

Specification	664-009-664-044

Backset Spacing	0.318 in
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Plug, Female Socket, Receptacle, Male Pins
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Brass, Phosphor Bronze
Contact Type	Signal
Current Rating (Per Contact)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets, Shielded, Board Lock, Grounding Indents
Finish	Nickel Plated
Flange Feature	Shell (Unthreaded), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Positions	9
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size, Connector Layout	1 (DE, E)
Termination	Solder

664-009 Series

...

Part	Shell Size, Connector Layout	Contact Type	Number of Rows	Flange Feature	Connector Type	Features	Contact Finish	Contact Finish Thickness	Backset Spacing	Material Flammability Rating	Termination	Connector Style	Current Rating (Per Contact)	Number of Positions	Number of Positions	Mounting Type	Shell Material	Finish	Color	Contact Material	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 664-009-364-055	1 (DE E)	Signal	2	Housing Shell (4-40)	Female Socket Male Pins Plug Receptacle	Grounding Indents Mounting Brackets Shielded	Gold	15 µin	0.318 in	UL94 V-0	Solder	D-Sub - Stacked	3 A	9	9	Right Angle Through Hole	Steel	Nickel Plated	Black	Brass Phosphor Bronze	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 664-009-264-052	1 (DE E)	Signal	2	Housing Shell (4-40)	Female Socket Male Pins Plug Receptacle	Grounding Indents Mounting Brackets Shielded	Gold	0	0.318 in	UL94 V-0	Solder	D-Sub - Stacked	3 A	9	9	Right Angle Through Hole	Steel	Nickel Plated	Black	Brass Phosphor Bronze	Polyester Thermoplastic	-55 °C	85 °C	Flash	Flash
EDAC Inc. 664-009-664-001	1 (DE E)	Signal	2	Housing Shell (M3)	Female Socket Male Pins Plug Receptacle	Grounding Indents Shielded	Gold	30 µin	0.318 in	UL94 V-0	Solder	D-Sub - Stacked	3 A	9	9	Right Angle Through Hole	Steel	Nickel Plated	Black	Brass Phosphor Bronze	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 664-009-664-048	1 (DE E)	Signal	2	Housing Shell (4-40)	Female Socket Male Pins Plug Receptacle	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	30 µin	0.318 in	UL94 V-0	Solder	D-Sub - Stacked	3 A	9	9	Right Angle Through Hole	Steel	Nickel Plated	Black	Brass Phosphor Bronze	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 664-009-664-044	1 (DE E)	Signal	2	Housing Shell (Unthreaded)	Female Socket Male Pins Plug Receptacle	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	30 µin	0.318 in	UL94 V-0	Solder	D-Sub - Stacked	3 A	9	9	Right Angle Through Hole	Steel	Nickel Plated	Black	Brass Phosphor Bronze	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 664-009-364-001	1 (DE E)	Signal	2	Housing Shell (M3)	Female Socket Male Pins Plug Receptacle	Grounding Indents Shielded	Gold	15 µin	0.318 in	UL94 V-0	Solder	D-Sub - Stacked	3 A	9	9	Right Angle Through Hole	Steel	Nickel Plated	Black	Brass Phosphor Bronze	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 664-009-664-033	1 (DE E)	Signal	2	Female Screwlock (4-40) Mating Side	Female Socket Male Pins Plug Receptacle	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	30 µin	0.318 in	UL94 V-0	Solder	D-Sub - Stacked	3 A	9	9	Right Angle Through Hole	Steel	Nickel Plated	Black	Brass Phosphor Bronze	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 664-009-364-04A	1 (DE E)	Signal	2	Housing Shell (M3)	Female Socket Male Pins Plug Receptacle	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	15 µin	0.318 in	UL94 V-0	Solder	D-Sub - Stacked	3 A	9	9	Right Angle Through Hole	Steel	Nickel Plated	Black	Brass Phosphor Bronze	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 664-009-264-005	1 (DE E)	Signal	2	Housing Shell (4-40)	Female Socket Male Pins Plug Receptacle	Grounding Indents Shielded	Gold	0	0.318 in	UL94 V-0	Solder	D-Sub - Stacked	3 A	9	9	Right Angle Through Hole	Steel	Nickel Plated	Black	Brass Phosphor Bronze	Polyester Thermoplastic	-55 °C	85 °C	Flash	Flash
EDAC Inc. 664-009-364-057	1 (DE E)	Signal	2	Housing Shell (Unthreaded)	Female Socket Male Pins Plug Receptacle	Grounding Indents Mounting Brackets Shielded	Gold	15 µin	0.318 in	UL94 V-0	Solder	D-Sub - Stacked	3 A	9	9	Right Angle Through Hole	Steel	Nickel Plated	Black	Brass Phosphor Bronze	Polyester Thermoplastic	-55 °C	85 °C
