40-9709HX

Active

Cinch Connectivity Solutions AIM-Cambridge

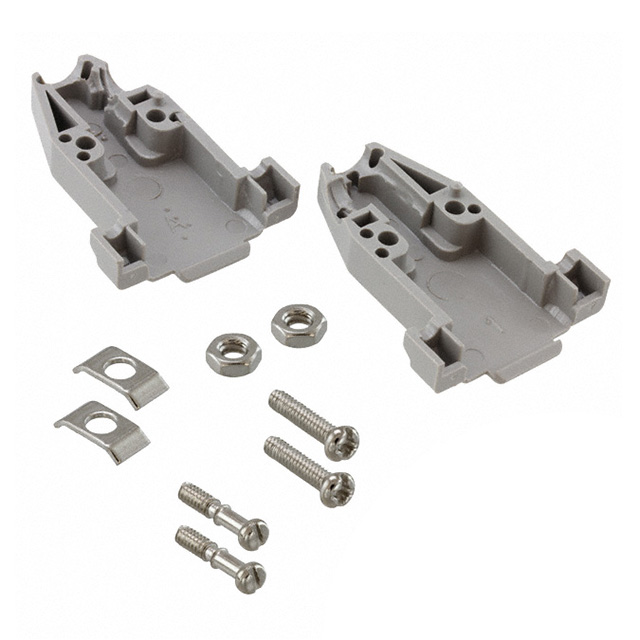

CONN BACKSHELL 9POS 180DEG GRAY

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions AIM-Cambridge

CONN BACKSHELL 9POS 180DEG GRAY

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Two Piece Backshell Connector Gray 180° Unshielded

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	40-9709HX	40-9709 Series

Accessory Type	Two Piece Backshell	Two Piece Backshell
Cable Exit	180 °	180 °
Cable Type	Round	Round
Color	Gray	White, Gray
Compatible D-Sub Size	HD15pos, 9pos	HD15pos, 9pos
Compatible Shell Size	E	E
Connector Style	-	D-Sub
Connector Type	-	Receptacle, Female Sockets
Contact Finish	-	Gold
Contact Material	-	Copper Alloy
Contact Type	-	Signal
Dielectric Material	-	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	-	Housing/Shell (Unthreaded)
Hardware	Assembly Hardware, Strain Relief	Assembly Hardware, Strain Relief
Material	Plastic	Plastic
Material Flammability Rating	-	UL94 V-0
Mounting Type	-	Free Hanging (In-Line)
Number of Positions	9	9
Number of Rows	-	2
Primary Material	Plastic	Plastic
Shell Material, Finish	-	Nickel Plated, Steel
Shell Size, Connector Layout	-	DE, E
Shell Size, Connector Layout	-	1
Shielding	Unshielded	Unshielded

CONN D-SUB RCPT 9POS SLDR CUP

Part	Number of Rows	Shell Material, Finish	Contact Finish	Connector Type	Mounting Type	Number of Positions	Contact Material	Color	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Flange Feature	Dielectric Material	Connector Style	Contact Type	Material Flammability Rating	Accessory Type	Material	Primary Material	Hardware	Compatible D-Sub Size	Cable Type	Cable Exit	Compatible Shell Size	Shielding
Cinch Connectivity Solutions AIM-Cambridge 40-9709S	2	Nickel Plated, Steel	Gold	Receptacle, Female Sockets	Free Hanging (In-Line)	9	Copper Alloy	White	DE, E	1	Housing/Shell (Unthreaded)	Polybutylene Terephthalate (PBT), Glass Filled	D-Sub	Signal	UL94 V-0
Cinch Connectivity Solutions AIM-Cambridge 40-9709HX						9		Gray								Two Piece Backshell	Plastic	Plastic	Assembly Hardware, Strain Relief	9pos, HD15pos	Round	180 °	E	Unshielded
