40-9709S

Active

Cinch Connectivity Solutions AIM-Cambridge

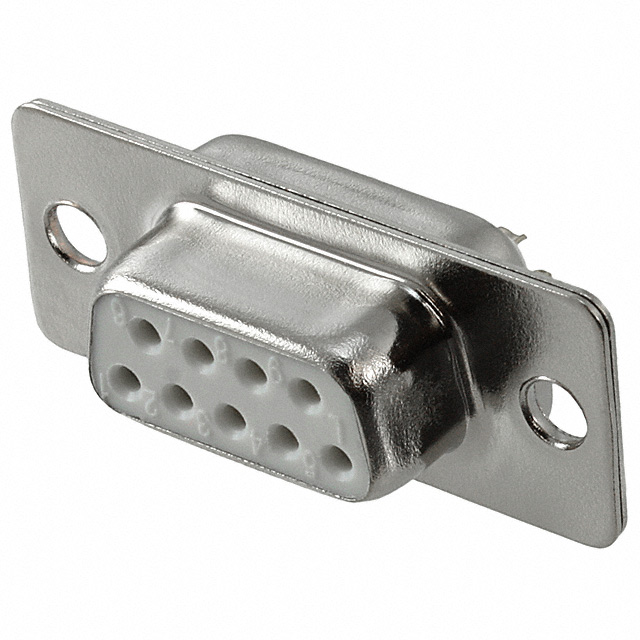

CONN D-SUB RCPT 9POS SLDR CUP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions AIM-Cambridge

CONN D-SUB RCPT 9POS SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	40-9709S	40-9709 Series

Accessory Type	-	Two Piece Backshell
Cable Exit	-	180 °
Cable Type	-	Round
Color	White	White, Gray
Compatible D-Sub Size	-	HD15pos, 9pos
Compatible Shell Size	-	E
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Hardware	-	Assembly Hardware, Strain Relief
Material	-	Plastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	9	9
Number of Rows	2	2
Primary Material	-	Plastic
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E	DE, E
Shell Size, Connector Layout [custom]	1	1
Shielding	-	Unshielded

CONN D-SUB RCPT 9POS SLDR CUP

Part	Number of Rows	Shell Material, Finish	Contact Finish	Connector Type	Mounting Type	Number of Positions	Contact Material	Color	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Flange Feature	Dielectric Material	Connector Style	Contact Type	Material Flammability Rating	Accessory Type	Material	Primary Material	Hardware	Compatible D-Sub Size	Cable Type	Cable Exit	Compatible Shell Size	Shielding
Cinch Connectivity Solutions AIM-Cambridge 40-9709S	2	Nickel Plated, Steel	Gold	Receptacle, Female Sockets	Free Hanging (In-Line)	9	Copper Alloy	White	DE, E	1	Housing/Shell (Unthreaded)	Polybutylene Terephthalate (PBT), Glass Filled	D-Sub	Signal	UL94 V-0
Cinch Connectivity Solutions AIM-Cambridge 40-9709HX						9		Gray								Two Piece Backshell	Plastic	Plastic	Assembly Hardware, Strain Relief	9pos, HD15pos	Round	180 °	E	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Receptacle, Female Sockets Connector
