SK-GEN4-70DCT-CLB
Active4D Systems Pty Ltd
GRAPHIC DISPLAY TFT RGB 7"
Deep-Dive with AI
Search across all available documentation for this part.
SK-GEN4-70DCT-CLB
Active4D Systems Pty Ltd
GRAPHIC DISPLAY TFT RGB 7"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SK-GEN4-70DCT-CLB | SK-GEN4 Series |
|---|---|---|
| Backlight | LED - White | LED - White |
| Controller Type | - | DIABLO16 |
| Diagonal Screen Size | 177.8 mm | 60.96 - 177.8 mm |
| Diagonal Screen Size | 7 in | 2.8 - 7 in |
| Diagonal Screen Size | - | 2.4 - 5 in |
| Diagonal Screen Size | - | 127 mm |
| Display Mode | Transmissive | Transmissive |
| Display Type | TFT - Color | TFT - Color |
| Dot Pitch [x] | 0.19 mm | 0.15 - 0.2 mm |
| Dot Pitch [y] | 0.18 mm | 0.15 - 0.2 mm |
| Dot Pixels | WVGA | WVGA |
| Dot Pixels [x] | 800 | 240 - 800 |
| Dot Pixels [y] | 480 | 272 - 480 |
| Graphics Color | Green, Red, Blue | Green, Red, Blue |
| Interface | Parallel/Serial | Parallel/Serial, SPI, I2C, TTL, Parallel |
| Touchscreen | Capacitive | Resistive, Capacitive |
| Viewing Area | - | 43.2 mm |
| Viewing Area | - | 57.6 mm |
| Viewing Area | - | 64.8 - 73.4 mm |
| Viewing Area [x] | 154 mm | 36.7 - 154 mm |
| Viewing Area [y] | 85.92 mm | 48.6 - 85.92 mm |
SK-GEN4 Series
GRAPHIC DISPLAY TFT RGB 4.3"
| Part | Viewing Area [y] | Viewing Area [x] | Display Mode | Dot Pixels [y] | Dot Pixels [x] | Interface | Dot Pitch [x] | Dot Pitch [y] | Graphics Color | Diagonal Screen Size | Diagonal Screen Size | Display Type | Backlight | Diagonal Screen Size [custom] | Viewing Area [custom] | Viewing Area [custom] | Viewing Area [z] | Touchscreen | Dot Pixels | Diagonal Screen Size [custom] | Controller Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4D Systems Pty Ltd SK-GEN4-43D-CLB-PI | 53.86 mm | 95.04 mm | Transmissive | 272 | 480 | Parallel/Serial | 0.2 mm | 0.2 mm | Blue, Green, Red | 109.22 mm | 4.3 in | TFT - Color | LED - White | ||||||||
4D Systems Pty Ltd SK-GEN4-24D | 49 mm | 36.7 mm | Transmissive | 320 | 240 pixels | I2C, SPI, TTL | 0.15 mm | 0.15 mm | Blue, Green, Red | 60.96 mm | TFT - Color | LED - White | 2.4 in | ||||||||
4D Systems Pty Ltd SK-GEN4-43DT-AR | 53.86 mm | 95.04 mm | Transmissive | 272 | 480 | I2C, SPI, TTL | 0.2 mm | 0.2 mm | Blue, Green, Red | 109.22 mm | 4.3 in | TFT - Color | LED - White | ||||||||
4D Systems Pty Ltd SK-GEN4-28D-AR | Transmissive | 320 | 240 pixels | I2C, SPI, TTL | 0.18 mm | 0.18 mm | Blue, Green, Red | 71.12 mm | 2.8 in | TFT - Color | LED - White | 43.2 mm | 57.6 mm | ||||||||
4D Systems Pty Ltd SK-GEN4-43D-SB-AR | 53.86 mm | 95.04 mm | Transmissive | 272 | 480 | Parallel/Serial | 0.2 mm | 0.2 mm | Blue, Green, Red | 109.22 mm | 4.3 in | TFT - Color | LED - White | ||||||||
4D Systems Pty Ltd SK-GEN4-32D | 48.6 mm | Transmissive | 320 | 240 pixels | Parallel/Serial | 0.2 mm | 0.2 mm | Blue, Green, Red | 81.28 mm | 3.2 in | TFT - Color | LED - White | 64.8 mm | ||||||||
4D Systems Pty Ltd SK-GEN4-35DT | 49 mm | Transmissive | 320 | 240 pixels | I2C, SPI, TTL | 0.15 mm | 0.15 mm | Blue, Green, Red | TFT - Color | LED - White | 73.4 mm | Resistive | |||||||||
4D Systems Pty Ltd SK-GEN4-70DCT-CLB-SB-PI | 85.92 mm | 154 mm | Transmissive | 480 | 800 | Parallel/Serial | 0.19 mm | 0.18 mm | Blue, Green, Red | 177.8 mm | 7 in | TFT - Color | LED - White | Capacitive | WVGA | ||||||
4D Systems Pty Ltd SK-GEN4-50D | 64.8 mm | 108 mm | Transmissive | 480 | 800 | I2C, SPI, TTL | Blue, Green, Red | TFT - Color | LED - White | 5 in | WVGA | 127 mm | |||||||||
4D Systems Pty Ltd SK-GEN4-43DT-SB-PI | 53.86 mm | 95.04 mm | Transmissive | 272 | 480 | Parallel/Serial | 0.2 mm | 0.2 mm | Blue, Green, Red | 109.22 mm | 4.3 in | TFT - Color | LED - White | Resistive |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 214.95 | |
| 10 | $ 179.10 | |||
Description
General part information
SK-GEN4 Series

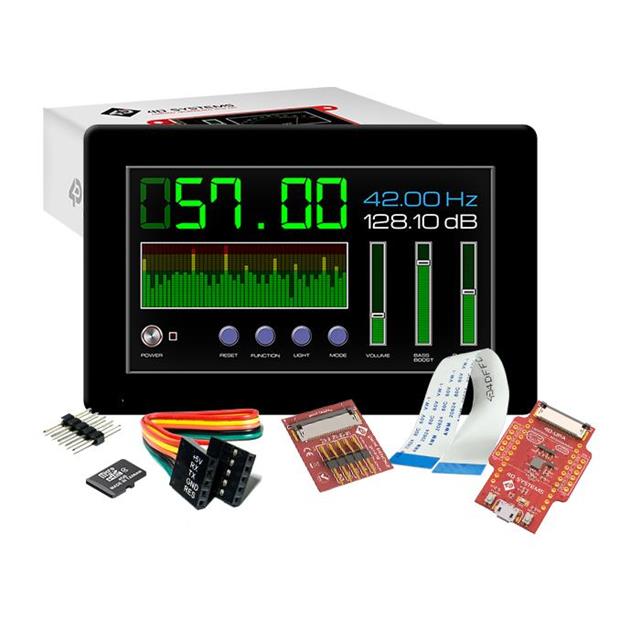

Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel/Serial 7" (177.80mm) 800 x 480 (WVGA)
