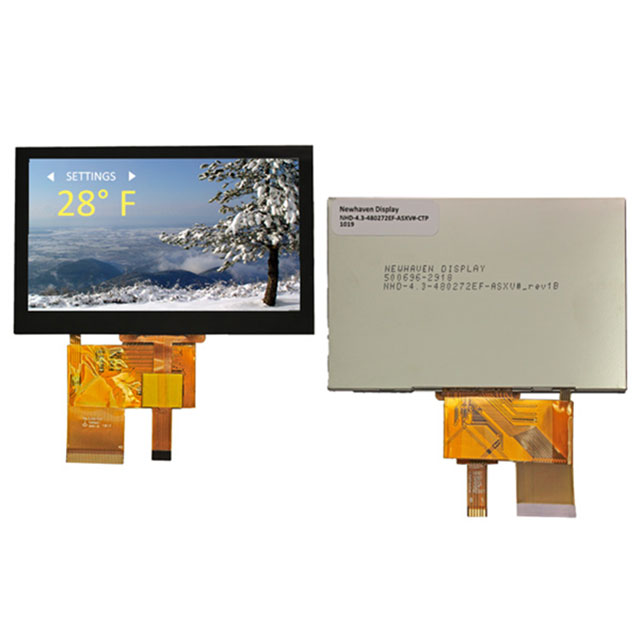

NHD-4.3-480272EF-ASXV#-CTP

Obsolete

Newhaven Display Intl

LCD TFT 480X272 HIGH BRIGHT

NHD-4.3-480272EF-ASXV#-CTP

Obsolete

Newhaven Display Intl

LCD TFT 480X272 HIGH BRIGHT

Description Specifications Series Pricing CAD Documents

Description

General part information

NHD-4.3 Series

Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 24-Bit (RGB) 4.3" (109.22mm) 480 x 272

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-4.3-480272EF-ASXV#-CTP

Backlight Color	White
Backlight Type	LED
Diagonal Screen Size	4.3 in
Display Mode	Transmissive
Display Type	TFT - Color
Dot Pixels (Horizontal)	480 pixels
Dot Pixels (Vertical)	272 pixels
Graphics Color	Red, Green, Blue
Interface	Parallel
Interface Data Width	24 Bit
Touchscreen	Capacitive
Viewing Area Height	53.86 mm
Viewing Area Width	95.04 mm

NHD-4.3 Series

Part	Diagonal Screen Size	Dot Pixels (Horizontal)	Dot Pixels (Vertical)	Display Mode	Backlight Type	Backlight Color	Display Type	Interface Data Width	Interface	Viewing Area Height	Viewing Area Width	Touchscreen	Graphics Color	Dot Pixels (Resolution)	Controller Type	Dot Size Height	Dot Size Width	Dot Pitch Height	Dot Pitch Width	Supplied Contents	Embedded	Utilized IC / Part	Function	Contents	Type	Primary Attributes
Newhaven Display Intl NHD-4.3-480272EF-ASXV#-CTP	4.3 in	480 pixels	272 pixels	Transmissive	LED	White	TFT - Color	24 Bit	Parallel	53.86 mm	95.04 mm	Capacitive	Blue Green Red
Newhaven Display Intl NHD-4.3-480272EF-ASXV#-T	4.3 in	480 pixels	272 pixels	Transmissive	LED	White	TFT - Color	24 Bit	Parallel	57.5 mm	98.7 mm	Resistive	Blue Green Red
Newhaven Display Intl NHD-4.3-480272FT-CSXN-CTP	4.3 in	480 pixels	272 pixels	Transmissive	LED	White	TFT - Color		SPI	54.2 mm	95.44 mm	Capacitive	Blue Green Red	WQVGA	FT813
Newhaven Display Intl NHD-4.3-800480MB-ASXP-CTP	4.3 in	800 pixels	480 pixels	Transmissive	LED	White	IPS (In-Plane Switching) TFT - Color	24 Bit		53.86 mm	95.04 mm	Capacitive	Blue Green Red		EK73002AB5 EK9716BE3
Newhaven Display Intl NHD-4.3-480272MF-ATXI#-CTP-1	4.3 in	480 pixels	272 pixels	Transmissive	LED	White	TFT - Color	24 Bit	Parallel	55.21 mm	96.94 mm	Capacitive	Blue Green Red			0.19 mm	0.17 mm	0.2 mm	0.2 mm
Newhaven Display Intl NHD-4.3-480272EF-ATXL#-CTP	4.3 in	480 pixels	272 pixels	Transmissive	LED	White	TFT - Color	24 Bit	Parallel	53.86 mm	95.04 mm	Capacitive	Blue Green Red		FT5306
Newhaven Display Intl NHD-4.3-480272EF-ATXL#-T	4.3 in	480 pixels	272 pixels	Transmissive	LED	White	TFT - Color	24 Bit	Parallel	57.5 mm	98.7 mm	Resistive	Blue Green Red
Newhaven Display Intl NHD-4.3-800480CF-ASXP-CTP	4.3 in	800 pixels	480 pixels	Transmissive	LED	White	IPS (In-Plane Switching) TFT - Color	24 Bit		54.8 mm	96.1 mm	Capacitive	Blue Green Red		EK73002AB4 EK9716BE3
Newhaven Display Intl NHD-4.3-480272MF-34 CONTROLLER BOARD																				Board(s)	No	SSD1963	LCD Controller	Board	Display	and Character LCD Displays COG Graphic For TFT
Newhaven Display Intl NHD-4.3-480272MB-ASXN-T	4.3 in	480 pixels	272 pixels	Transmissive	LED	White	TFT - Color	24 Bit	Parallel	53.86 mm	95.04 mm	Resistive	Blue Green Red		HX8257-A
