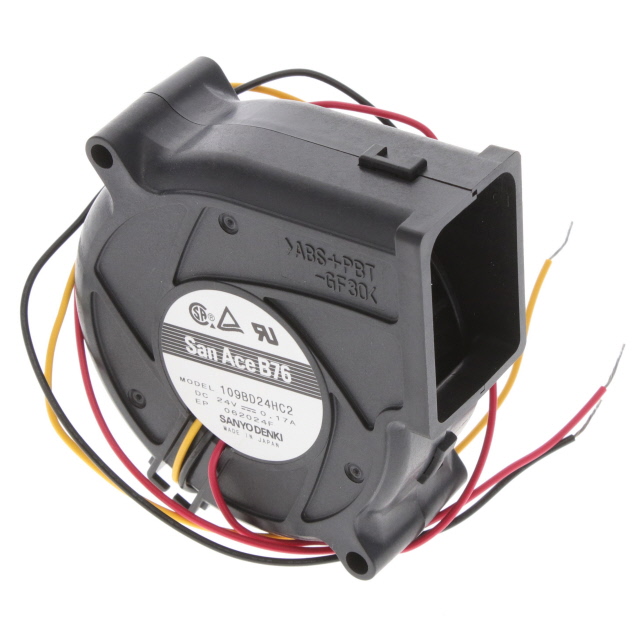

109BD24HC2

Active

Sanyo Denki America Inc.

FAN BLOWER 76X30MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumber System Blower

109BD24HC2

Active

Sanyo Denki America Inc.

FAN BLOWER 76X30MM 24VDC WIRE

Deep-Dive with AI

DocumentsNumber System Blower

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 53.75
		10	$ 49.09
		40	$ 47.22
		80	$ 44.12
		120	$ 40.70

Description

General part information

109BD24 Series

Fan Blower 24VDC Square/Rounded - 76mm L x 75.5mm H Ball 12.7 CFM (0.356m³/min) 3 Wire Leads

Documents

Technical documentation and resources

Number System Blower

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	109BD24HC2	109BD24 Series

Air Flow	-	0.246 - 0.356 mł/min
Air Flow	-	8.8 - 12.7 CFM
Approval Agency	CSA, TUV, UL	CSA, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.17 A	0.17 - 140 mA
Fan Type	Blower	Blower
Features	Speed Sensor (Tach), Locked Rotor Protection	Locked Rotor Sensor, Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	41.5 dB	32.5 - 41.5 dB
Operating Temperature [Max]	60 °C	60 - 70 °C
Operating Temperature [Max]	60 °C	60 - 70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	-	2.4 - 3.36 W
RPM	3000 RPM	2100 - 3000 RPM
Size / Dimension	Square/Rounded	Square/Rounded
Size / Dimension [x]	76 mm	76 mm
Size / Dimension [y]	75.5 mm	75.5 mm
Static Pressure	-	58.8 - 98.1 Pa
Static Pressure	-	0.236 - 0.394 in H2O
Termination	3 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	24 VDC	24 VDC
Weight	0.222 lb	0.222 lb
Weight	100.7 g	100.7 g
Width [y]	30 mm	30 mm

109BD24 Series

FAN BLOWER 76X30MM 24VDC WIRE

Part	Power (Watts)	Air Flow	Air Flow	Approval Agency	Material - Frame	Features	Bearing Type	Voltage - Rated	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	RPM	Noise	Current Rating (Amps)	Lifetime @ Temp.	Weight	Weight	Material - Blade	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Termination
Sanyo Denki America Inc. 109BD24MD2	2.4 W	0.246 mł/min	8.8 CFM	CSA, TUV, UL	Plastic	Locked Rotor Sensor	Ball	24 VDC	30 mm	75.5 mm	76 mm	Square/Rounded	2100 RPM	32.5 dB	100 mA	40000 Hrs	0.222 lb	100.7 g	Plastic	Blower	-20 °C	70 °C	-20 C	70 °C	58.8 Pa	0.236 in H2O	3 Wire Leads
Sanyo Denki America Inc. 109BD24FD2	3.36 W	0.305 mł/min	10.9 CFM	CSA, TUV, UL	Plastic	Locked Rotor Sensor	Ball	24 VDC	30 mm	75.5 mm	76 mm	Square/Rounded	2600 RPM	37 dB	140 mA	40000 Hrs	0.222 lb	100.7 g	Plastic	Blower	-20 °C	70 °C	-20 C	70 °C	98.1 Pa	0.394 in H2O	3 Wire Leads
Sanyo Denki America Inc. 109BD24HC2				CSA, TUV, UL	Plastic	Locked Rotor Protection, Speed Sensor (Tach)	Ball	24 VDC	30 mm	75.5 mm	76 mm	Square/Rounded	3000 RPM	41.5 dB	0.17 A	40000 Hrs	0.222 lb	100.7 g	Plastic	Blower	-20 °C	60 °C	-20 C	60 °C			3 Wire Leads
Sanyo Denki America Inc. 109BD24MC2	2.4 W	0.246 mł/min	8.8 CFM	CSA, TUV, UL	Plastic	Locked Rotor Protection, Speed Sensor (Tach)	Ball	24 VDC	30 mm	75.5 mm	76 mm	Square/Rounded	2100 RPM	32.5 dB	100 mA	40000 Hrs	0.222 lb	100.7 g	Plastic	Blower	-20 °C	70 °C	-20 C	70 °C	58.8 Pa	0.236 in H2O	3 Wire Leads
Sanyo Denki America Inc. 109BD24HD2		0.356 mł/min	12.7 CFM	CSA, TUV, UL	Plastic	Locked Rotor Sensor	Ball	24 VDC	30 mm	75.5 mm	76 mm	Square/Rounded	3000 RPM	41.5 dB	0.17 A	40000 Hrs	0.222 lb	100.7 g	Plastic	Blower	-20 °C	60 °C	-20 C	60 °C			3 Wire Leads
Sanyo Denki America Inc. 109BD24HA2				CSA, TUV, UL	Plastic		Ball	24 VDC	30 mm	75.5 mm	76 mm	Square/Rounded	3000 RPM	41.5 dB	0.17 A	40000 Hrs	0.222 lb	100.7 g	Plastic	Blower	-20 °C	60 °C	-20 C	60 °C			2 Wire Leads
Sanyo Denki America Inc. 109BD24MA2	2.4 W	0.246 mł/min	8.8 CFM	CSA, TUV, UL	Plastic		Ball	24 VDC	30 mm	75.5 mm	76 mm	Square/Rounded	2100 RPM	32.5 dB	100 mA	40000 Hrs	0.222 lb	100.7 g	Plastic	Blower	-20 °C	70 °C	-20 C	70 °C	58.8 Pa	0.236 in H2O	2 Wire Leads
