109BD24MC2

Active

Sanyo Denki America Inc.

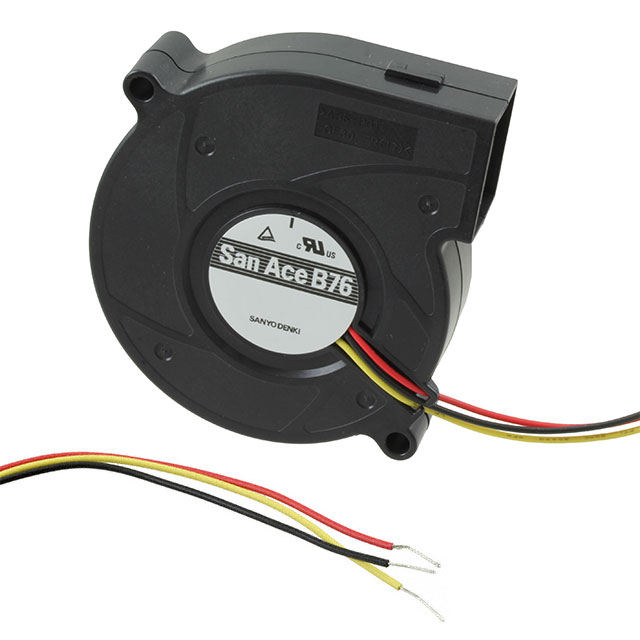

FAN BLOWER 76X30MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumber System Blower

109BD24MC2

Active

Sanyo Denki America Inc.

FAN BLOWER 76X30MM 24VDC WIRE

Deep-Dive with AI

DocumentsNumber System Blower

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	109BD24MC2	109BD24 Series

Air Flow	0.246 mł/min	0.246 - 0.356 mł/min
Air Flow	8.8 CFM	8.8 - 12.7 CFM
Approval Agency	CSA, TUV, UL	CSA, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	100 mA	0.17 - 140 mA
Fan Type	Blower	Blower
Features	Speed Sensor (Tach), Locked Rotor Protection	Locked Rotor Sensor, Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	32.5 dB	32.5 - 41.5 dB
Operating Temperature [Max]	70 °C	60 - 70 °C
Operating Temperature [Max]	70 °C	60 - 70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	2.4 W	2.4 - 3.36 W
RPM	2100 RPM	2100 - 3000 RPM
Size / Dimension	Square/Rounded	Square/Rounded
Size / Dimension [x]	76 mm	76 mm
Size / Dimension [y]	75.5 mm	75.5 mm
Static Pressure	58.8 Pa	58.8 - 98.1 Pa
Static Pressure	0.236 in H2O	0.236 - 0.394 in H2O
Termination	3 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	24 VDC	24 VDC
Weight	0.222 lb	0.222 lb
Weight	100.7 g	100.7 g
Width [y]	30 mm	30 mm

109BD24 Series

FAN BLOWER 76X30MM 24VDC WIRE

Part	Power (Watts)	Air Flow	Air Flow	Approval Agency	Material - Frame	Features	Bearing Type	Voltage - Rated	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	RPM	Noise	Current Rating (Amps)	Lifetime @ Temp.	Weight	Weight	Material - Blade	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Termination
Sanyo Denki America Inc. 109BD24MD2	2.4 W	0.246 mł/min	8.8 CFM	CSA, TUV, UL	Plastic	Locked Rotor Sensor	Ball	24 VDC	30 mm	75.5 mm	76 mm	Square/Rounded	2100 RPM	32.5 dB	100 mA	40000 Hrs	0.222 lb	100.7 g	Plastic	Blower	-20 °C	70 °C	-20 C	70 °C	58.8 Pa	0.236 in H2O	3 Wire Leads
Sanyo Denki America Inc. 109BD24FD2	3.36 W	0.305 mł/min	10.9 CFM	CSA, TUV, UL	Plastic	Locked Rotor Sensor	Ball	24 VDC	30 mm	75.5 mm	76 mm	Square/Rounded	2600 RPM	37 dB	140 mA	40000 Hrs	0.222 lb	100.7 g	Plastic	Blower	-20 °C	70 °C	-20 C	70 °C	98.1 Pa	0.394 in H2O	3 Wire Leads
Sanyo Denki America Inc. 109BD24HC2				CSA, TUV, UL	Plastic	Locked Rotor Protection, Speed Sensor (Tach)	Ball	24 VDC	30 mm	75.5 mm	76 mm	Square/Rounded	3000 RPM	41.5 dB	0.17 A	40000 Hrs	0.222 lb	100.7 g	Plastic	Blower	-20 °C	60 °C	-20 C	60 °C			3 Wire Leads
Sanyo Denki America Inc. 109BD24MC2	2.4 W	0.246 mł/min	8.8 CFM	CSA, TUV, UL	Plastic	Locked Rotor Protection, Speed Sensor (Tach)	Ball	24 VDC	30 mm	75.5 mm	76 mm	Square/Rounded	2100 RPM	32.5 dB	100 mA	40000 Hrs	0.222 lb	100.7 g	Plastic	Blower	-20 °C	70 °C	-20 C	70 °C	58.8 Pa	0.236 in H2O	3 Wire Leads
Sanyo Denki America Inc. 109BD24HD2		0.356 mł/min	12.7 CFM	CSA, TUV, UL	Plastic	Locked Rotor Sensor	Ball	24 VDC	30 mm	75.5 mm	76 mm	Square/Rounded	3000 RPM	41.5 dB	0.17 A	40000 Hrs	0.222 lb	100.7 g	Plastic	Blower	-20 °C	60 °C	-20 C	60 °C			3 Wire Leads
Sanyo Denki America Inc. 109BD24HA2				CSA, TUV, UL	Plastic		Ball	24 VDC	30 mm	75.5 mm	76 mm	Square/Rounded	3000 RPM	41.5 dB	0.17 A	40000 Hrs	0.222 lb	100.7 g	Plastic	Blower	-20 °C	60 °C	-20 C	60 °C			2 Wire Leads
Sanyo Denki America Inc. 109BD24MA2	2.4 W	0.246 mł/min	8.8 CFM	CSA, TUV, UL	Plastic		Ball	24 VDC	30 mm	75.5 mm	76 mm	Square/Rounded	2100 RPM	32.5 dB	100 mA	40000 Hrs	0.222 lb	100.7 g	Plastic	Blower	-20 °C	70 °C	-20 C	70 °C	58.8 Pa	0.236 in H2O	2 Wire Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	40	$ 47.22

Description

General part information

109BD24 Series

Fan Blower 24VDC Square/Rounded - 76mm L x 75.5mm H Ball 8.8 CFM (0.246m³/min) 3 Wire Leads
