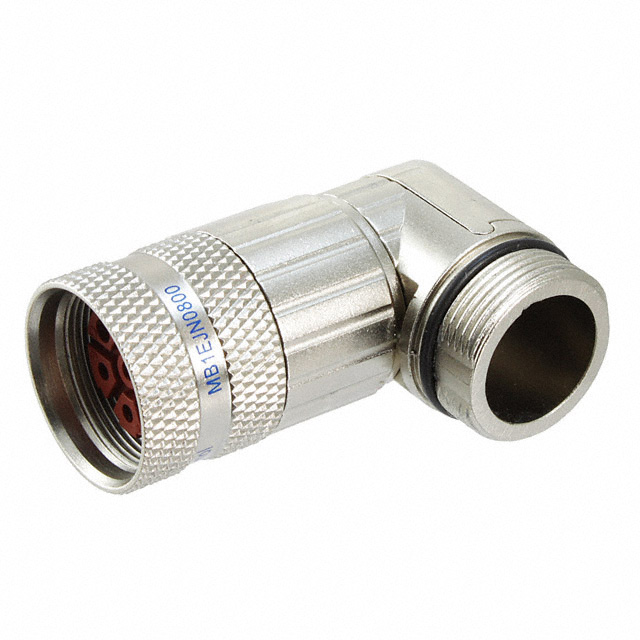

MB1EJN0800
ActiveAmphenol Sine Systems Corp
CONN PLG HSG FMALE 8PS INLINE RA
Deep-Dive with AI
Search across all available documentation for this part.
MB1EJN0800
ActiveAmphenol Sine Systems Corp
CONN PLG HSG FMALE 8PS INLINE RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MB1EJN0800 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 1 mm, 2 mm |
| Contact Type | Crimp |
| Features | Coupling Nut, Rotatable |
| Housing Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Note | Contacts Not Included |
| Number of Positions | PE |
| Number of Positions [custom] | 3 |
| Number of Positions [custom] | 8 |
| Number of Positions [custom] | 4 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M23-8 |
| Shielding | Shielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 38.00 | |
| 10 | $ 32.30 | |||
| 25 | $ 30.28 | |||
| 50 | $ 28.83 | |||
| 100 | $ 27.46 | |||
| 300 | $ 25.41 | |||
Description
General part information
MB1EJN Series
8 (4 + 3 Power + PE) Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Coupling Nut, Rotatable
