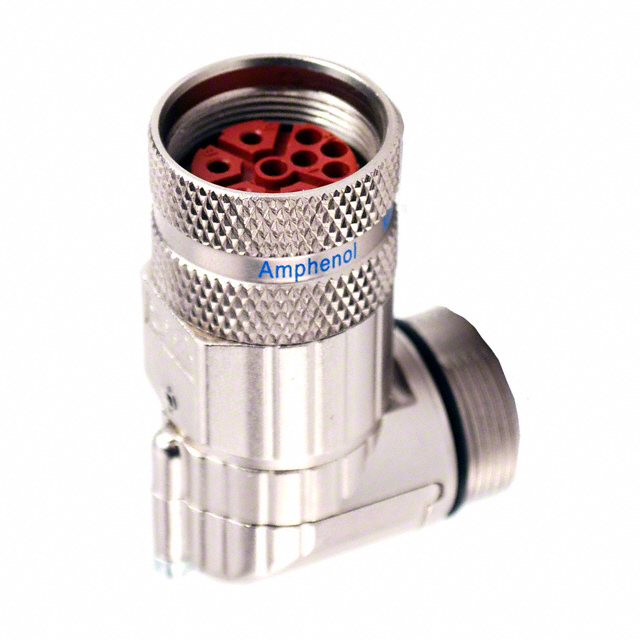

MB1EJN0900

Active

Amphenol Sine Systems Corp

CONN PLG HSG FMALE 9PS INLINE RA

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN PLG HSG FMALE 9PS INLINE RA

Technical Specifications

Parameters and characteristics for this part

Specification	MB1EJN0900

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	2 mm, 1 mm
Contact Type	Crimp
Features	Coupling Nut, Rotatable
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Number of Positions	PE
Number of Positions [custom]	3
Number of Positions [custom]	5
Number of Positions [custom]	9
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-9
Shielding	Shielded
Type	For Female Sockets

Part	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Shell Material	Contact Type	Shielding	Orientation	Features	Note	Type	Material Flammability Rating	Contact Size	Insert Material	Connector Type	Housing Color	Contact Shape	Shell Size - Insert	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Mounting Type	Shell Finish	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Amphenol Sine Systems Corp MB1EJN0800	-20 C	130 °C	IP67 - Dust Tight Waterproof	Zinc Die Cast	Crimp	Shielded	Keyed	Coupling Nut Rotatable	Contacts Not Included	For Female Sockets	UL94 V-0	1 mm 2 mm	Polyamide (PA66) Nylon 6/6	Plug Housing	Silver	Circular	M23-8	3	8	4	PE	Free Hanging (In-Line) Right Angle	Nickel
Amphenol Sine Systems Corp MB1EJN0900	-20 C	130 °C	IP67 - Dust Tight Waterproof	Zinc Die Cast	Crimp	Shielded	Keyed	Coupling Nut Rotatable	Contacts Not Included	For Female Sockets	UL94 V-0	1 mm 2 mm	Polyamide (PA66) Nylon 6/6	Plug Housing	Silver	Circular	M23-9				PE	Free Hanging (In-Line) Right Angle	Nickel	3	5	9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 27.56

General part information

9 (5 + 3 Power + PE) Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Coupling Nut, Rotatable
